- Model Number:33004
- Type:Data Conversion Development Boards and Kits, Voltage Regulator
- Place of Origin:Guangdong, China
- Brand Name:chipskey
- Skype:kevinchipstech
- Whatsapp:+8613715126889

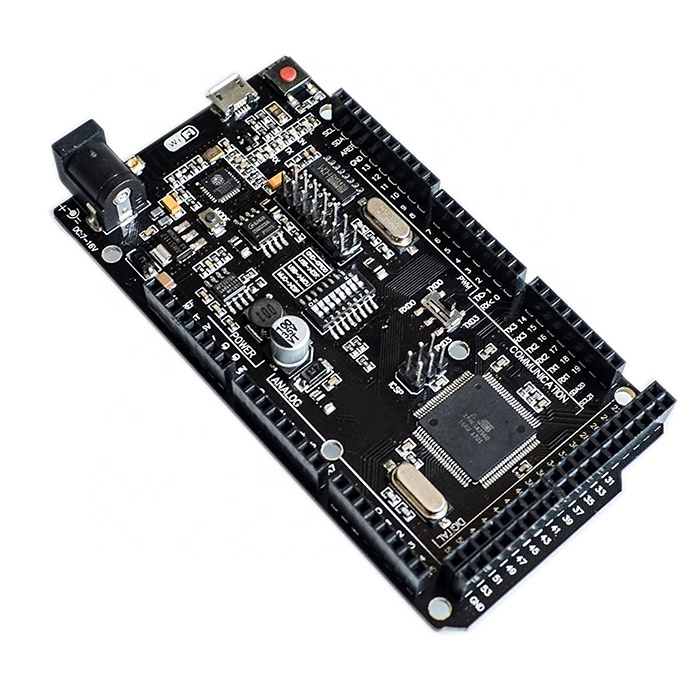

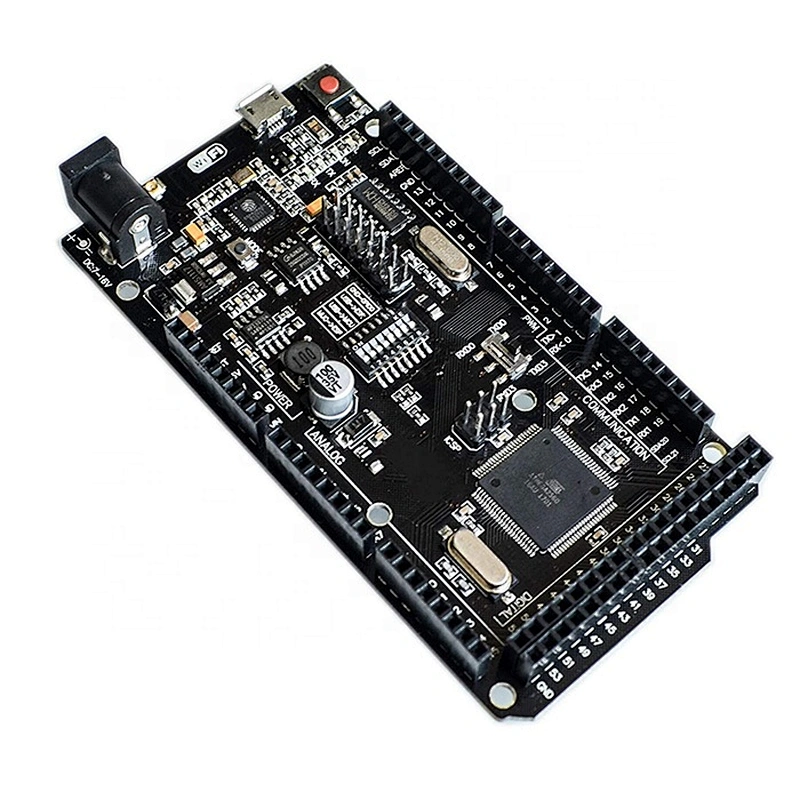

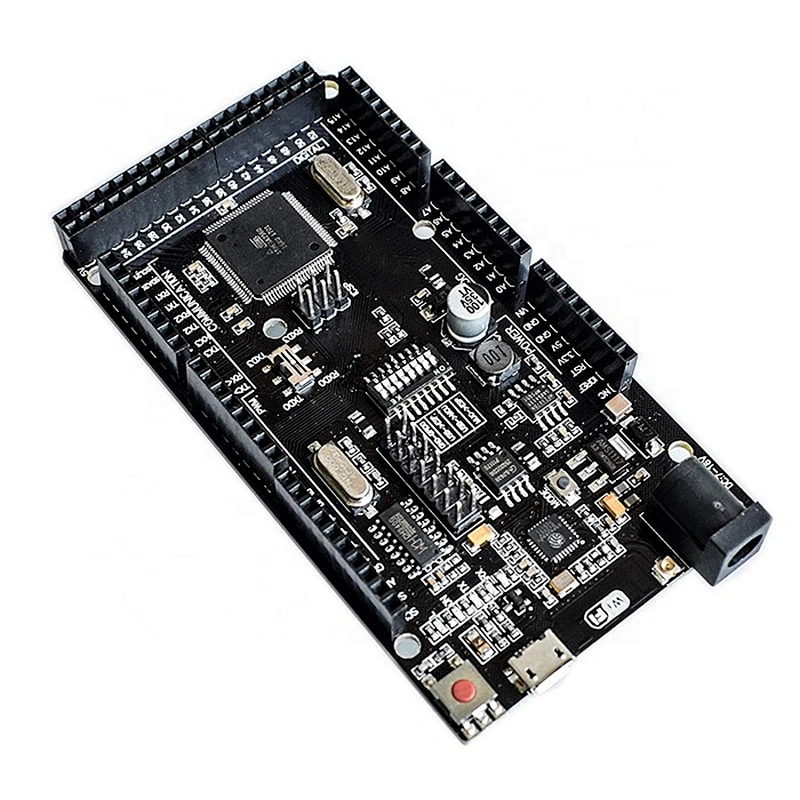

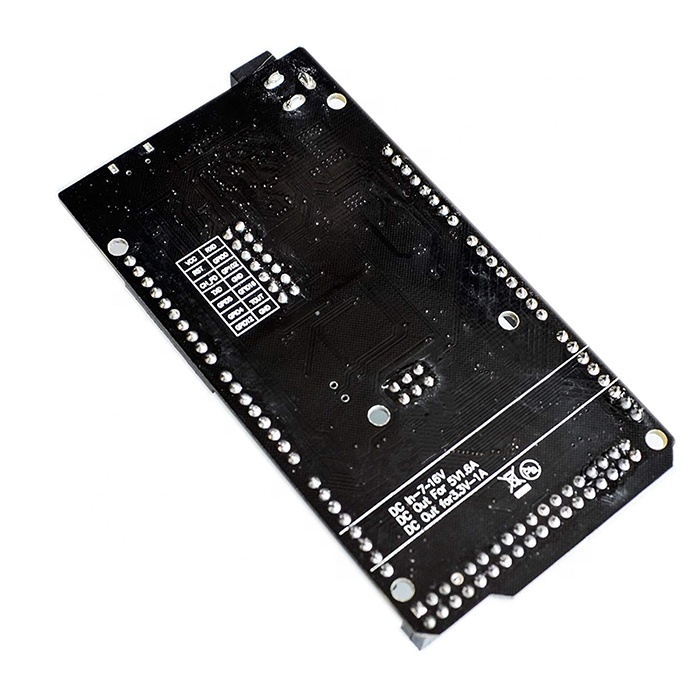

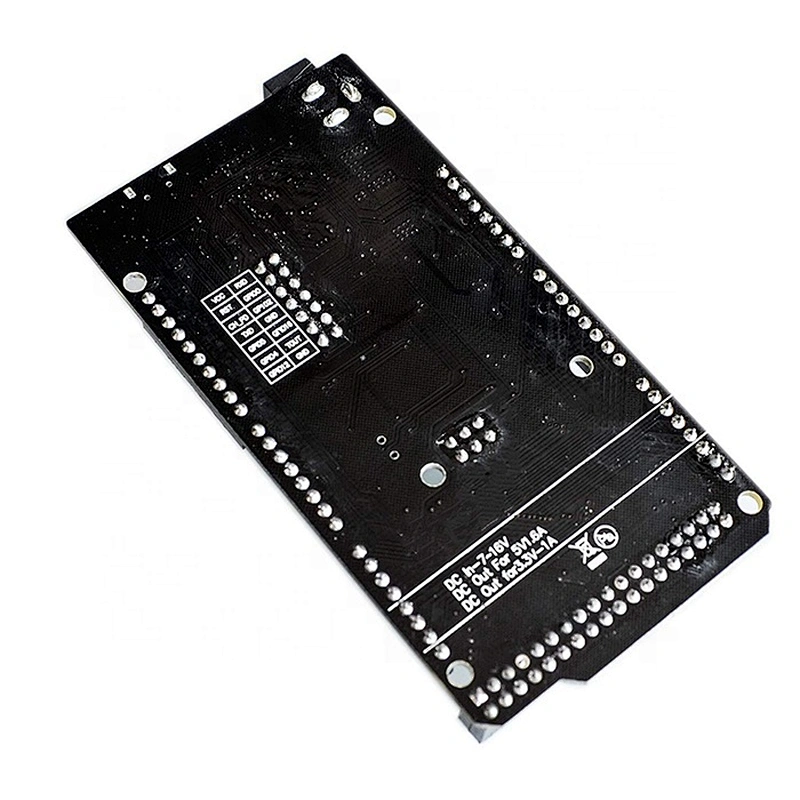

Product details, instructions and instructions, software, please visit the official website of the product. All in one board Integration: mega r3 atmega2560 and WiFi esp8266 have 32MB of memory. All modules can work individually or together. And everyone has their own pin headers. Convenient solutions to develop new projects, UN and WiFi. You can update via USB and firmvare for atmega2560 and for esp8266 sketches. This car has a USB serial converter ch340g. Using this board is very simple. Ancelotti's DIP switch board, connected to the module. For example, a USB interface: USB and atmeg2560, and esp8266, atmega2560 and esp8266
Connection | DIP | ||||||
1 | 2 | 3 | 4 | 5 | 6 | 7 | |
ATmega2560<->ESP8266 | ON | ON | OFF | OFF | OFF | OFF | OFF |
USB<->ATmega2560 | OFF | OFF | ON | ON | OFF | OFF | OFF |
USB<->ESP8266 (Update firmware or sketch) | OFF | OFF | OFF | OFF | ON | ON | ON |
USB<->ESP8266 (communication) | OFF | OFF | OFF | OFF | ON | ON | OFF |
All independent | OFF | OFF | OFF | OFF | OFF | OFF | OFF |
Special solution:
USB<->ATmega328<->ESP8266
DIP | SWITH 2 | |||||||
Connection | 1 | 2 | 3 | 4 | 5 | 6 | 7 | |
USB<->ATmega2560<->ESP8266 | ON | ON | ON | ON | OFF | OFF | OFF | To RXD3/TXD3 |
- · USB converter CH340G connect to RX0/TX0 of ATmega2560
- · ESP8266 connect to RX3/TX3 of ATmega2560
