- Model Number:26255
- Type:Other
- Place of Origin:China
- Part number:26255
- Brand:chipskey

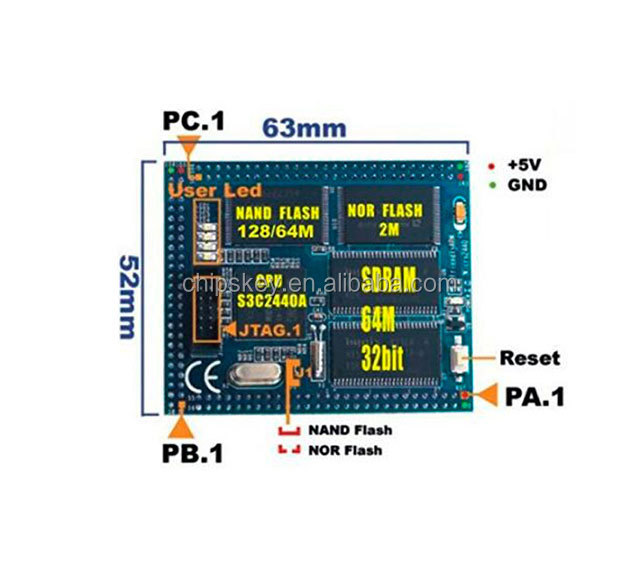

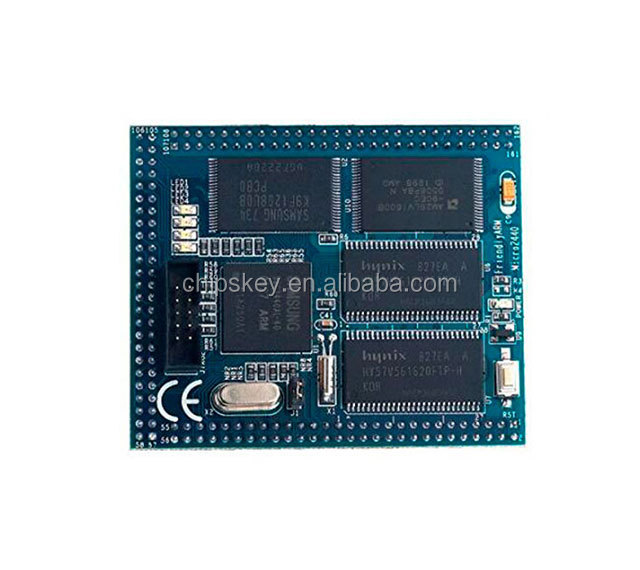

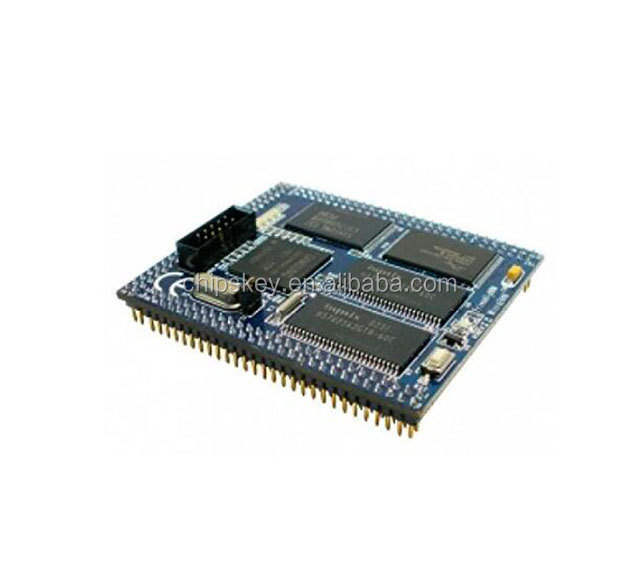

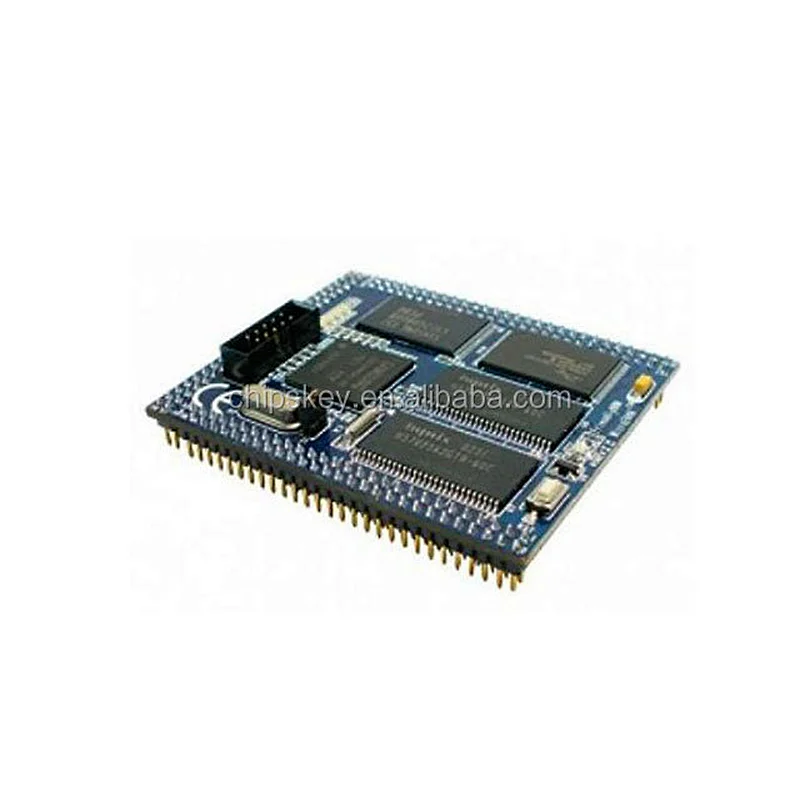

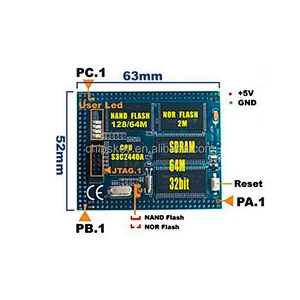

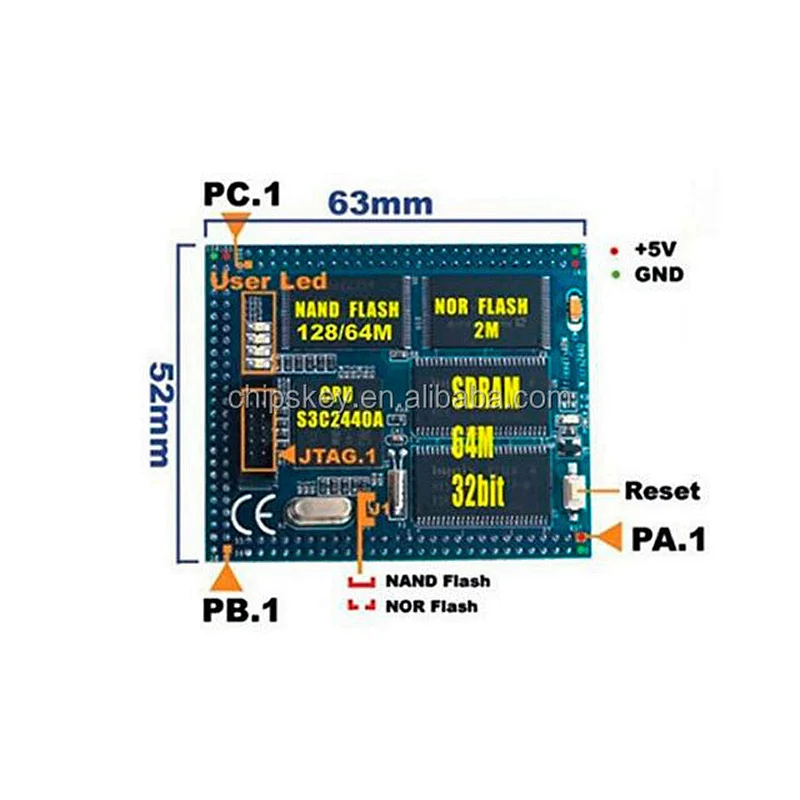

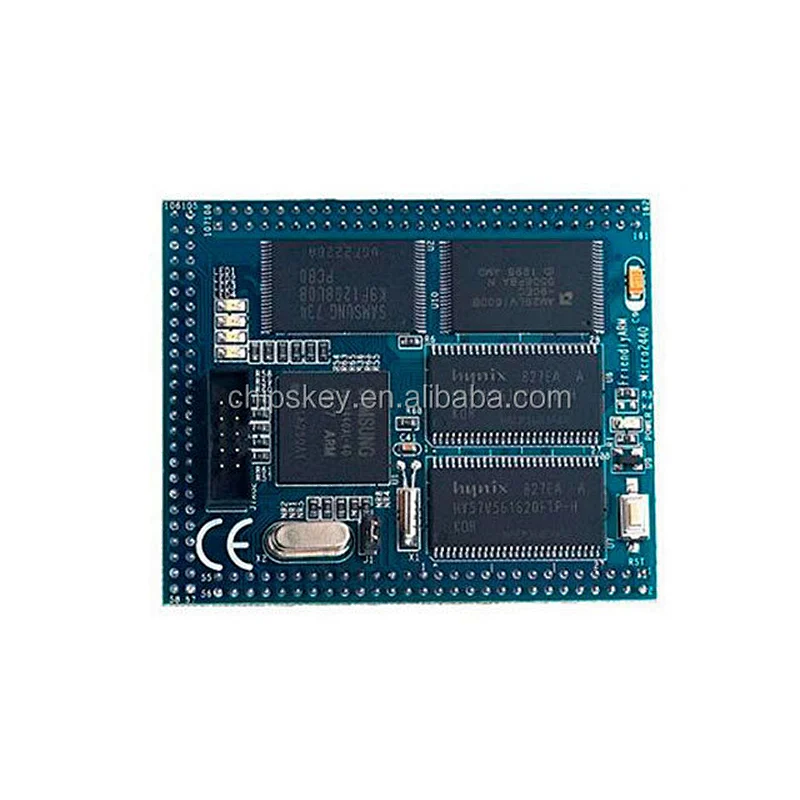

"Micro2440 S3C2440 core board development board AR256M NandFlash
product description
High-speed routing and design of precision components and memory have been completed and verified. For a custom design with your own I / O size selection Dimensions: 63 x 52 mm CPU: 400 MHz S3C2440A 920T (up to 533 MHz) RAM: 64 MB SDRAM, 32-bit bus Flash: 64 MB / 128 MB / 256 MB / 1GB NAND Flash and 2 MB NOR Flash LCD Interface: STN Display: Monochrome, 4 levels of grayscale, 16 levels of grayscale, 256 colors, 4096 colors Max: 1024x768 TFT Display: Monochrome, , 16-level grayscale, 256 colors, 64k colors, true colors Maximum: 1024x768 Touch screen: 4-wire resistance User output: 4x LED expansion connector: (2.0 mm) Debug: 10 pin JTAG And 6, Linux 2.6, Android
"
