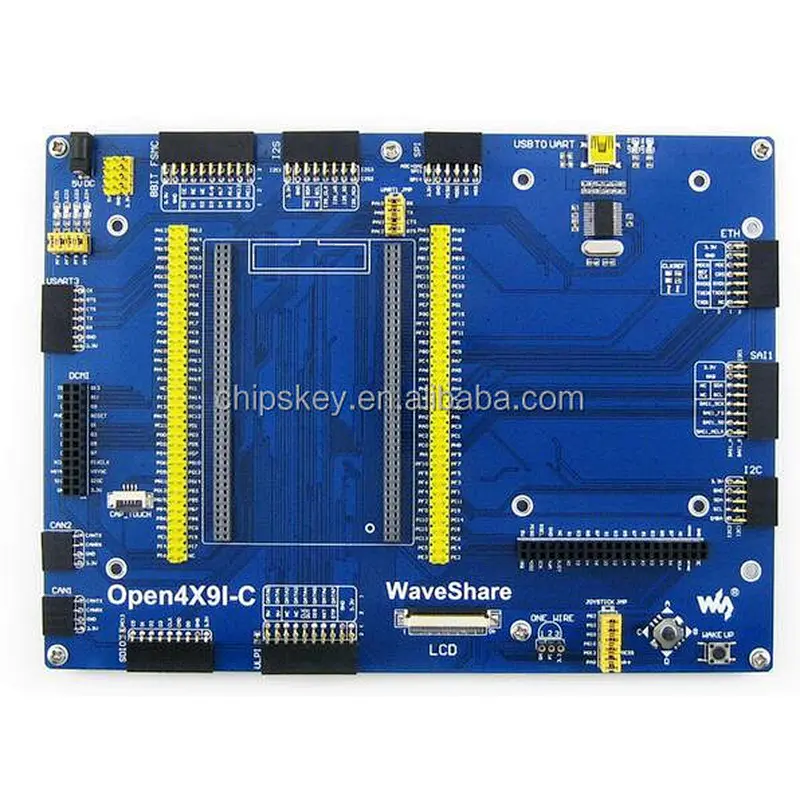

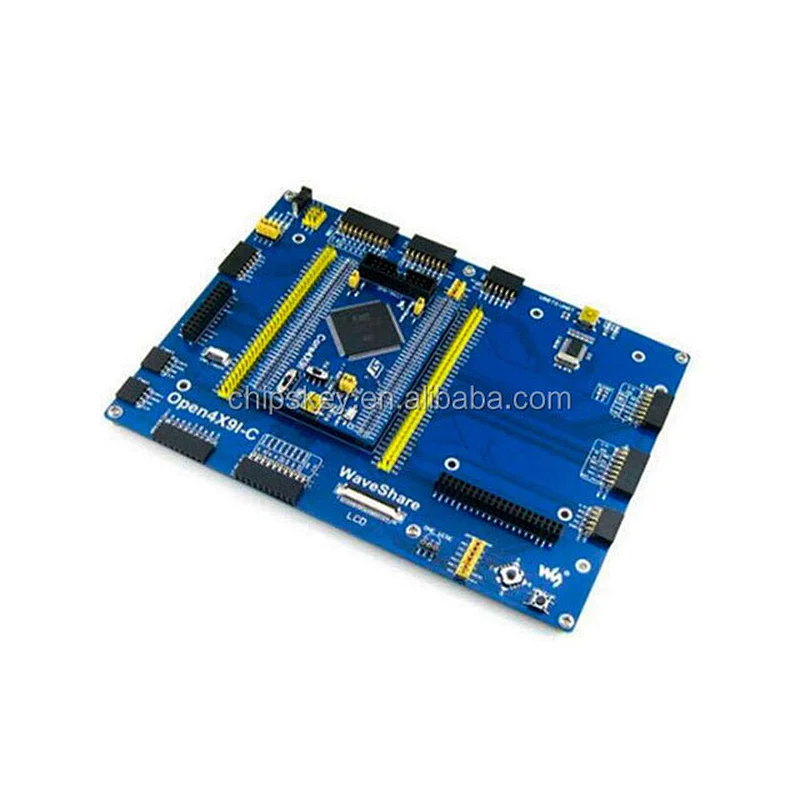

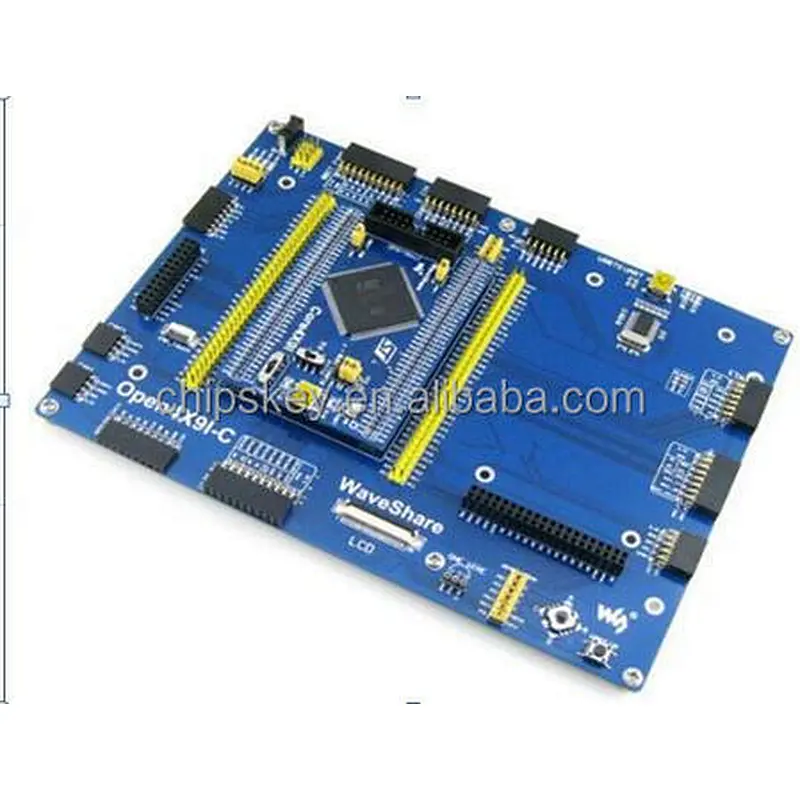

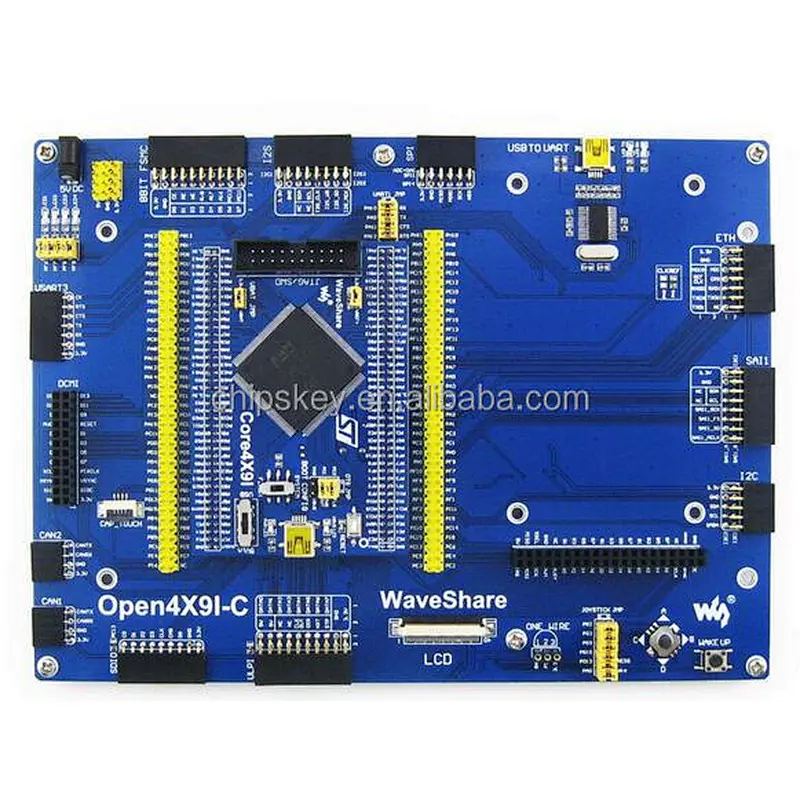

STM32F746G-DISCO 32F746GDISCOVERY STM32F429IGT6 STM32 Development Board Core Board + PL2303 Module

• Model Number:25197
• Type:Other
• Place of Origin:China

STM32F746G-DISCO 32F746GDISCOVERY STM32F429IGT6 STM32 Development Board Core Board + PL2303 Module

[core interface]

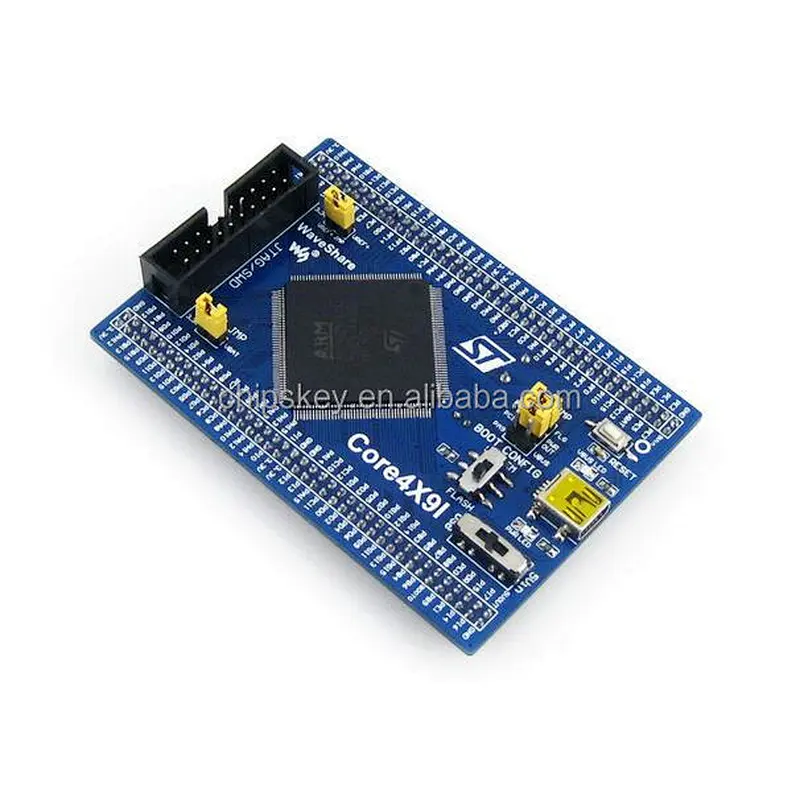

Core board slot

Easy access core board.

USART3 interface

Convenient access to RS232, RS485, TO USB 232 module, etc..

DCMI interface

Convenient access camera module.

Capacitive touch screen interface

Convenient access capacitive touch screen.

CAN2 interface

Convenient access CAN module.

CAN1 interface

Convenient access CAN module.

SDIO interface

Easy access to the SD Micro module, SDIO interface to read and write SD card faster than the speed of the SPI interface.

ULPI interface

Easy access to high speed USB module, etc. (STM32F429I has no built-in HS PHY USB).

LCD interface 1

Easy access to LCD 7inch.

1-WIRE interface

Easy access to 1-WIRE devices (TO-92 package), such as temperature sensor DS18B20, electronic registration code DS2401, etc..

LCD interface 2

Easy access to LCD 4.3inch.

I2C2 / I2C3 interface

Easy access to the I2C module, such as the I/O expansion chip EEPROM, AT24CXX PCF8574 module, etc..

SAI1 interface

Easy access audio module, such as UDA1380 module.

Ethernet interface

Convenient access Ethernet module.

USB interface

After the board USB TO UART PL2303 chip conversion, converted to UART.

SPI1 / SPI2 interface

Easy access to the SPI module, such as AT45DBXX FLASH, SD card, MP3 module, etc..

Easy access to DA, AD module, because the SPI1 reuse AD, DA function.

I2S2 / I2S3 / I2C1 interface

Easy access I2S module, such as audio module.

FMC+SPI 16BIT interface

Convenient access LCD + touch screen module.

[other interface]

DC 5V interface

5V and 3.3V power input and output interface

Commonly used in external power supply, or with the user board for a total of processing.

MCU pin interface

Lead to all I/O, convenient and peripherals for I/O connection.

[chip]

PL2303

USB serial chip.

[device profile]

User LED

Facilitate the I/O output test or display program running status.

TX-LED PL2303 / RX-LED

12MHZ crystal

For the serial port of PL2303 crystal.

rocker

Up, down, left, right, press, a total of 5 states.

UP WAKE button

Can be used as the ordinary button, but also to wake up the STM32 from sleep.

[description] jumper

USB TO UART jumper

User LED jumper

Short Jumper: access to the specified I/O sample program;

Disconnect Jumper: can be modified to use a custom I/O connection line access.

The key to the user / five rocker jumper

Short Jumper: access to the specified I/O sample program;

Disconnect Jumper: can be modified to use a custom I/O connection line access.
