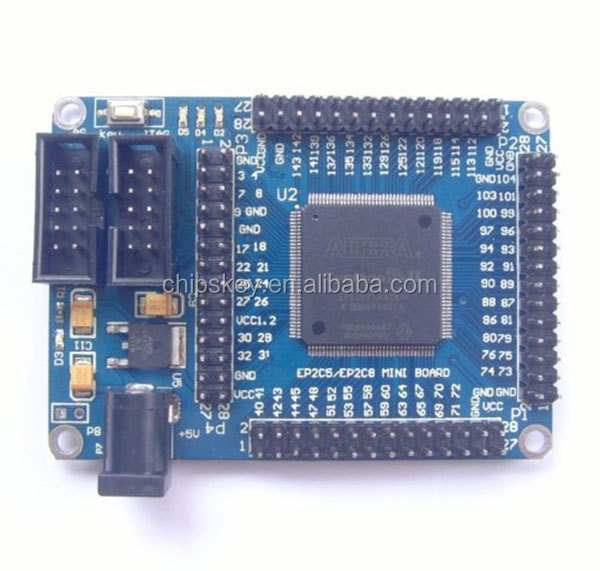

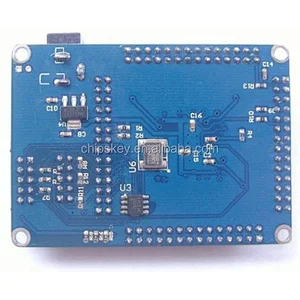

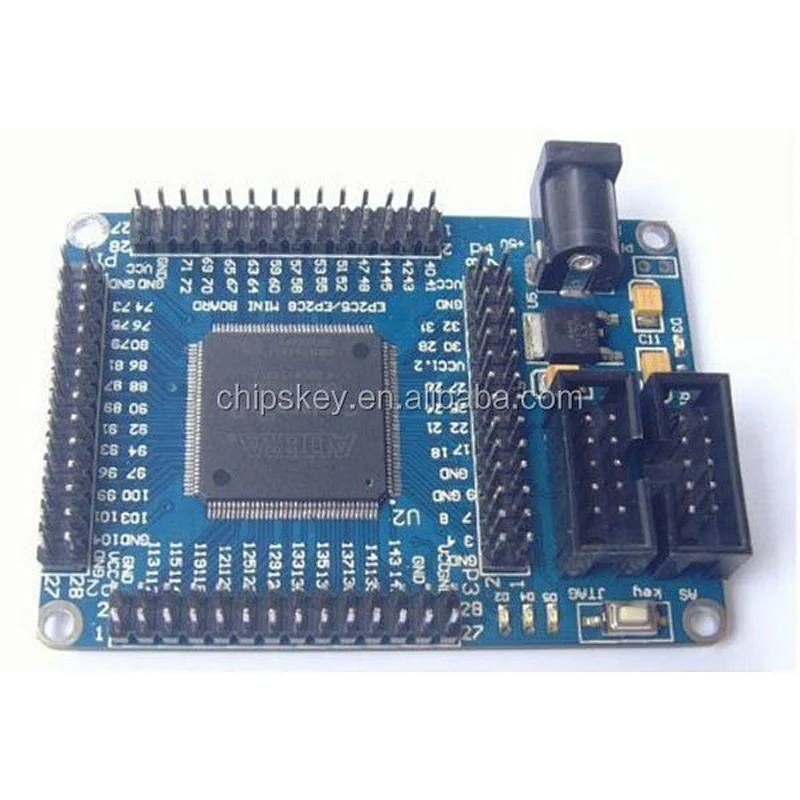

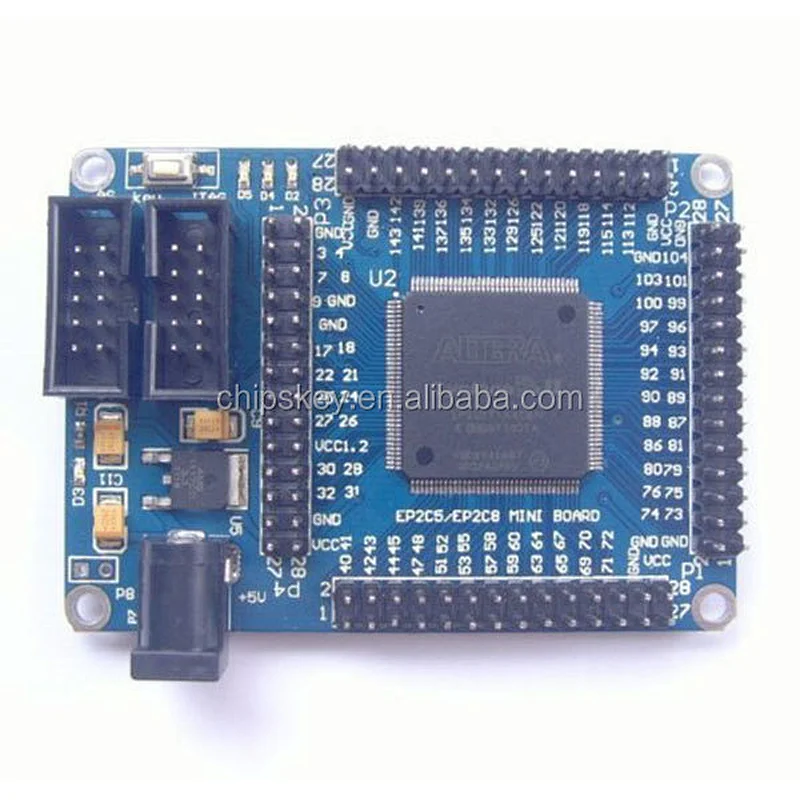

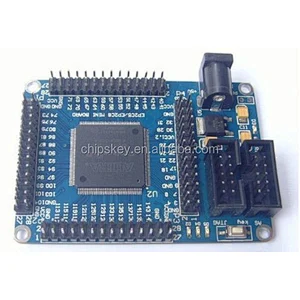

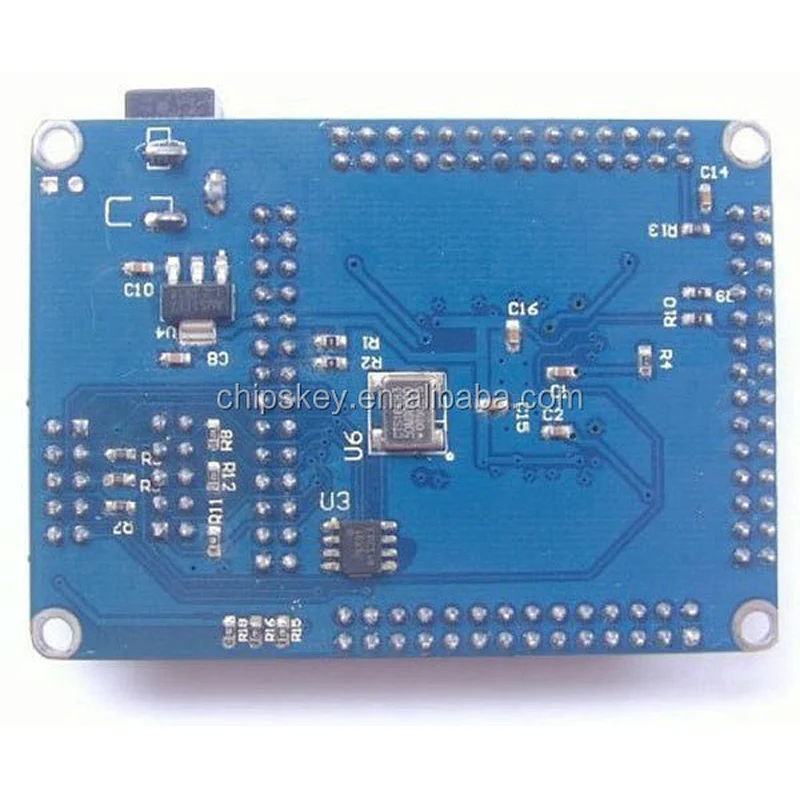

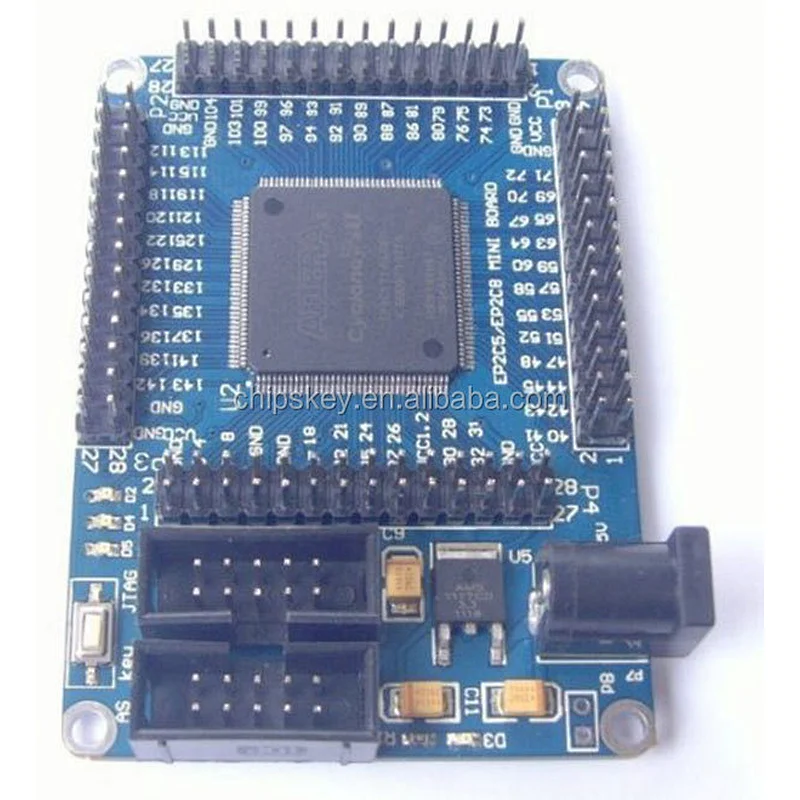

ALTERA FPGA CycloneII EP2C5T144 minimum system, learning board development board

• Model Number:3060
• Type:Embedded System Development Boards and Kits
• Place of Origin:China
• Category:Module
• Part number:3060
• Brand:chipskey

ALTERA FPGA CycloneII EP2C5T144 minimum system, learning board development board

Product description

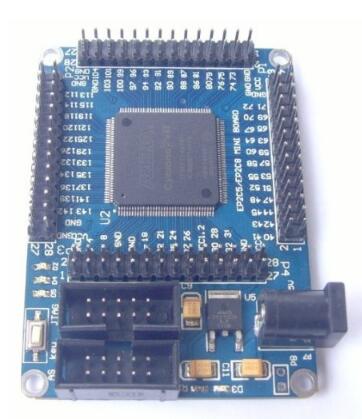

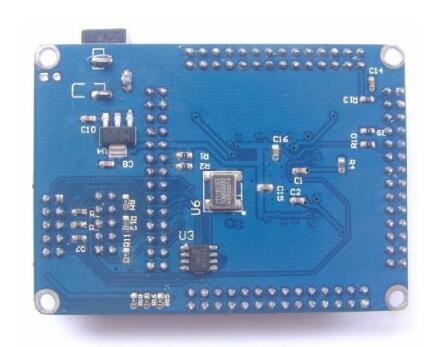

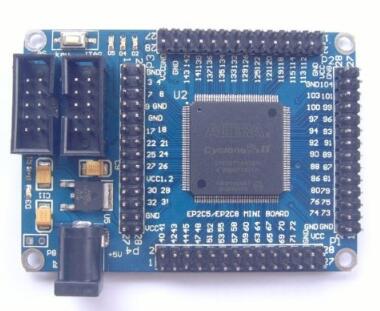

Features: 1. The ALTERA company CycloneIIEP2C5T144 chip as the core minimum system, the FPGA is easily embedded into the practical application of the system Complete from simple logic control, data acquisition, signal processing, and mathematical calculations 3 core board FPGA chip pin all leads directly to the board plugged into the application board, 5V power supply on the board can be introduced through the outlet, and also by the introduction of front row 4 very compact size: 6 (cm) * 8 (cm) Hardware configuration: 1. Board EP2C5T144 chip 2. The the configuration EPROM chip EPCS4, size is 4Mbit 3. Onboard 50M active patch crystals (crystal in the back of the board) Power supply with the big mouth power socket, single 5V power supply 5 panel power indicator and reset switch Board 3 SMD LED, LED test can do experiments, more experiments using lead 7 all IO ports and clock pin Pin leads through these interfaces can be extended to any memory and peripherals 8 board tantalum capacitor to do high-quality power supply filtering 9. Support NiosII embedded CPU development Shipping list: EP2C5T144 core board x 1 block
