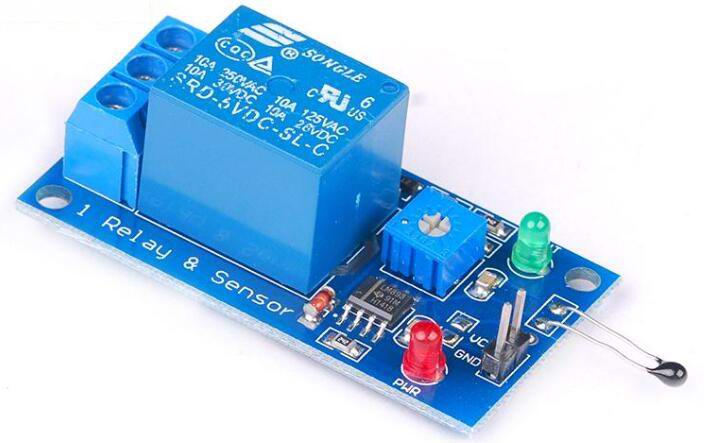

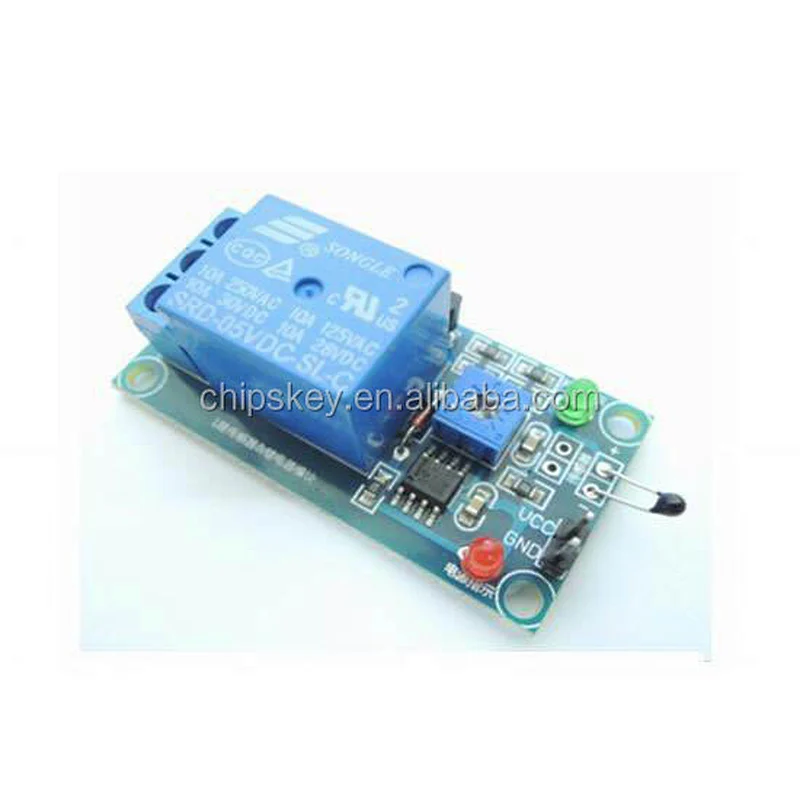

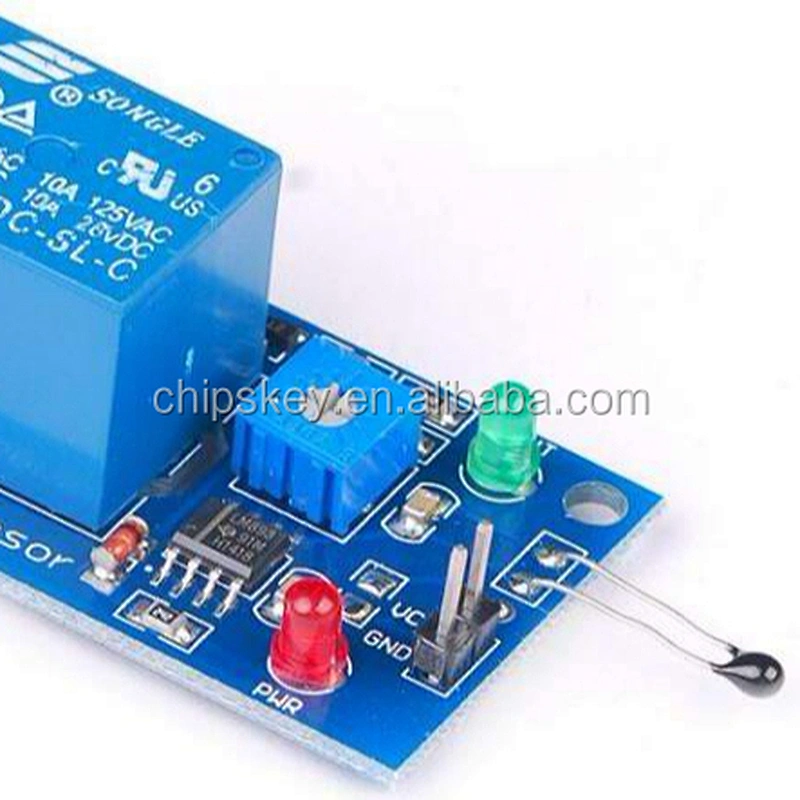

thermistor temperature senso rmodule

• Model Number:2014
• Type:Sensor Development Boards and Kits
• Place of Origin:China
• Brand:Chipskey
• Part number:2014
• Category:Module

thermistor temperature senso rmodule

Module Features:
1, automatic control of the temperature, lower than the temperature start, or higher than the temperature start, select the output terminal is normally open is higher than the set temperature start, then close is below the set temperature start;
2, the comparator output direct drive relay, can be accessed 220V AC or other equipment;
3, with the potentiometer to adjust the temperature;
4, the sensor interface can be equipped with pin, plus the lead of the thermal sensor;
5, Dimensions: 50x26mm, thickness 19mm, with 4 3mm fixed bolt holes, easy to install.

Electrical parameters:
Supply voltage: 5VDC

Current: greater than 150mA
Load: 250V 10A AC or 30V 10A DC

Module instructions:
1, the thermistor module is the most sensitive to ambient temperature, generally used to detect the temperature of the surrounding environment, replace the waterproof type heat sensor can detect water temperature.
2, the module in the ambient temperature exceeds the set threshold, the relay pull, the common side and normally open end, when the external ambient temperature is below the set threshold, the relay is off, the common end and normally closed end;
3, the common, normally open, normally closed three ports is equivalent to a dual control switch, the relay coil has electricity, the common and often open at the beginning, no electricity, the common and normally closed end conduction;
