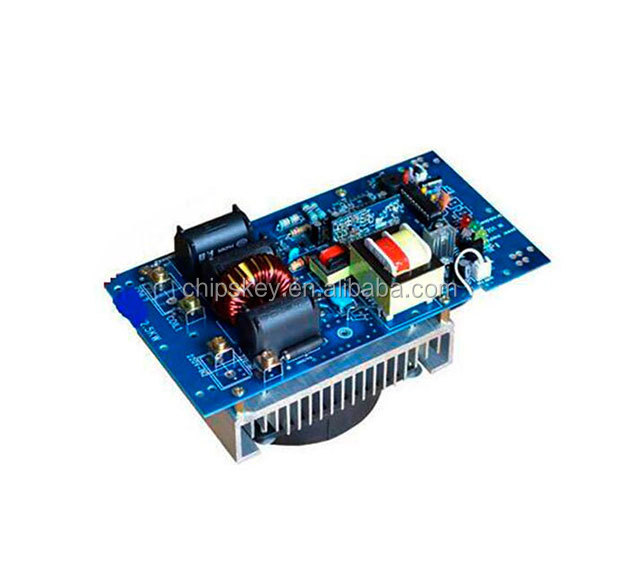

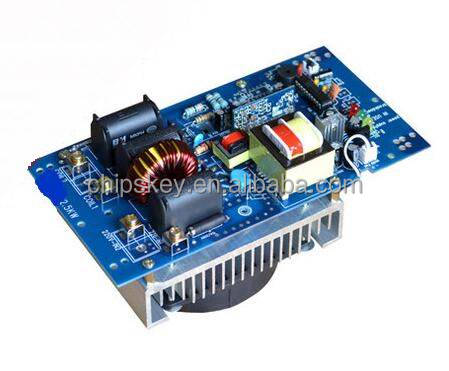

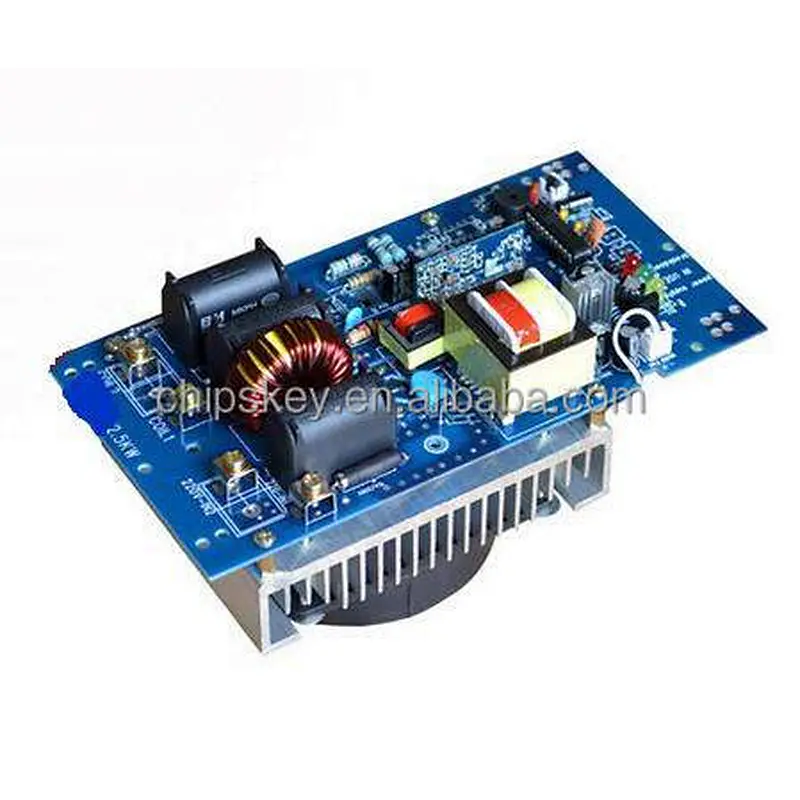

- Model Number:27132
- Place of Origin:Guangdong, China
- Brand Name:Chipskey
- SKU:27132
1: Dimensions: 194 * 102 * 90 (L * W * H)
2: Operating voltage: 220V Current 10-11A
3: power (adjustable): 2100W-2500W
4: Load inductance: 130-140uH (measured with Victory's BICTOR6243 + Inductance Meter)
5: Conversion efficiency>90%
6: Operating frequency: 20-25kHZ
7: Operating temperature: -10 degrees to +50 degrees
8: work: continuous heating
9: wave protection - + 1500V
10: anti-clutter interference: 4000V heating body,
11: induction coil to the heating body installation distance of 15-20mm (insulation cotton pressed with the thickness of the epoxy board)
12; multiple sets of coils and around the same heating element, the distance between the coil is greater than 6 cm,
13: 4 square line, about the effective length of 12-14 meters, generally with 13.5-14 meters inductance is just a parameter, in fact, to measure the line current, into the line current 10-11A
And then the inductance table (victory card 6243 +) measured input current, whether the rated input current, if not through the potentiometer clockwise adjustment, adjust the attention, if the current display value becomes smaller, can not be adjusted, It may be too much inductance, the need to reduce the amount of inductance. (Inductance is reduced, is to reduce the number of turns, into the line current, increase the number of turns.) Second, the wiring instructions
1, three lights, as"power light","work lights","fault lights"lights. Normal operation"power light","work light"in the light."Fault light"lights off. The"fault light"lamp is flashing when the circuit is faulty.
2, power 220V connected to the"then 220V AC"on the pillars, regardless of the line of fire can easily access the line.
3, the coil connected to the"then the ends of the electromagnetic coil,"the two terminals, the screws to tighten.
4, the board factory set to power supply that can work, then"switch control"socket mouth has a short line (black) to short the socket. You can also gently remove the"switch control"socket on the short circuit (black), will be a two-core line of the end of a plug into the"switch control"socket, the other end of the two plugs connected to the thermostat The normally open two contacts, can be connected to try to use
