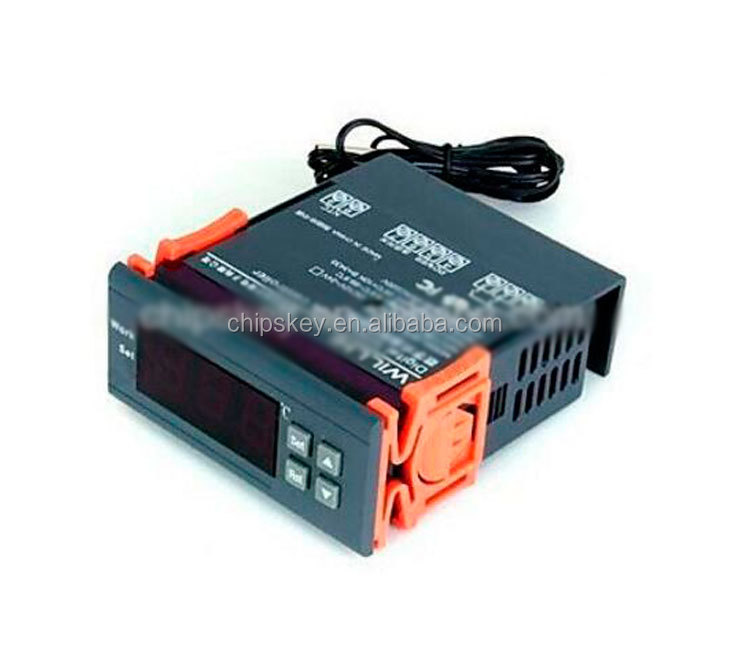

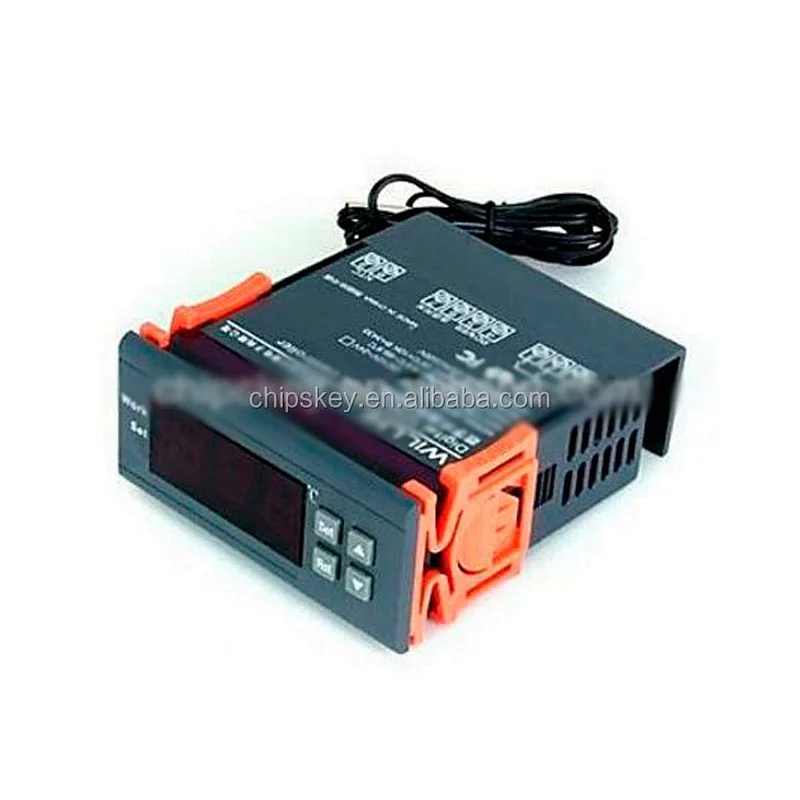

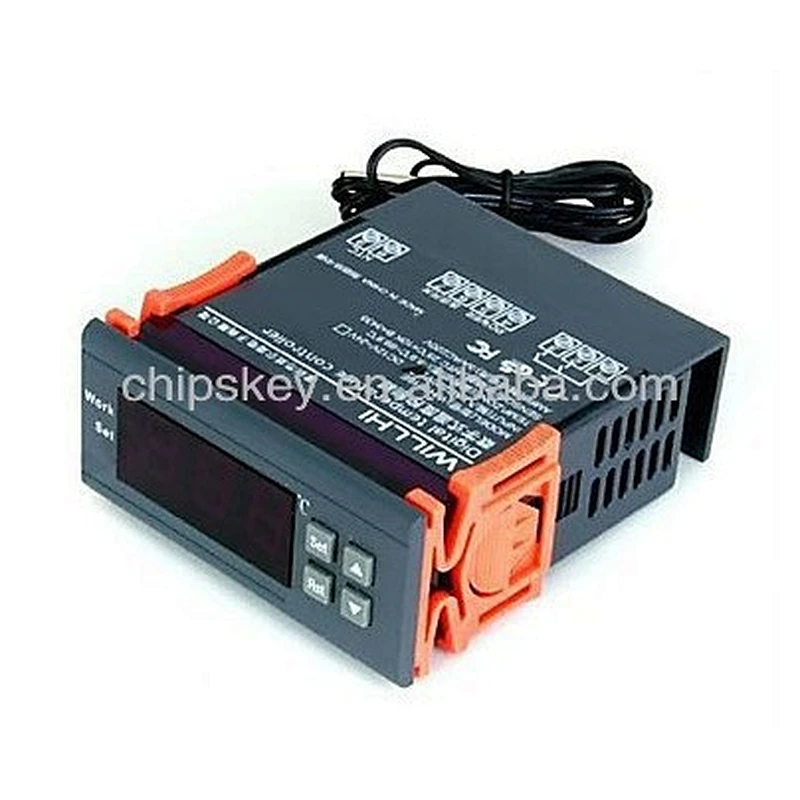

12V/24V/110V/220V LCD Digital Thermostat Temperature Controller Switch WH7016X delay shutdown functions







Features:

0-999 minute delay after the thermostat turns off the output function,

Digital temperature controller, -50 °C to 110 °C temperature measurement and control,

0.1 degree resolution, a degree of control accuracy,

Compatible with cooling and heating control,

Adjustable hysteresis,

Limit setting function on temperature, factory parameters locking function

Down with the data storage function,

Standard AC220V power supply, optional AC110V or DC12V or DC24V power supply, please indicate the time of purchase.

Relay shock current 5A/220V

Standard one meter waterproof metal probe, probe or optional plastic spiral mosquito probe., Or 3 meters waterproof metal probe

3th electrical performance:
Temperature measurement range: -50 °C ~ 110 °C
Temperature control range: -50 °C ~ 110 °C
Temperature measurement error: ± 0.5 °C
Sensor Type: NTC (10K/3435)
Control accuracy: 1 °C
Operating voltage: AC220V
Current: MAX200MA
Relay contact current: AC 5A/220V
Data Retention: Yes
Operating temperature: 0 °C ~ 50 °C
Storage temperature: -10 °C ~ 60 °C
