- Model Number:5013
- Place of Origin:Guangdong, China
- Brand Name:Chipskey
- Part number:5013
- Brand:chipskey
- Category:Module
Product Features
Working voltage: 3.3V-5V
VCC for Positive Supply 3.3-5V GND Negative DO TTL Switch Signal Output
product description
Module Features:

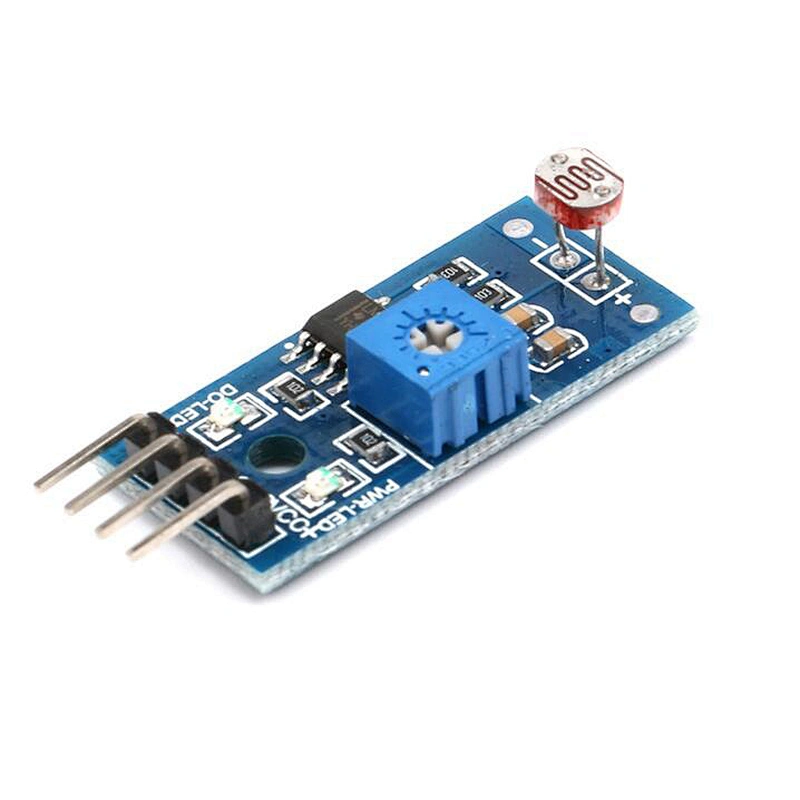

Sensitive photosensitive resistance sensor
Comparator output signal is clear, the waveform drive capacity better than 15mA.
Adjustable potentiometer to detect light intensity adjustable
Working voltage: 3.3V-5V
Output format: digital switch output (0,1)
With fixed bolt holes for easy installation

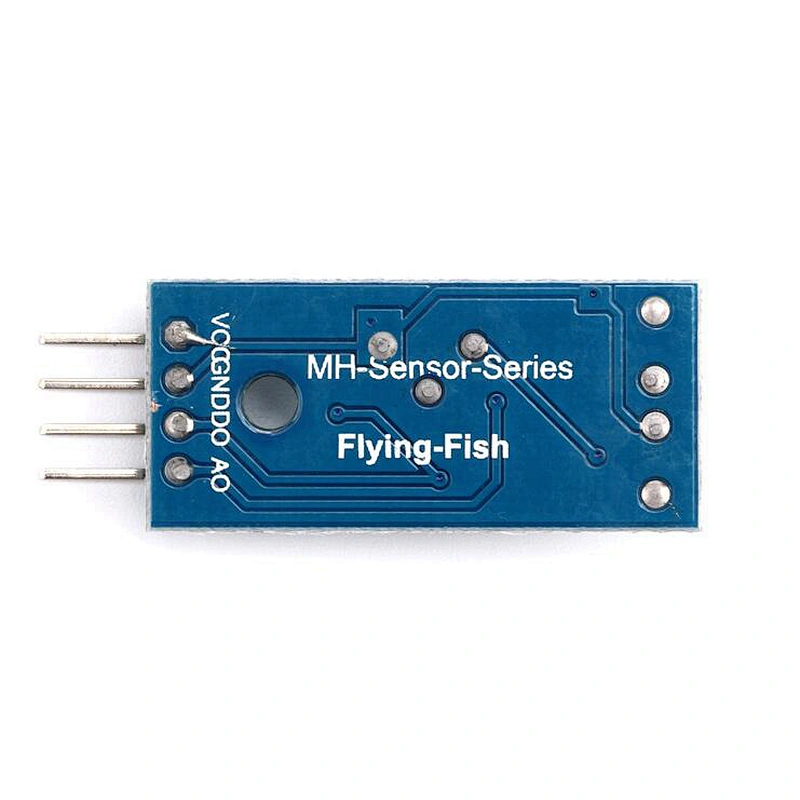

Small PCB board size: 3.2cm x 1.4cm

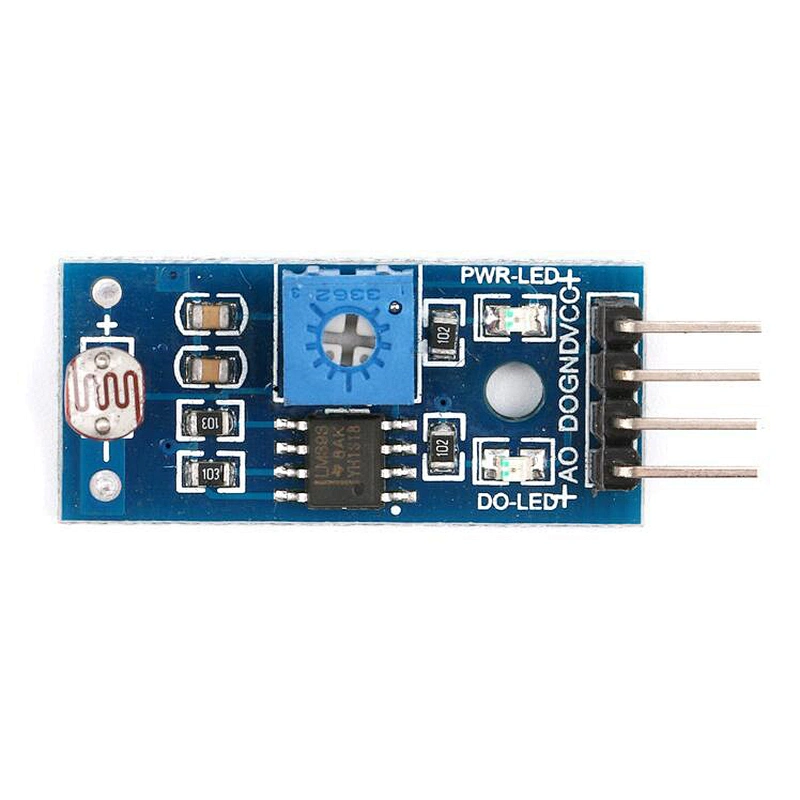

Use a wide woking voltage range LM393 comparator
Applications: detection of light intensity, light intensity sensor, smart car searchlight module
Module Description
Photoresistor module is the most sensitive to ambient light, generally used for testing
Ambient light brightness triggers microcontroller or relay module;
When the ambient light intensity does not reach the threshold, the module DO side output high
, Ambient light level exceeds the set threshold, DO terminal output low;
DO output can be directly connected to the microcontroller through the microcontroller to detect
High and low, thus detecting changes in ambient light brightness;
DO output can directly drive the relay module, which can be composed of light control switch.
Product wiring instructions:
For positive supply of VCC 3.3-5V power supply
GND is negative
DO TTL switch signal output
