- Model Number:28078
- Place of Origin:Guangdong, China
- Brand Name:Chipskey
- Delivery Time:24hours
- Quality:New&Original
- Application:Great for DIY project
- SKU:28078
- Stock:In Stock ,Can Ship out Immedicate

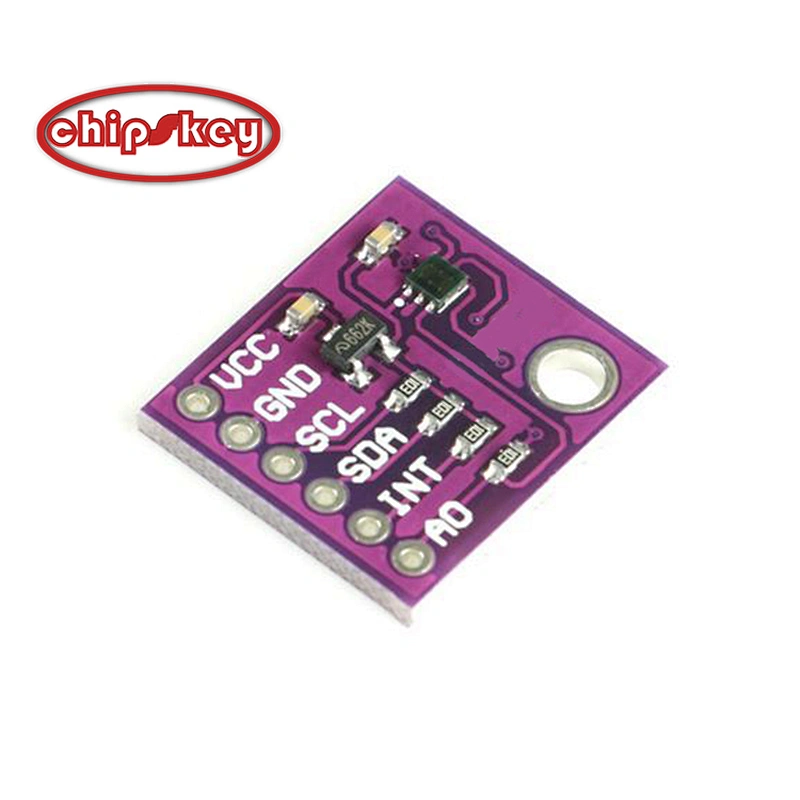

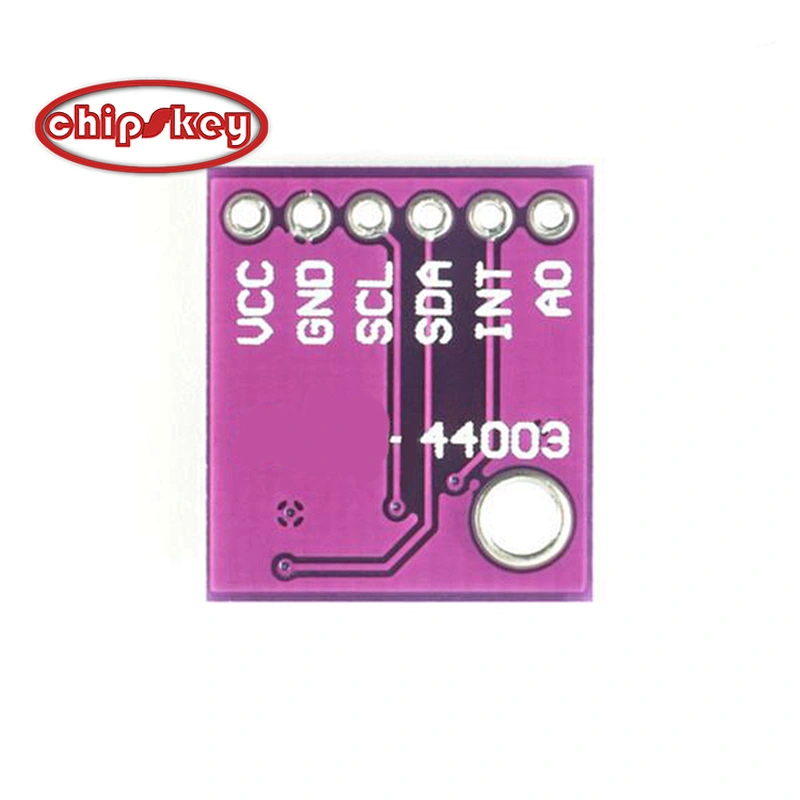

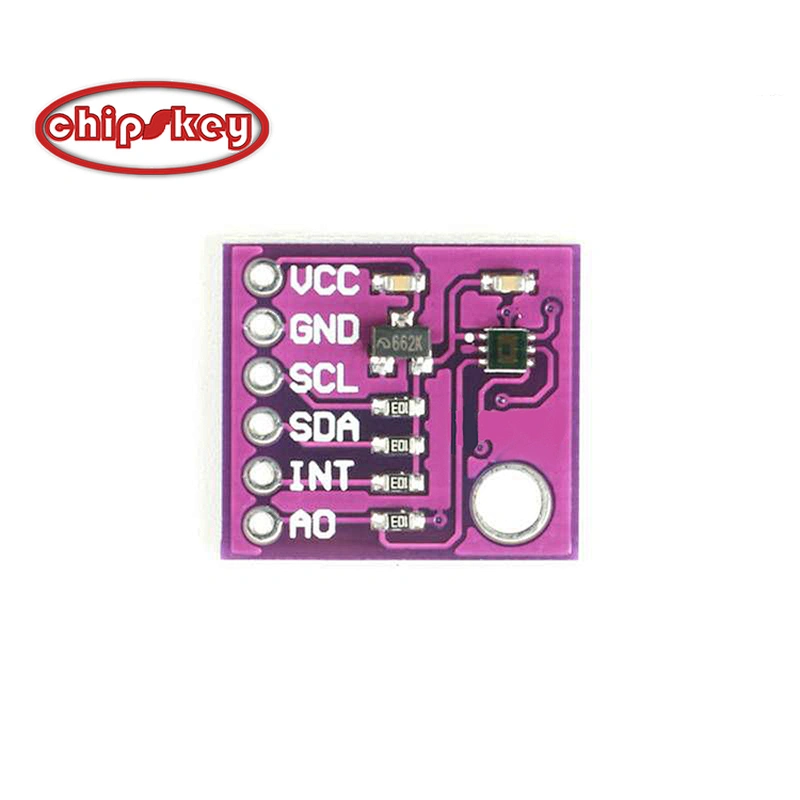

44009 MAX44009 Ambient light sensor I2C Digital Output
Product description
44009 MAX44009 ambient light sensor with I2C digital output, ideal for smart phones, notebooks, and industrial sensors and other portable products.
Device operating current of less than 1μA, is the industry's lowest power ambient light sensor, with 22 wide dynamic range (0.045lux to 188,000lux).
0.045lux to 188,000lux wide detection range. VCC = 5V, operating current ICC = 0.65μA.
-40 ° C to + 85 ° C operating temperature range.
Optional Device Address: 1001 010x and 1001 011x.
VCC = 5V.
Operating current ICC = 0.65μA.
Operating temperature range: -40 ° C to + 85 ° C.
Optional Device Address: 1001 010x and 1001 011x.
Weight: 1.3g.
Size: 19 * 17mm.
Detection range: 0.045lux to 188,000lux.
