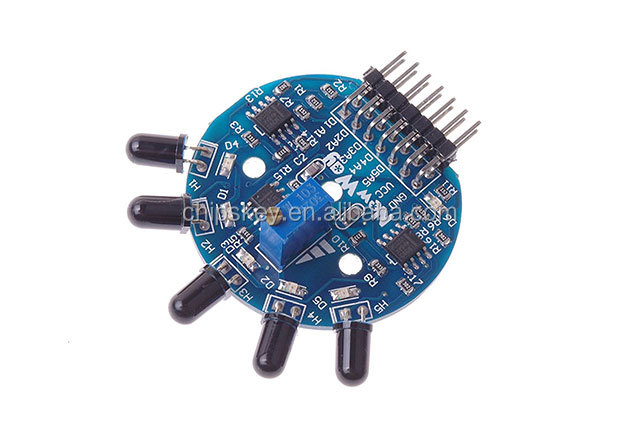

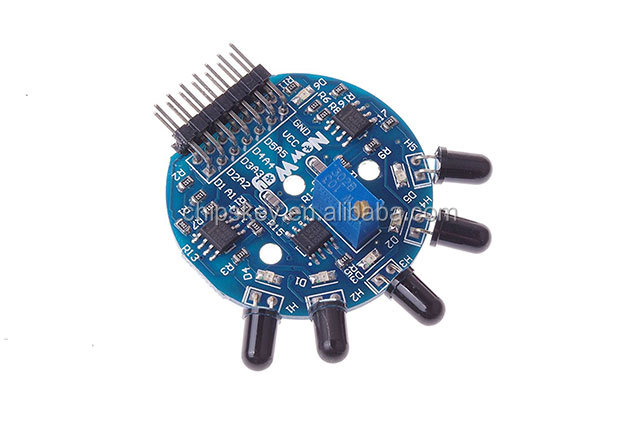

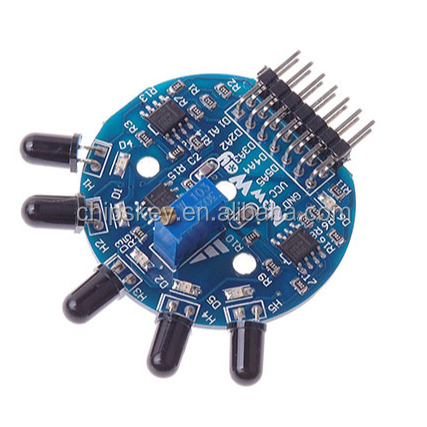

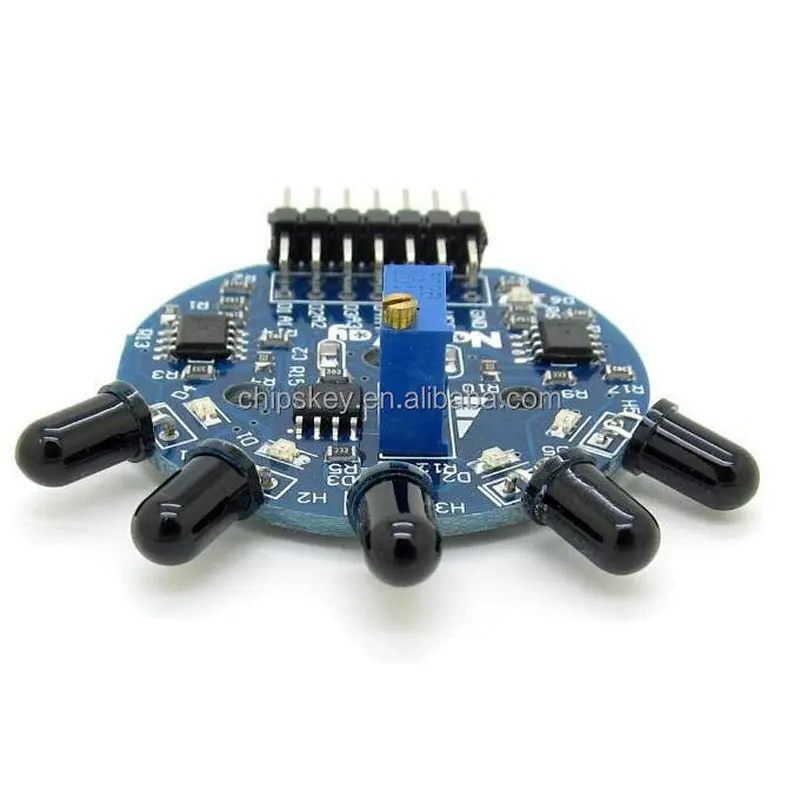

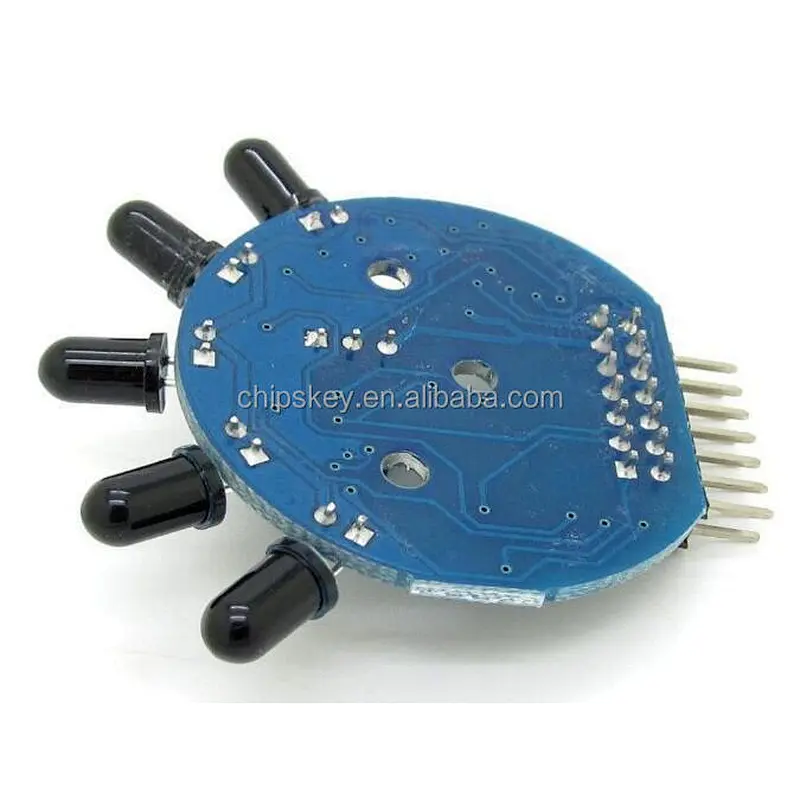

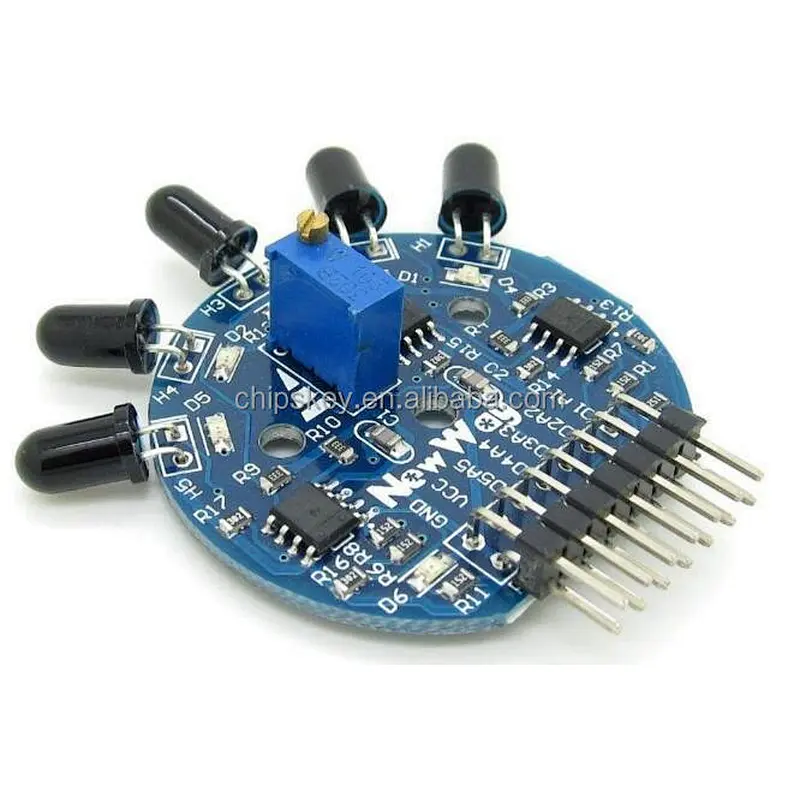

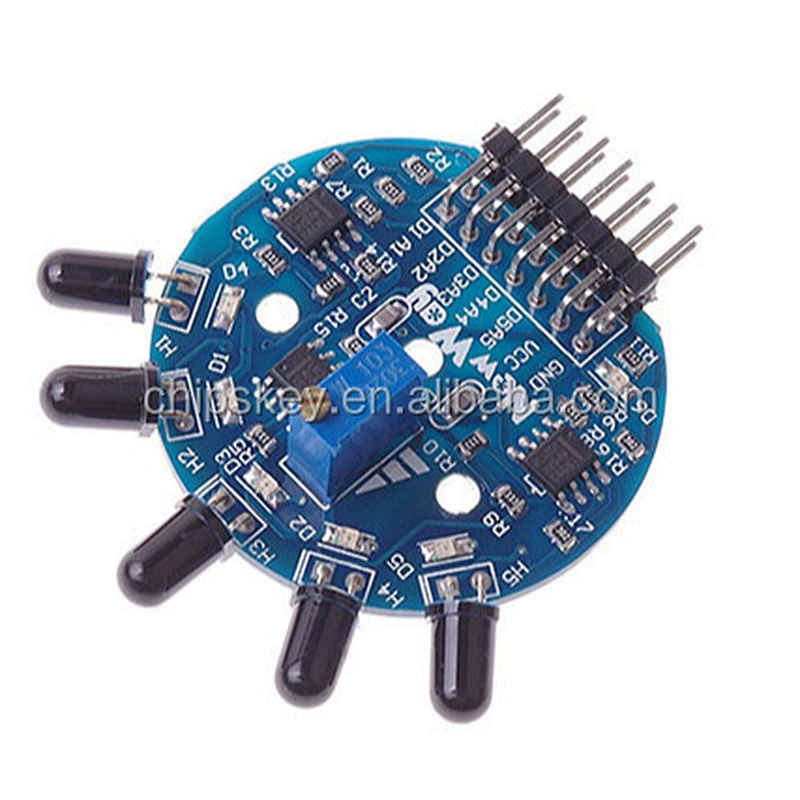

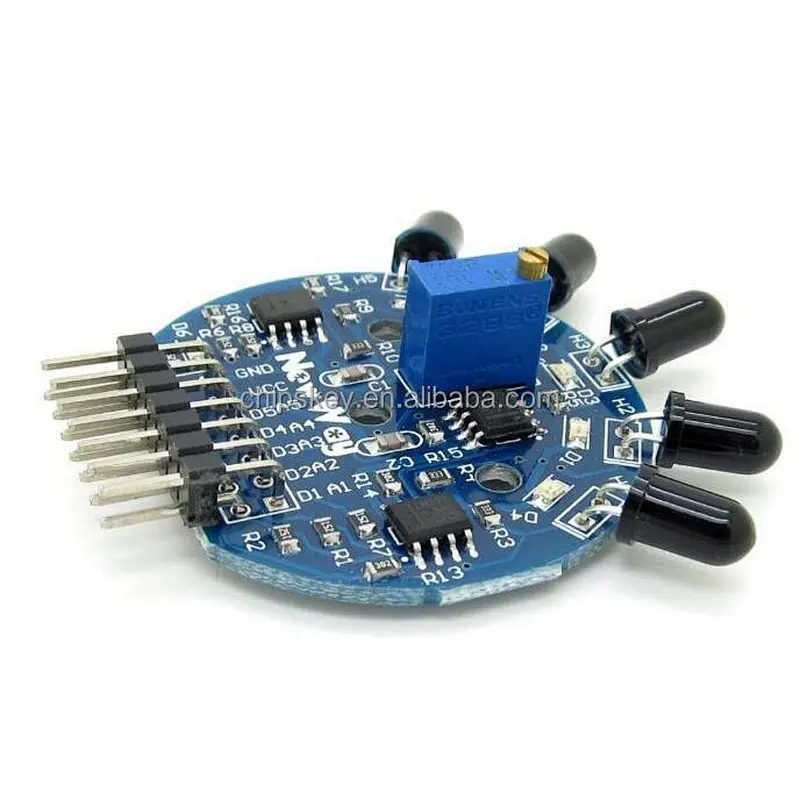

5-Channel Flame Sensor Module

Detection wavelength: 700 ~ 1100nm
Supply voltage: 3.3V ~ 9V
Five channel flame sensor design, wide range of detection (the detection range of the ordinary single flame sensor is probably about
30°, as the distance increases, the range is gradually reduced, the detection range of the product is greater than 120°)
Able to output a digital signal (high and low), easy to use
Able to output an analog signal (voltage signal), the measurement signal can be more accurately, the occasions for high precision
All five outputs status indicator, so whether debug or bring great convenience in the practical application of
Digital output detection distance adjustable.The analog output sensitivity adjustable, more flexible design
Using 1% resistor design, signal output is more accurate, suitable for the needs of high-precision measurement occasions
Onboard 3 M3 mounting holes for easy installation
3.3V-9V power supply, and is compatible with most of the SCM system
The patch devices used in all SMT process automatic welding, military quality reliable
Package included: 1pcs 5 Channels Flame Sensor Module
