- Model Number:29051
- Place of Origin:Guangdong, China
- Brand Name:Chipskey
- SKU:29051
- Delivery Time:24hours
- Quality:New&Original
- Application:Great for DIY project

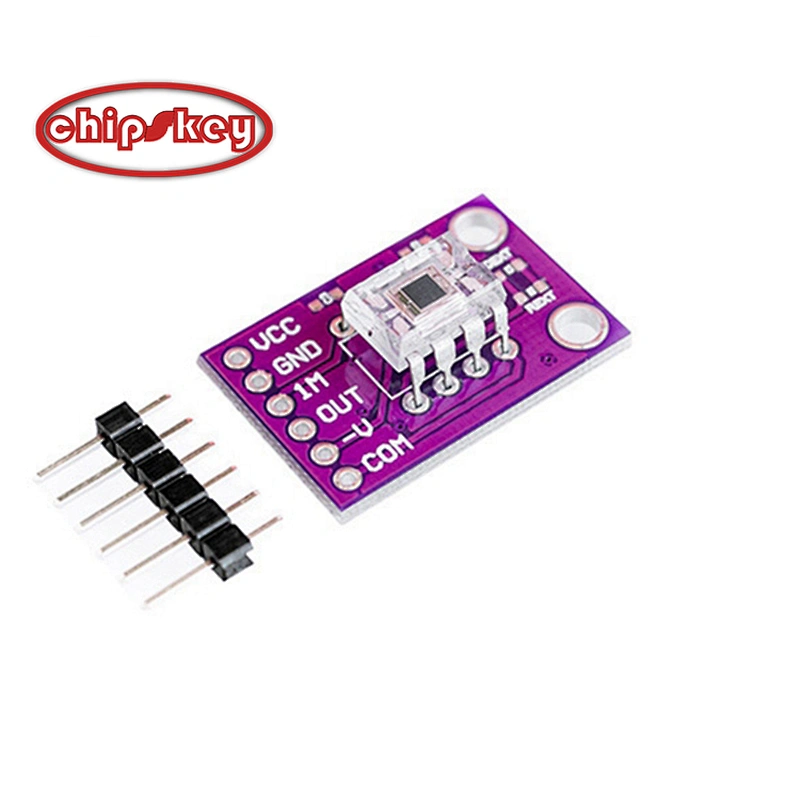

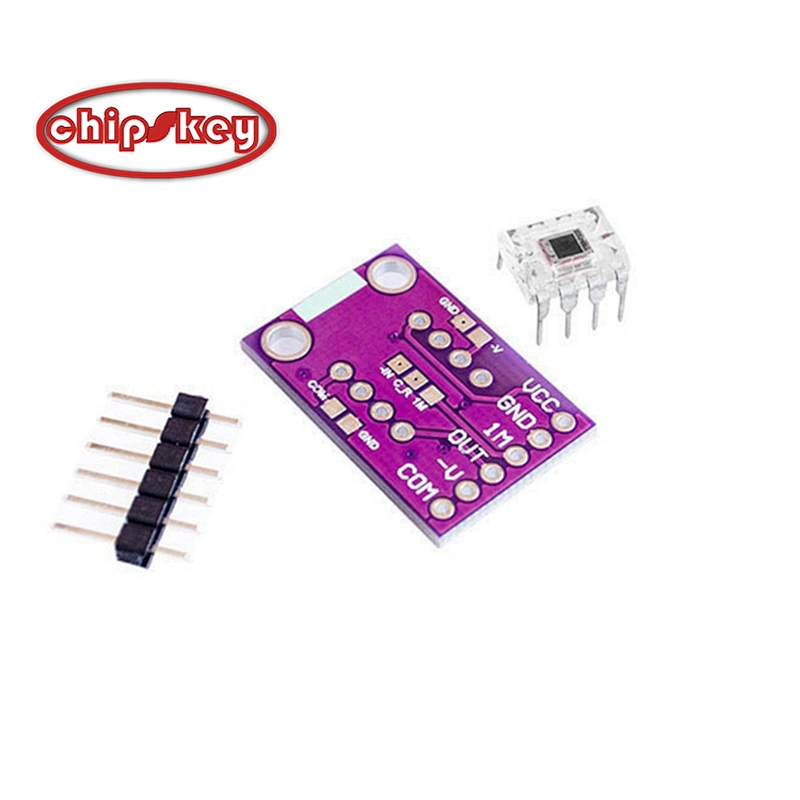

OPT101 Light light intensity sensor module Single chip photoelectric diode
"
Product features
1pc OPT101 Light intensity sensor module
Product description
OPT101 is integrated photodiode and chip built-in transresistance amplifier, the output voltage is linear increased with light intensity. Amplifier designed for single power supply or dual power supply, can be used in battery makes the operating equipment. Integrated photodiode and transresistance amplifier on a single chip, in discrete design, can reduce common problems, such as leakage current error, peak gain and noise caused by stray capacitance. And 0.09 * 0.09 inch photoelectric diode work in optical mode, can have very good linearity and low dark current OPT101 working voltage is 2.7 to 36 v, the static current is only 120 ua.. Don't need to infrared."
