- Model Number:2025
- Type:Sensor Development Boards and Kits, Drive IC
- Place of Origin:China
- small board PCB size:3.2cm x 1.4cm
- working voltage:3.3V-5V
- Condition:Brand New With Original Manufacturer
- Packaging:Reel Tray Tube
- Maximum Operating Temperature:-40C ~ 125C
- Warranty:360days
- Dissipation Power:1W-6W
- Application:Watch
- SKU:2025

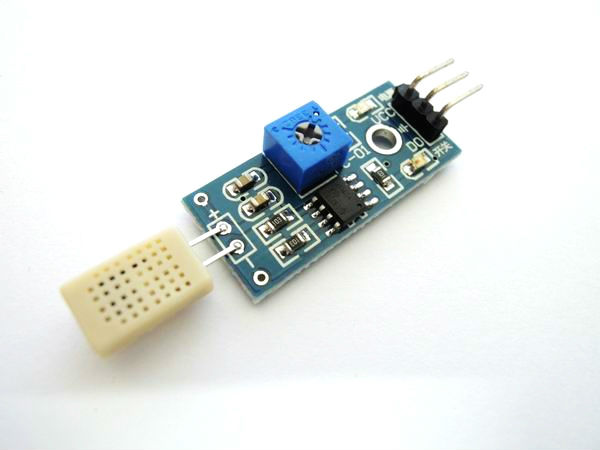

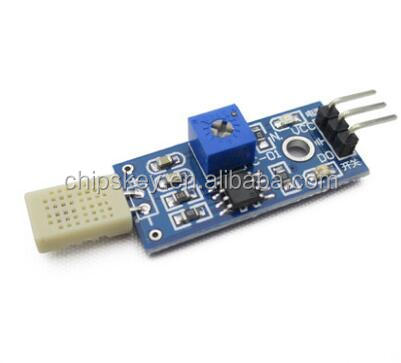

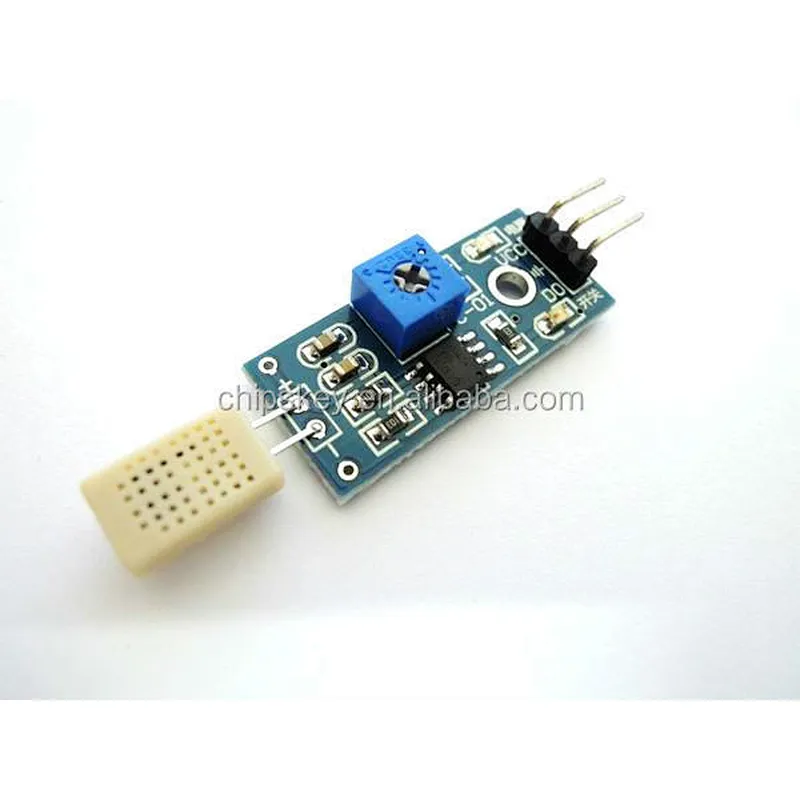

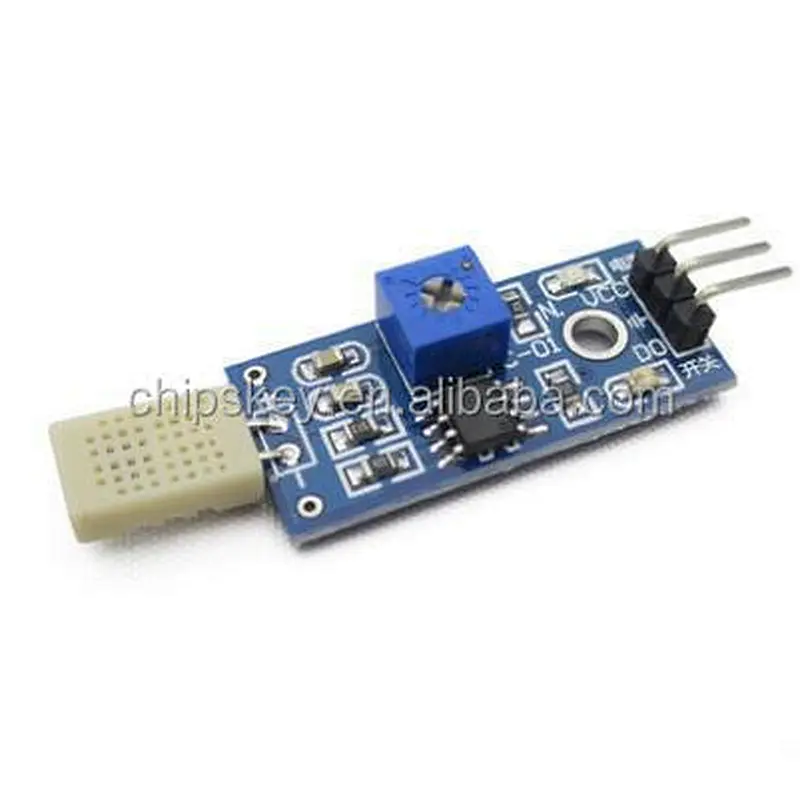

Humidity sensor module ,HR202 humidity module, humidity testing, humidity switch
Uses:
Detecting the humidity, a humidity sensor, environmental humidity detection
Module Features:
1 humidity sensor quality HR202;
2, the comparator output, the signal is clean, the waveform, driving ability, more than 15mA.
3, adjust the temperature distribution bit detection threshold
4, operating voltage 3.3V-5V
5, the output in the form: Digital switching outputs (0 and 1)
6, a fixed bolt hole for easy installation
Small board PCB size: 3.2cm x 1.4cm
8, wide voltage LM393 comparator
Module for use
1, Humidity sensor module is very sensitive to the ambient humidity is generally used to detect ambient humidity;
2, through the adjustment of the potentiometer, detecting the humidity threshold (i.e. control the humidity value) can be changed, such as the need to control the humidity of 60%, the module is then transferred to the green light in the corresponding environment humidity, DO output high level below the set humidity value, the output high, the green light is not lit;
DO output of the microcontroller directly connected through the microcontroller to detect high and low, to detect changes in environmental humidity;
DO output terminal can be directly driven shop relay module, which can form a humidity switch, control equipment to work in a suitable environment;
