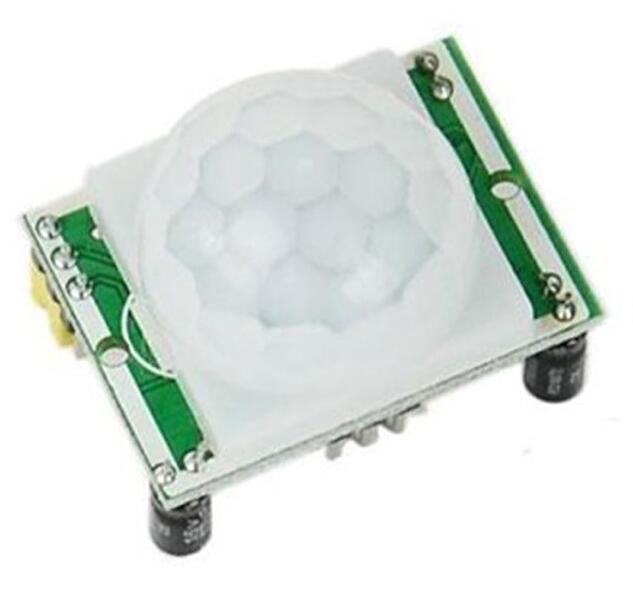

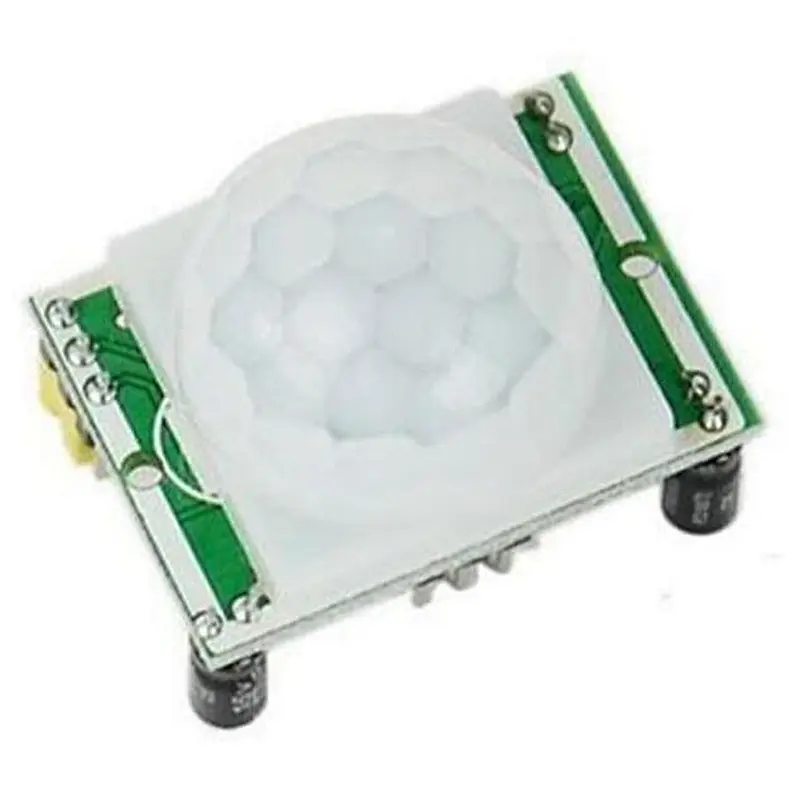

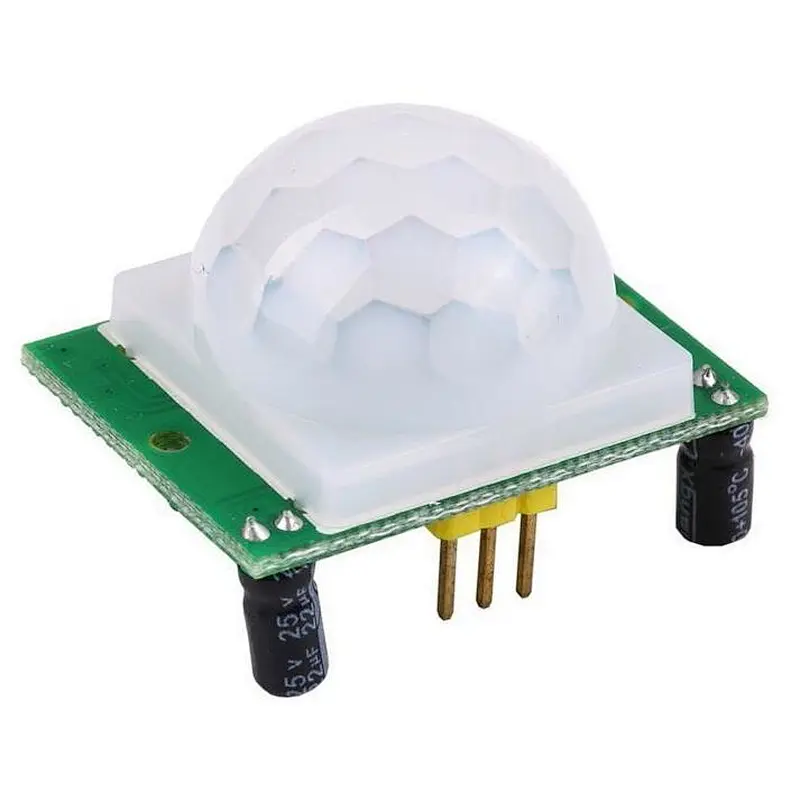

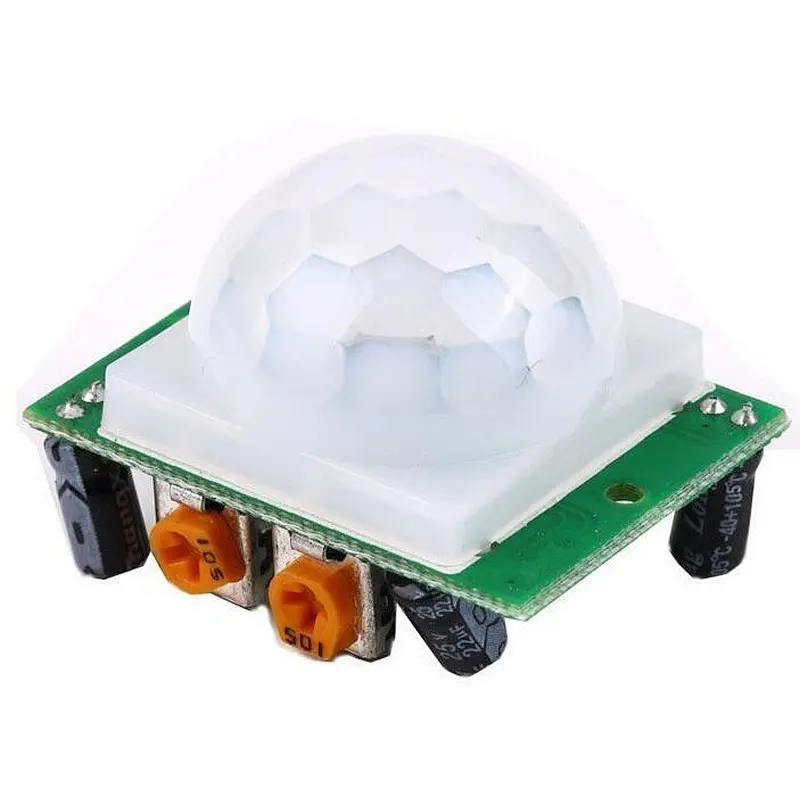

HC-SR501; human body infrared induction module; pyroelectric infrared sensor;

• Model Number:1071
• Type:Other, Drive IC
• Place of Origin:China
• Brand:Chipskey
• Part number:1071
• Lead Free Status:Lead free / RoHS Compliant
• Condition:Brand New With Original Manufacturer
• Packaging:Reel Tray Tube
• Warranty:360days

HC-SR501; human body infrared induction module; pyroelectric infrared sensor;

Product description

Specifications :

Operating voltage: DC5V to 20V
Static power consumption: 65 microamps
Level output: 3.3V, low 0V
Delay time: adjustable (0.3 seconds to 18 seconds)
Blockade Time: 0.2 seconds
Trigger Mode: L can not be repeated, H can be repeated default value H
Sensing range: less than 120 degree cone angle of less than 7 meters
Operating temperature: -15 to +70 degrees

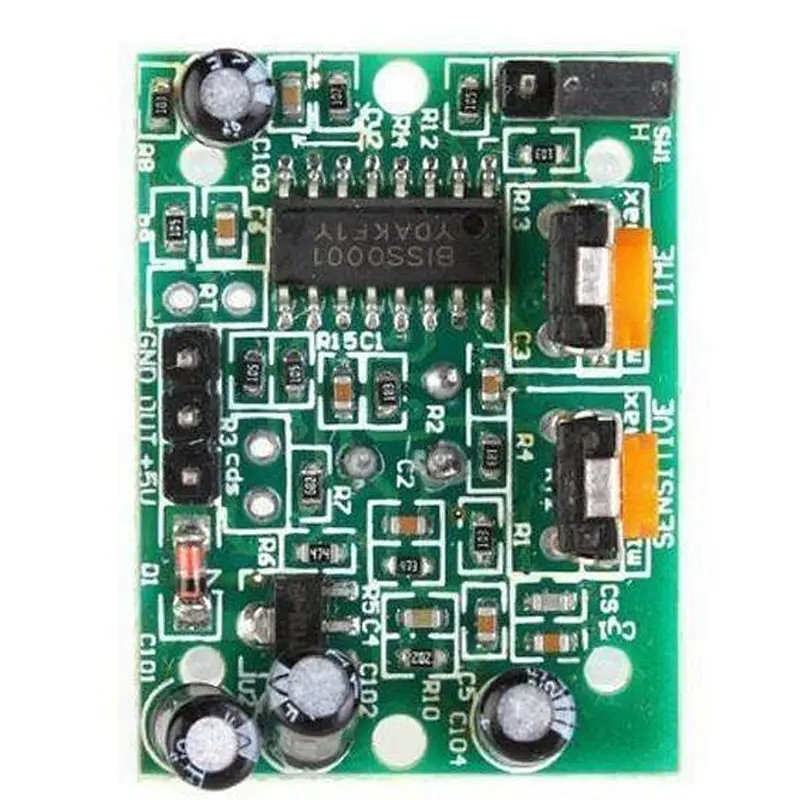

PCB Dimensions: 32 * 24mm, screw hole distance 28mm, screw aperture 2mm sensor lens size: (diameter): 23mm (default)
photosensitive control (optional): module is reserved for the location, you can set the photosensitive control, daytime or light sensing. wide operating voltage range: default Voltage DC5V to 20V
Applications
Security Products
The human body sensors toys
The human body sensor lighting
Industrial automation and control, etc.
