- Model Number:3066
- Type:Sensor Development Boards and Kits
- Place of Origin:China
- Category:Module
- Part number:3066
- Brand:chipskey

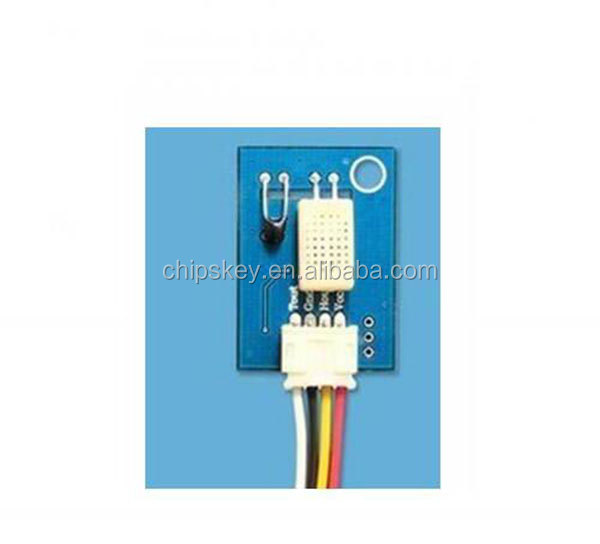

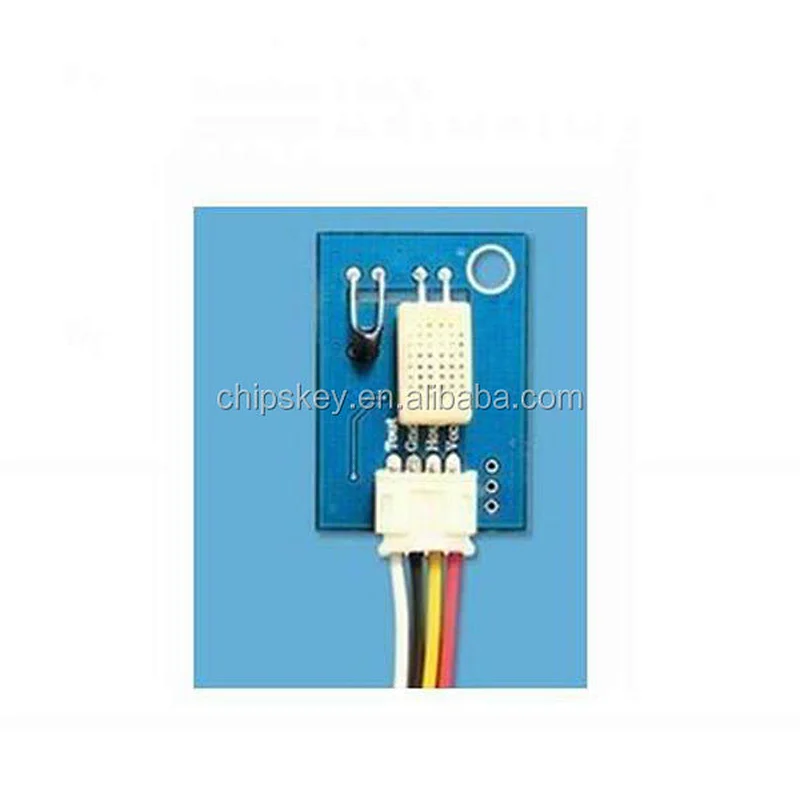

AM2001, single humidity sensor (voltage analog output module) alternative AH2M1
AM2001 Single humidity module (voltage analog output), instead of a humidity of AH2M1AM2001 single module, i.e. the relative humidity sensor and circuit integration of the product module supply voltage is a DC voltage, relative humidity to be calculated by the voltage output of the module with high precision,high reliability, consistency, and with temperature compensation, single-chip calibration output to ensure long-term stability, ease of use and low cost characteristics, especially suitable for more demanding on the quality and cost requirements of enterprise.
Technical parameters:
(1) The supply voltage (Vin): DC 4.5-6V
(2) current consumption: about 2mA (MAX-5mA)
(3) Operating temperature range: -40 ~ 80 °C
(4) Operating humidity range: 0 ~ 100% RH (condensation)
(5) Humidity measuring range: 0 ~ 100% RH
(6) Storage temperature range: 0 ~ 80 °C
(7) Storage humidity range: 95% RH (non-condensing)
(8) humidity detection accuracy: ± 3% RH (conditions: at25 °C, 60% RH, Vin = 4.5-6V)
Output voltage range: 1.71 ~ 1.89V
(9) The temperature detection accuracy: ± 0.5 ° C (conditions: at25 °C, Vin = 4.5-6V)
:0.245-0 .255 V output voltage range
Technical parameters:
(1) The supply voltage (Vin): DC 4.5-6V
(2) current consumption: about 2mA (MAX-5mA)
(3) Operating temperature range: -40 ~ 80 °C
(4) Operating humidity range: 0 ~ 100% RH (condensation)
(5) Humidity measuring range: 0 ~ 100% RH
(6) Storage temperature range: 0 ~ 80 °C
(7) Storage humidity range: 95% RH (non-condensing)
(8) humidity detection accuracy: ± 3% RH (conditions: at25 °C, 60% RH, Vin = 4.5-6V)
Output voltage range: 1.71 ~ 1.89V
(9) The temperature detection accuracy: ± 0.5 ° C (conditions: at25 °C, Vin = 4.5-6V)
:0.245-0 .255 V output voltage range
