WT588 WT588D-16P Voice Downloader

• Model Number:19j056
• Place of Origin:Guangdong, China
• Brand Name:Chipskey
• SKU:19j056

WT588D Mini Download V1.1 download operation

Computer PC WT588D VioceChip software engineering documentation will be compiled into a BIN file, and then WT588D module against bottom placed into the locking seat, WT588D module 16P, 28P module only by the bottom (gap facing the locking seat rocker) can be placed, and then through a USB cable, download new engineering information related to WT588D module or FLASH memory. Using software from the computer WT588DVoiceChip edited voice and control mode, trigger mode, and then download, you can download the project information to WT588D module.

Download Function Description

      DAC audio output, requires external power amplifier, and WT588D want to set as the DAC output mode
      PWM audio output to directly drive small speakers speaker 0.5W8 Europe and WT588D want to set as PWM output mode;
      Pin VCC GND VREST CS CLK DO DI downloaded online output line interfaces;
      RESET Reset button (When the connection is broken, or when an error in the connection process, and after the download is complete, you can click here button reset);
      Test button, ten keys K1, K2, K3, K4, K5, K6, K7, K8, K9, K10 correspond to I / O port P00, P01, P02, P03, P04, P05,
P06, P07, P10, P11;
      Pin RESET P00 P01 P02 P03 I / O port pin-out, with the program for debugging microcontroller
      BUSY busy signal indicator
     Power Indicator
     USB cable input slot, connected to the computer via a USB cable, after turning on the power supplied by the USB.

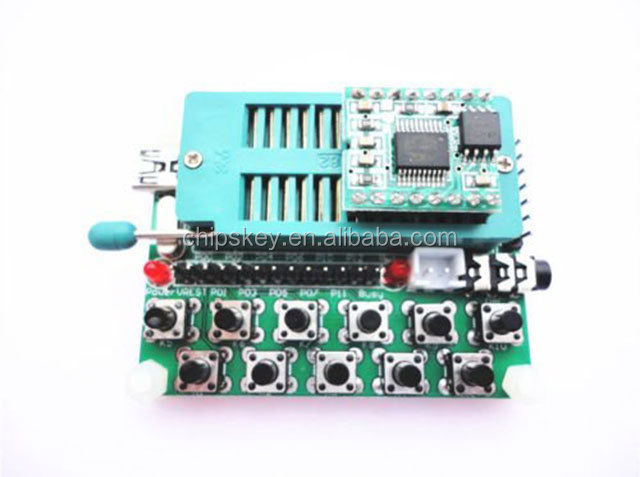

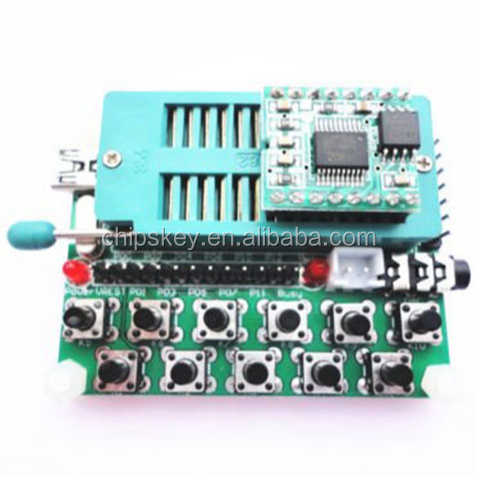

     Locking seat can be placed WT588D module, WT588D plug SPI-Flash (need to convert seat), by the end of placement.
