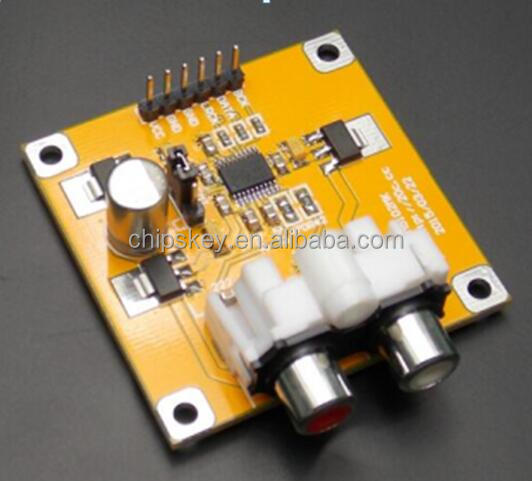

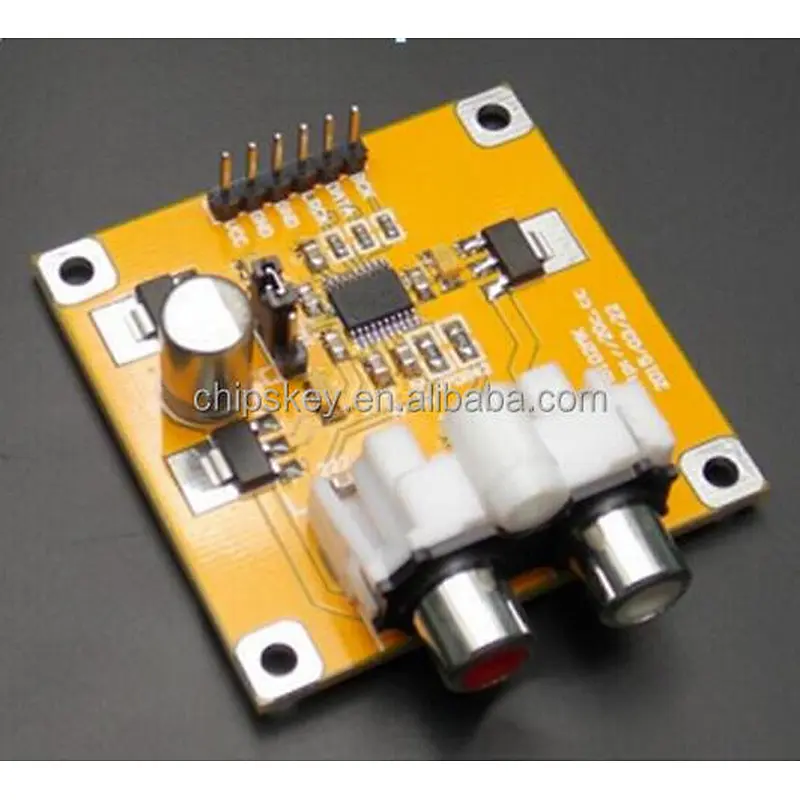

DC 5V-10V I2S Player 32 Bit 384K PCM5102A DAC Decoder Board

• Place of Origin:Guangdong, China
• Brand Name:Chipskey, Chipskey
• Certification 1:ROHS
• Certification 2:CE

"product description
description:
Support I2S / left alignment signal direct input (can be manually switched)
Maximum support for 32-bit 384K sampling rate.
Two FLT filter modes (NOM normal mode or LOW delay mode) can be set - Manual switch.

Signal to noise ratio: 112db
Distortion: -93db
Direct output is 2.1V RMS audio voltage, high frequency pure, low frequency full, surpass ES9023

specification:

PCB size: approx. 5x5.5x2cm / 1.97x2.17x0.79""
Supply Voltage: DC 5-10V (VCC to 5-10V, GND to GND)

note:

Do not reverse the power supply, or the circuit board will be damaged.
Voltages in excess of 10V can damage the board.
VCC and GND need to connect the power, the rest GND LRCK DATA BCK should be connected to I2S signal input. (The board does not need to be connected to the MCLK chip and the PLL internal frequency rises, the MCLK clock is much better than the asynchronous clock, the internal PLL rising frequency is only used to generate the internal MCLK clock and the audio sampling rate can not be increased.)"
