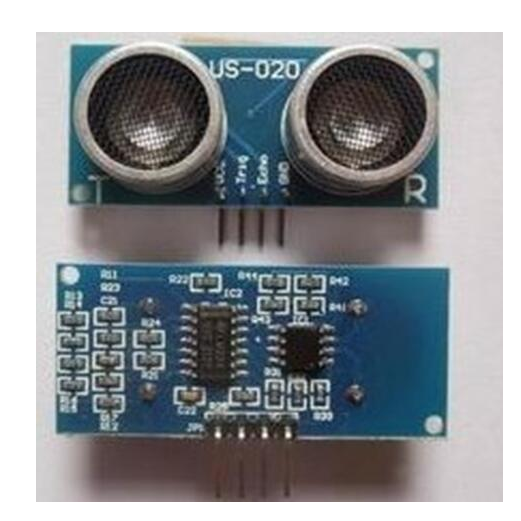

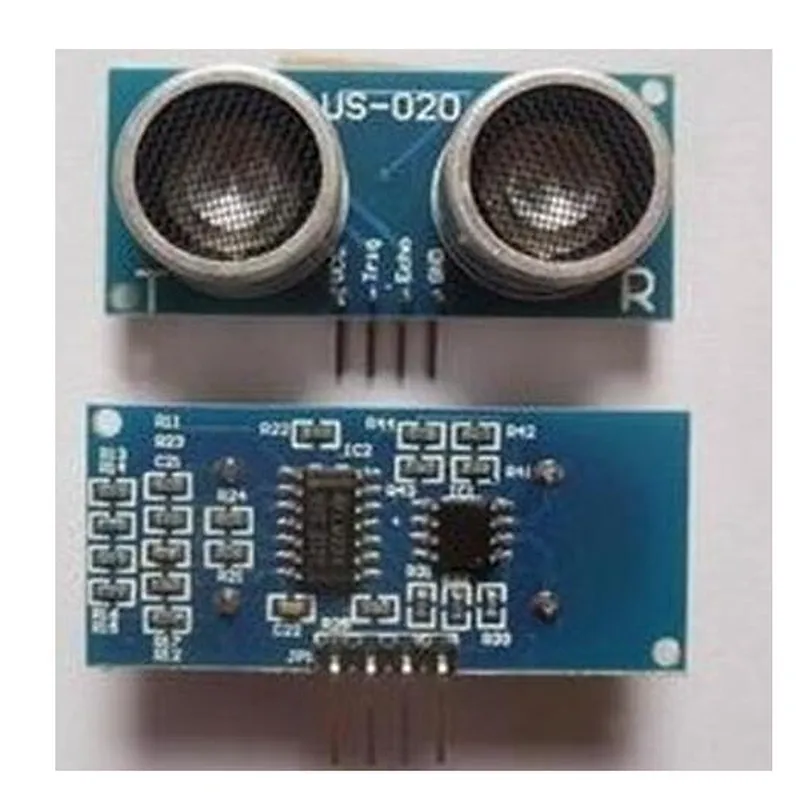

US-020 ultrasonic ranging module, 5V, can be measured 7M

• Model Number:5014
• Place of Origin:Guangdong, China
• Brand Name:Chipskey
• Part number:5014
• Brand:chipskey
• Category:Module

US-020 ultrasonic ranging module, 5V, can be measured 7M

Product description

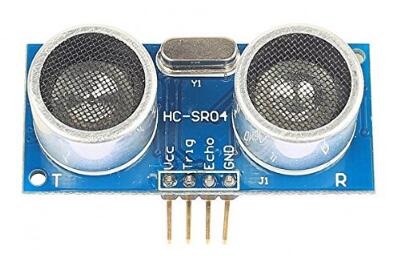

There are 4 pins out of the module: VCC , Trig, Echo, GND . So it's a very easy interface for controller to use it ranging. The all process is : pull the Trig pin to high level for more than 10us impulse , the module start ranging ; finish ranging , If you find an object in front , Echo pin will be high level , and based on the different distance, it will take the different duration of high level. So we can calculated the distance easily :Distance = ((Duration of high level)*(Sonic :340m/s))/2
