- Model Number:2093
- Type:Sensor Development Boards and Kits, Drive IC
- Place of Origin:China, US
- Dissipation Power:1W-6W
- Application:Watch
- Supply Voltage:1.5V-6V
- Part number:Ranging Distance Detecting Ultrasonic Sensor Display Module
- Brand:MIC
- Category:Module
- Lead Free Status:Lead free / RoHS Compliant
- Condition:Brand New With Original Manufacturer

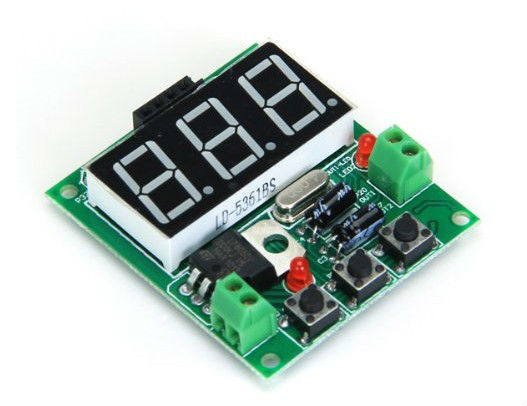

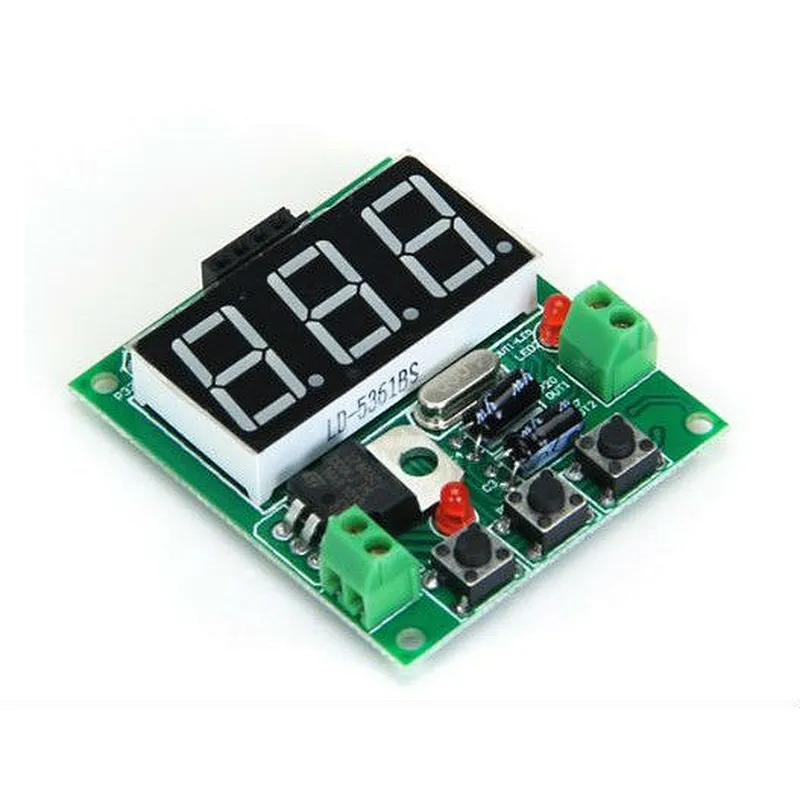

Ranging Distance Detecting Ultrasonic Sensor Display Module
Ultrasonic display module STC MCU control, with an external serial download end, two switch outputs, three buttons to select the two IO port expansion, and also special leave DS18B20 connection end
Product Description
Switch Output:
This module's outputs can be use-defined
Press and hold S1 button for 3 seconds, showing LLL
Press S1, it displays a number (001 e.g.), which is the min.measuring value. When the measured distance is less than this value,OUT2 will output a high level (4.5V). The min. measurement value is adjustable, press S2 to increase, S3 to decrease
Press S1 again after the min. measuring value is set, it displays HHH, then press the S1 to indicate a number (200 e.g.), which is the max. measurement value. When the measuring distance is larger than this value, OUT1 will output a high level (4.5V). This Max. measuring value is adjustable, press S2 to increase, S3 to decrease
When the max. measuring value is settled, press S1 to save. This device is designed with memory function when power off
