- Model Number:2064
- Type:Sensor Development Boards and Kits
- Place of Origin:China
- Part number:2064
- Brand:Chipskey
- Category:Module

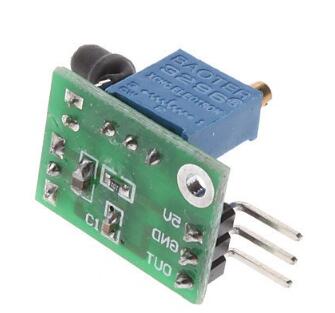

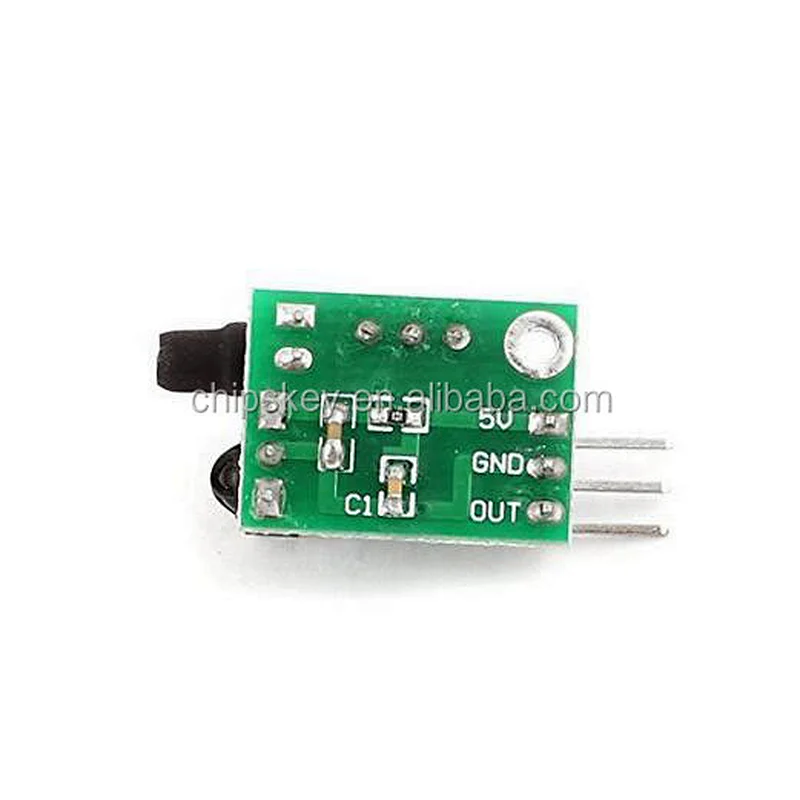

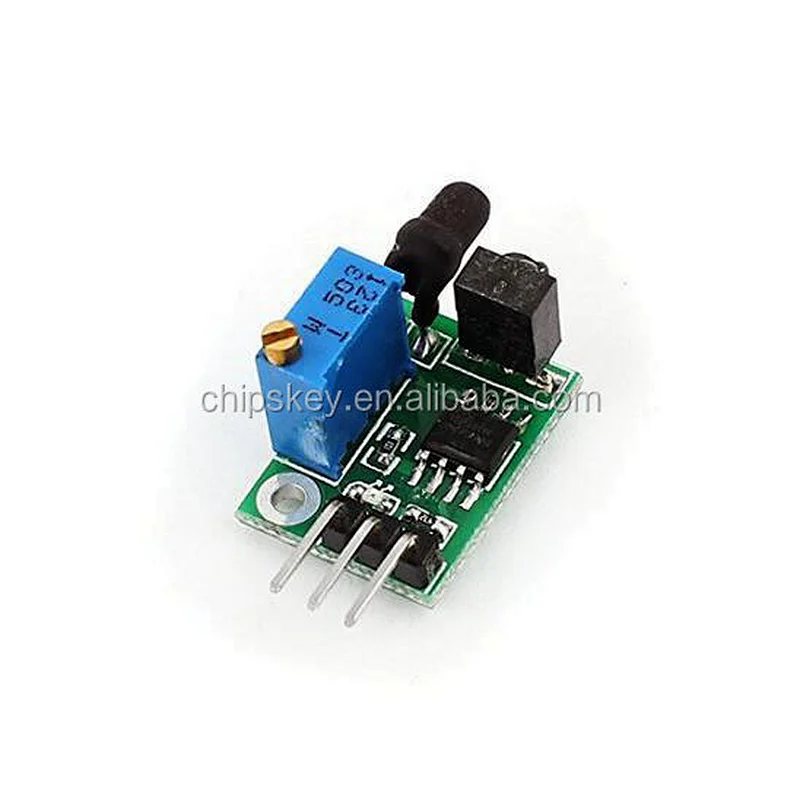

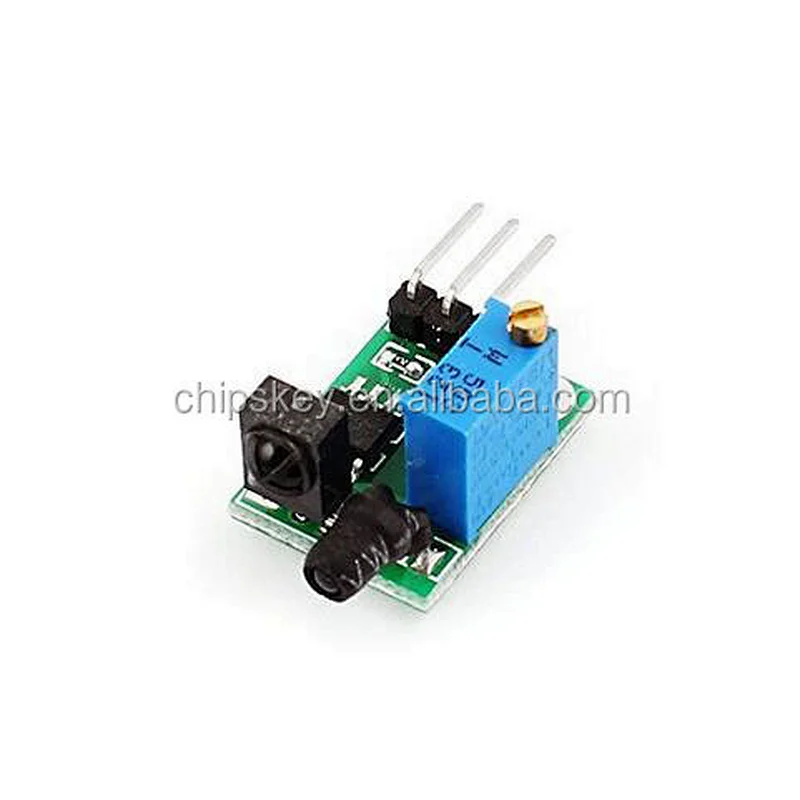

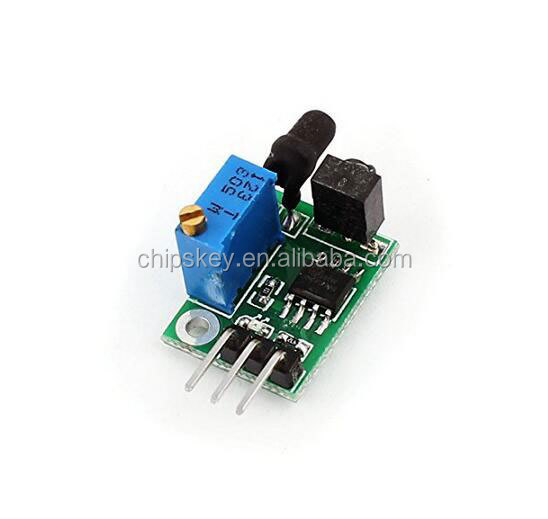

The infrared digital obstacle avoidance sensors; ultra-small; 3-100cm adjustable; current 6ma
"Sensor initiative emit infrared light detection, according to the reflection, if detect an obstacle, the OUT pin output 0, otherwise 1.
Operating voltage: 3.8~5.5V
Operating current (5V): 6mA (Typical)
Input and output signals (3 lines): VCC GND OUT
With precision adjustable potentiometers, adjustment range is from 3cm to 100cm
Dimensions:2.9 cm x 1.4 cm x 1.4 cm
Weight: 5 g"
Operating voltage: 3.8~5.5V
Operating current (5V): 6mA (Typical)
Input and output signals (3 lines): VCC GND OUT
With precision adjustable potentiometers, adjustment range is from 3cm to 100cm
Dimensions:2.9 cm x 1.4 cm x 1.4 cm
Weight: 5 g"
