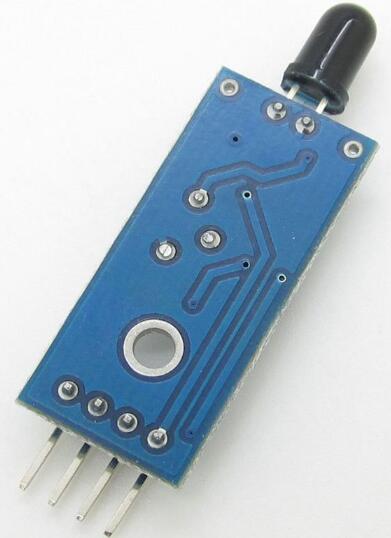

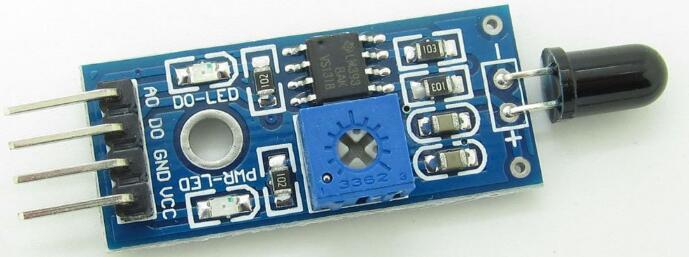

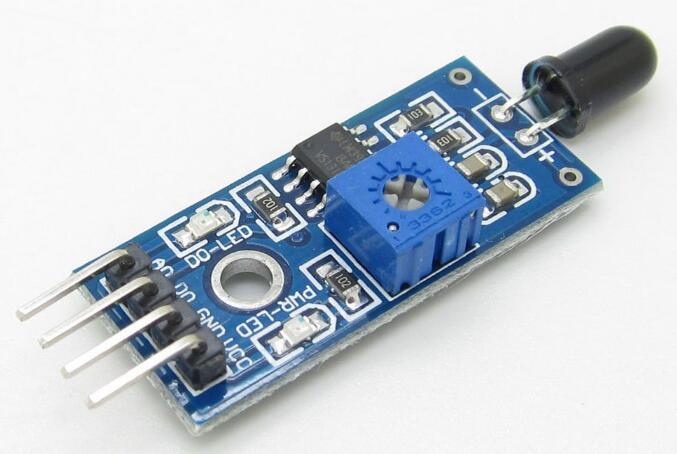

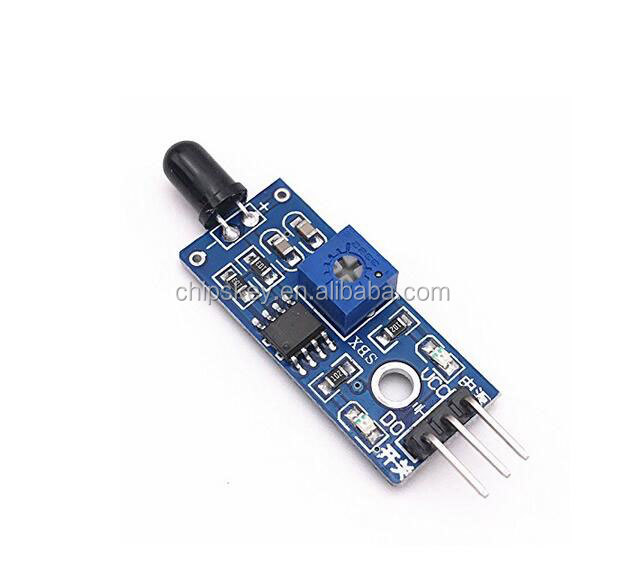

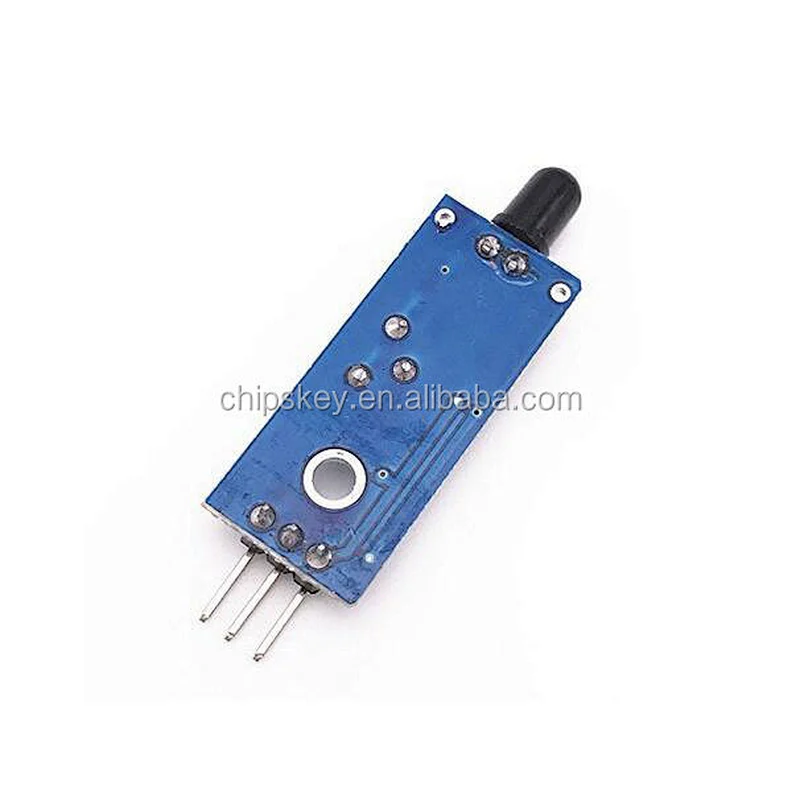

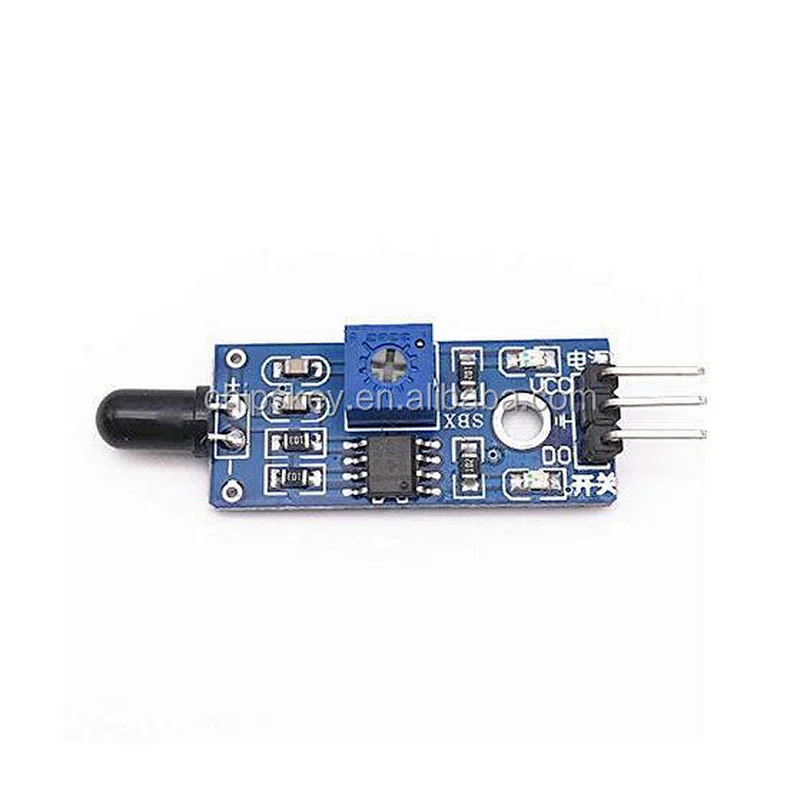

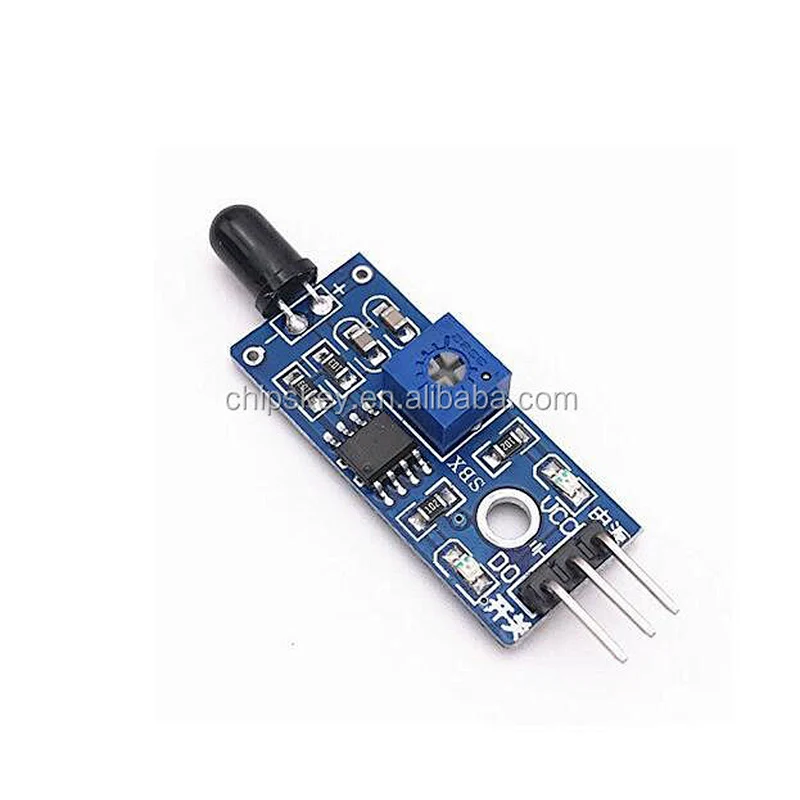

Fire detection flame sensor module; fire source detection modules; infrared receiver module

• Model Number:2022
• Type:Sensor Development Boards and Kits
• Place of Origin:China
• Part number:2022
• Brand:Chipskey
• Category:Module

Fire detection flame sensor module; fire source detection modules; infrared receiver module

Product description
The flame sensor can detect flame and infrared light sources with wavelengths ranging from 760 nm to 1100 nm. It uses the LM393 comparator chip, which gives a clean, stable digital output signal and driving ability of 15 mA.

This flame detector that can be used in fire alarms and other fire detecting devices.

Specifications

Detection Range: 760 nm to 1100 nm
Operating Voltage: 3.3 V to 5 V
Maximum Output Current: 15 mA
Digital Outputs: 0 and 1
Detection Angle: about 60 degrees
Adjustable sensitivity via potentiometer
LED lights indicators: power (red) and digital switching output (green)
Fixed bolt holes for easy installation
PCB Size: 3.2 cm x1.4 cm
