- Model Number:27070
- Place of Origin:Guangdong, China
- Brand Name:Chipskey
- Delivery Time:24 hours

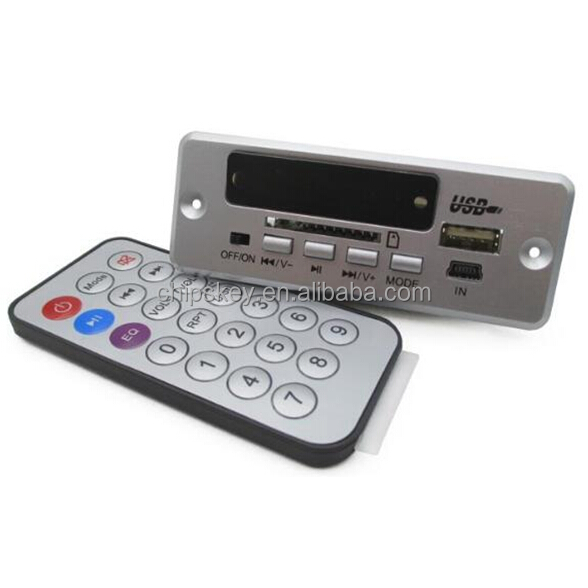

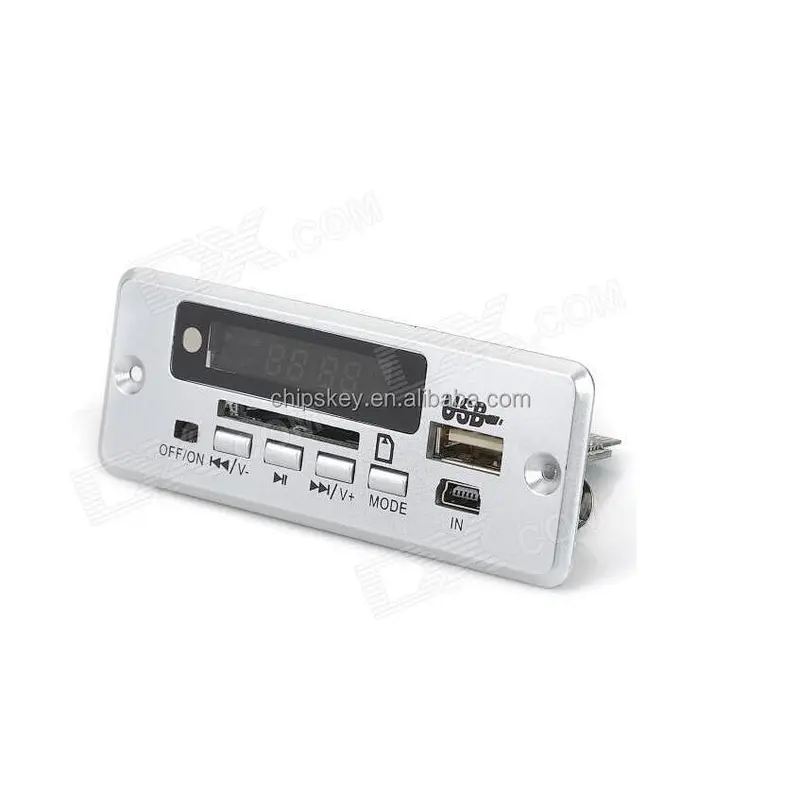

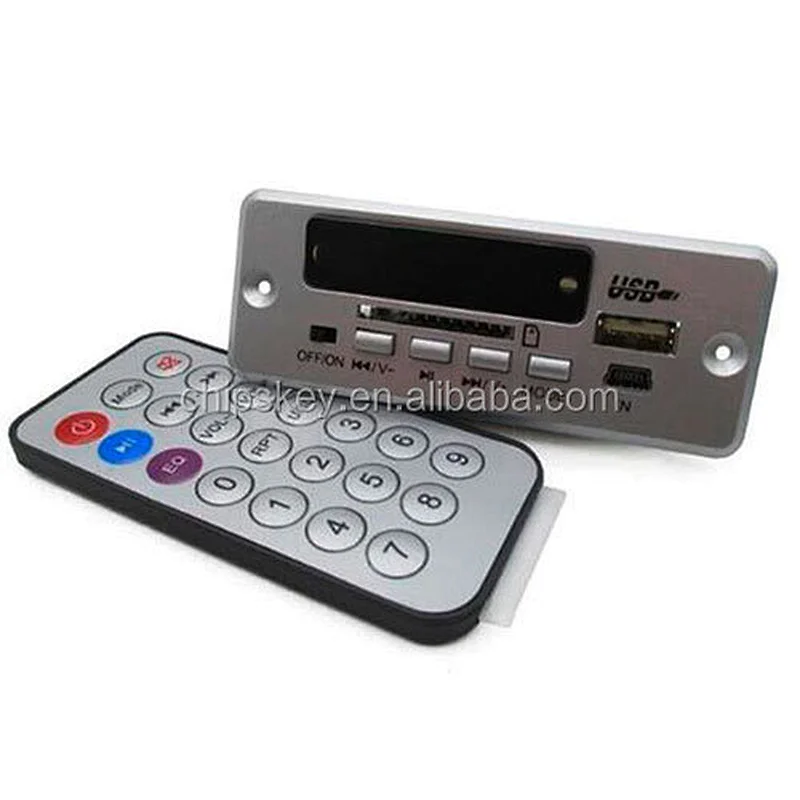

[1] function super lossless WAV + MP3 audio decoder board, dual decoder board, with FM radio.

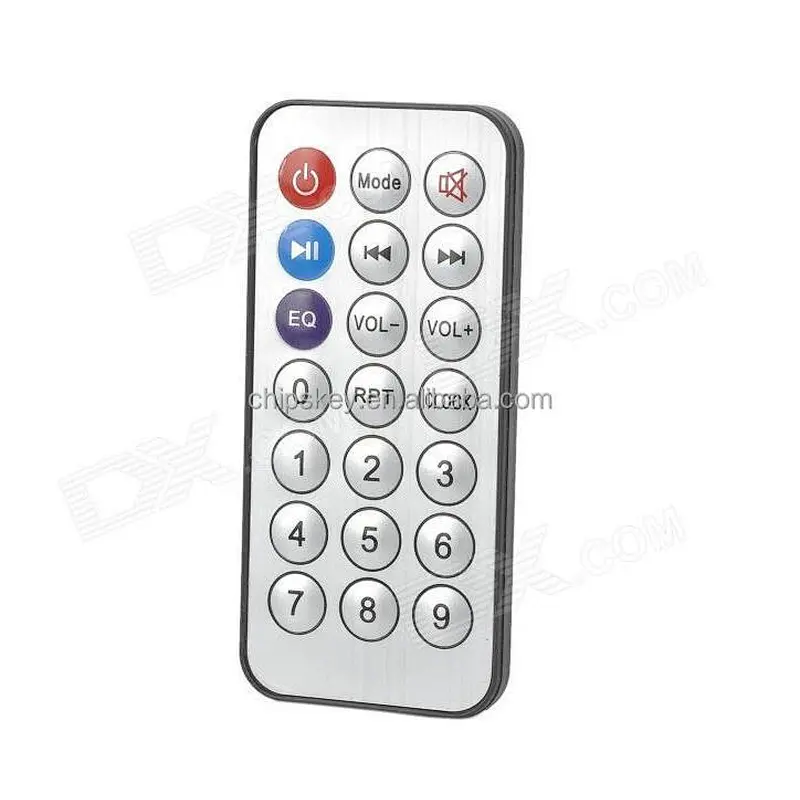

[2] Almighty remote control, 3-8 meters long distance remote control, music and heart.
[3] power memory play, support volume and track memory.
[4] 8-320Kbps wide MP3 rate range, enjoy the original sense of hearing, 320Kbps and then up is the lossless music APE format.
[5] support 8-48000Hz sampling frequency WAV format music files (commonly used 44KHz and 48KHz), like CD high quality music you do not miss. Does not support DTS surround multi-channel WAV format.
[6] support SD card, U disk or USB card reader to play music.
[8] 5-12V voltage power supply, for convenient sound production.
[9] The overall circuit wiring beautiful and reasonable, to avoid the noise caused by self-interference, high signal to noise ratio.
[10] Are you still looking for APE player? In fact, APE is compressed from the WAV, the sound quality exactly the same, the difference is that WAV has not been compressed, the file space occupied by APE only large, now large capacity U disk capacity is not a problem, APE price is too high, listen to WAV format Of the lossless music, it is a kind of authentic enjoyment.
shipping list:
[1] WAV + MP3 + radio decoder board - 1 block;

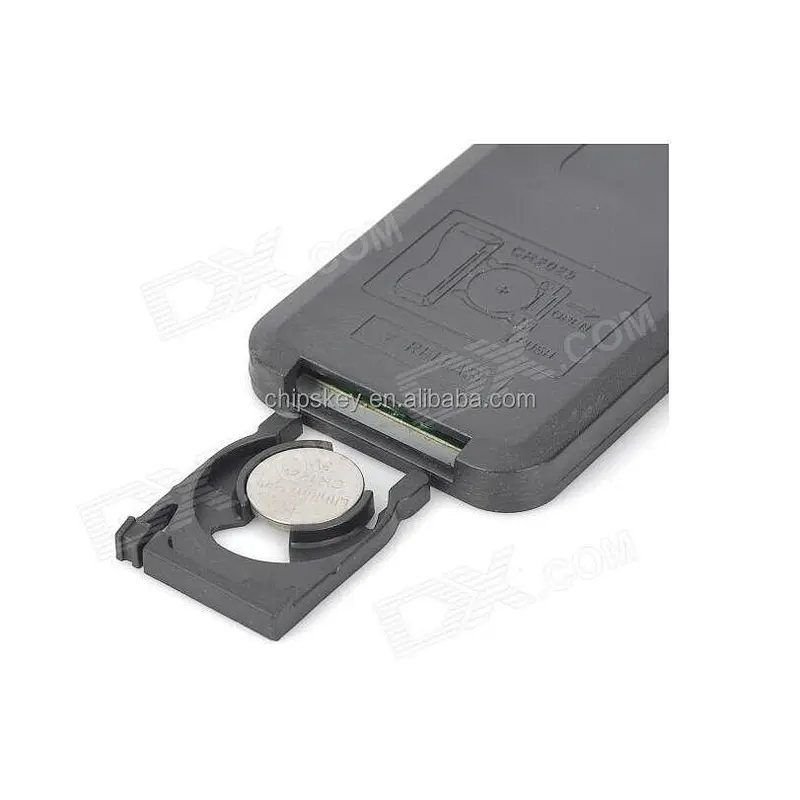

[2] Almighty remote control - 1 [due to air may not carry the battery];
[3] send 3P audio cable - 1 root;
[4] Send 2P power input line - 1 root
The main parameters:
[1] working voltage: 5-12V;
[2] working current: 200-900mA;
[3] support format: 8-320K rate of MP3 format, 8-48000Hz sampling frequency WAV format, does not support DTS surround 5-6 channel WAV test;
[4] mode of operation: power directly play, remote control operation, but also manual operation;
[5] device type: SD card, U disk or loading SD card, TF card USB card reader, Note: a small part of the cottage U disk due to chip problems may be incompatible situation, recommend the use of genuine U disk.

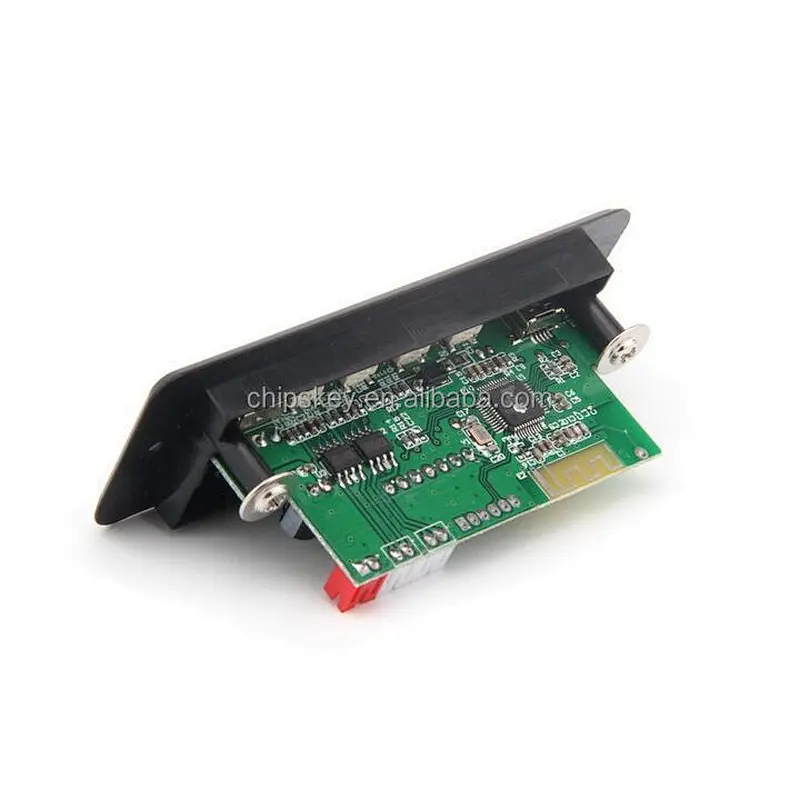

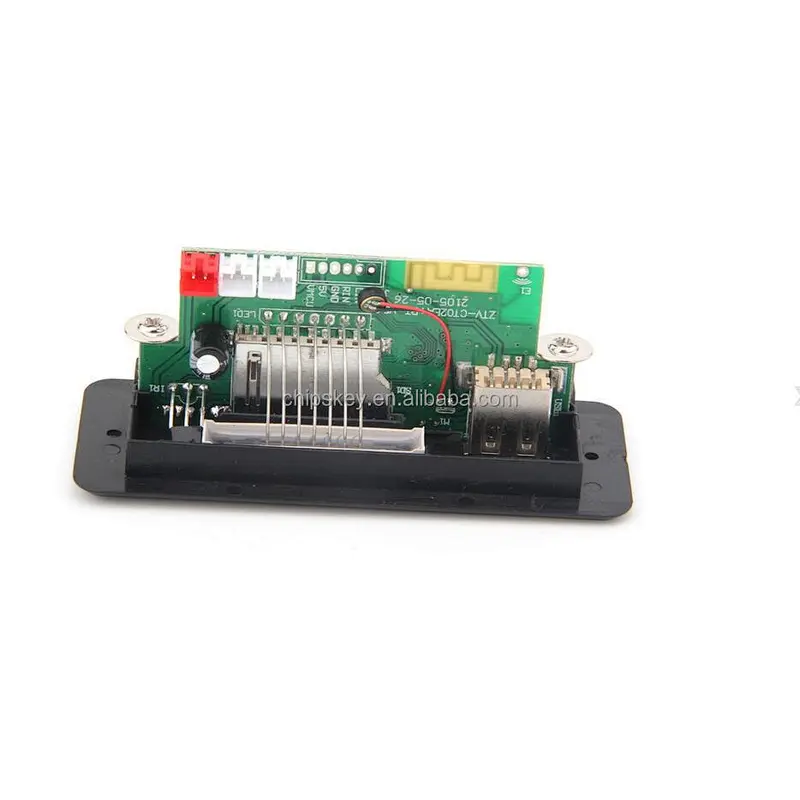

[6] PCB material: FR-4 super-hardness double-sided tin plate;
[7] PCB size: 73x33mm, thickness: 1MM; decode board mosaic installed open hole
Size 76mmX28mm
[8] a set of net weight: 40g. Installation hole size 77 * 28mm
Main function instructions;
[Playback mode]
Press the remote control RPT button in the playback mode to switch the mode. [Display fold sequence] [Show one single cycle] [Show CAC Shuffle] [Show s1 single play] [Show all sequential play]
[Radio FM]
Press the remote control Mode button, switch to FM mode, automatically play the saved radio, up and down the song to switch the radio. Short press the remote control player key to automatically search the radio. The computer will automatically store and play the radio.FM state, the remote control number can be directly input custom frequency radio. For example, 97.7 directly enter 977 to play a valid radio station.
[Clock function]
In any mode, press and hold the remote control [cLock or U / SD] to display the time for 3 seconds [clock 24 hours]. No operation automatically returns to the previous display status. Press [cLock or U / SD] button to enter the school mode, up and down track adjustment number, play button switch bit. Adjusted, the number of flashing for 3 seconds and automatically save the current time, without any operation automatically return to the previous show state. The screen displays the time when the remote control is turned off.
[Previous] Short press - select the track, long press - rewind.
[Next] Short press - select the next track, long press - fast forward.
[VOL + / VOL-] volume size control key.
[RPT] Play mode
[Digital selection key] 0-9 digit selection keys, select two or more tracks to be input continuously, after about 2-3 seconds to switch to the selected track, regardless of your U disk storage number of tracks, the number of direct tracks Quickly switch to the specified track.
[EQ] sound mode, click to switch to the standard, subwoofer, classical, soft and other sound mode, only supports MP3 format.
Products are small profits, each person's electronic technology differences, the shop does not provide technical guidance to modify the technical control of their own do not grasp the use of improperly easy to damage the decoder board components, such as the chip can not be used to burn the normal situation we are regarded as Human factors. Please think twice before making. Thank you for your cooperation!
Note: This board can not be 5V with 12V power supply, 12V power supply, if used for car modification 12V power supply, it is recommended according to the following schematic diagram in the power input positive series in series with a resistor (0.5-1W2.2-4.7 Europe) and diode (1N4007 , RL207, etc.), to ensure that the board can be long-term stable work.
