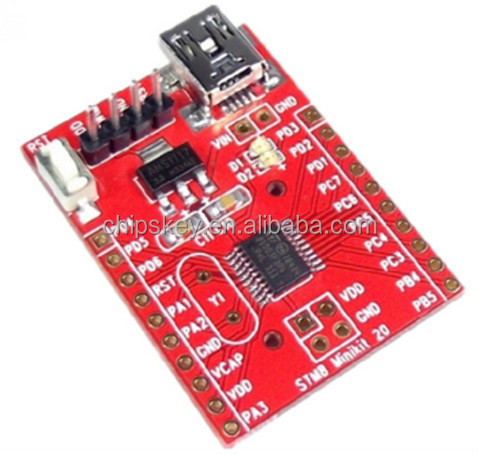

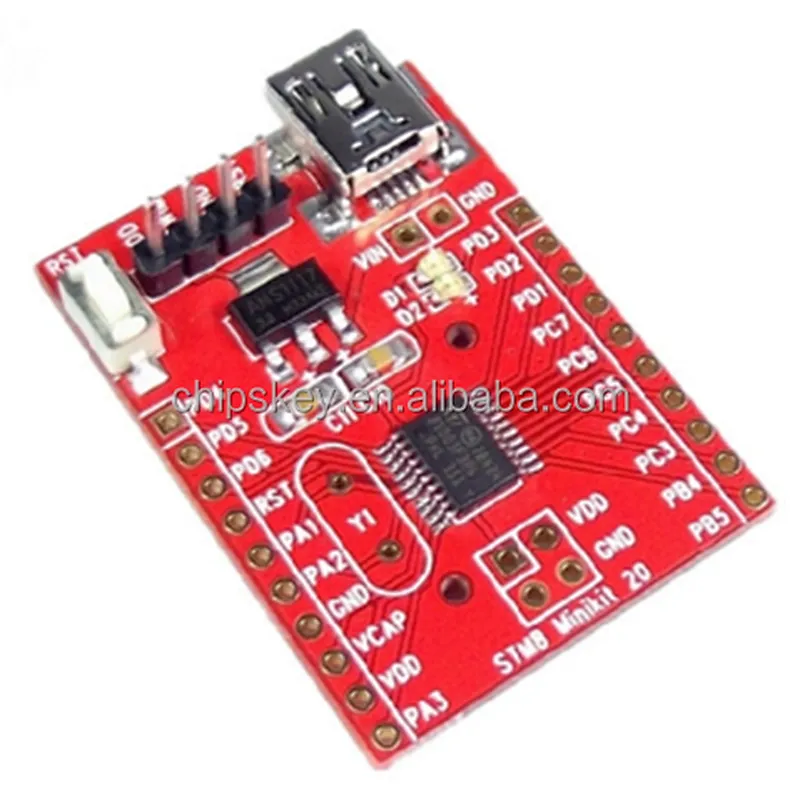

STM8S STM8S103F3P6 Development Board System Board

• Model Number:11B133
• Type:Other, Drive IC
• Place of Origin:China, CN
• Category:IC
• Lead Free Status:Lead free / RoHS Compliant
• Condition:Brand New With Original Manufacturer
• Maximum Operating Temperature:-40C ~ 125C

STM8S STM8S103F3P6 Development Board System Board

Technical Information:

Core board schematics (PDF format) x 1

Pre-programmed test program source code (IAR STM8 format) x 1

STM8S_MiniKit_20 core board main features:

1: Use STM8S003F3P6 for control IC

2: leads all pins, mark out the next pin pins, pin should make their own welding, optional up or down (bring your own pin)

3: Support SWIM debug mode

4: USB MINI line to take power, or 2.54 pin to take power

5: Optional external crystal (bring your own)

7: PD3 pin, pick up a LED light, easy debugging
