• Model Number:13D202
• Type:Other
• Place of Origin:China
• SKU:13D202
• Size:27mm x 46mm x 7mm
• Chip:SIM808
• Stock:In Stock ,Can Ship out Immedicate

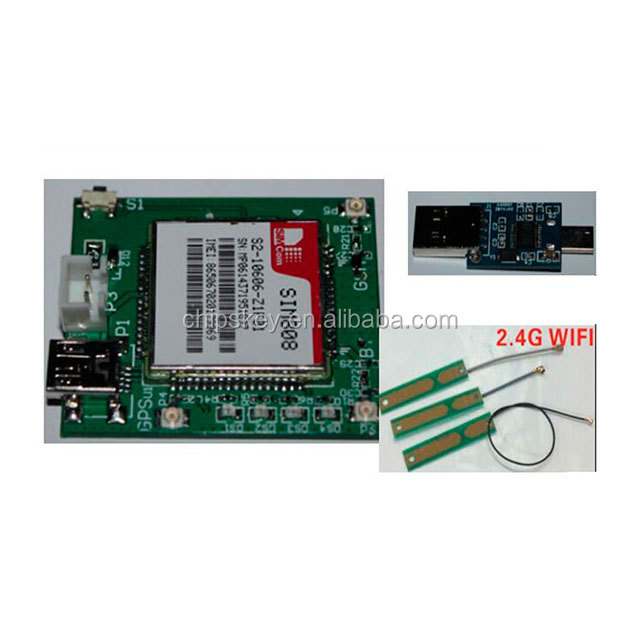

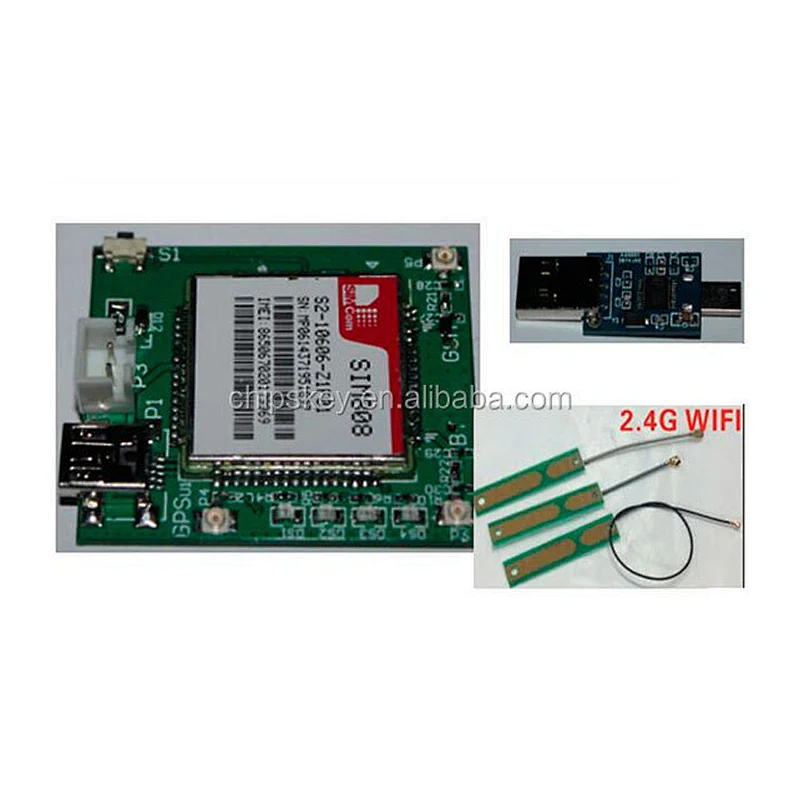

SIM808 Module Downloader Antenna

It features ultra-low power consumption in sleep mode and integrated with charging circuit for Li-Ion batteries, that make it get a super long standby time and convenient for projects that use rechargeable Li-Ion battery. It has high GPS receive sensitivity with 22 tracking and 66 acquisition receiver charnels. Besides, it also supports A-GPS that available for indoor localization.

It comes with a mini GPS and GSM antenna, but not includes Li-Po battery.

Quad-band 850/900/1800/1900MHz

GPRS multi-slot class12 connectivity: max. 85.6kbps(down-load/up-load)

GPRS mobile station class B

Controlled by AT Command (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands)

Supports charging control for Li-Ion battery

Supports Real Time Clock

Supply voltage range 3.4V ~ 4.4V

Integrated GPS/CNSS and supports A-GPS

Supports 3.0V to 5.0V logic level

Low power consumption, 1mA in sleep mode

Supports GPS NMEA protocol

Compact size 27mm x 46mm x 7mm

Standard SIM Card

Receiver channels: 22 tracking / 66 acquisition

Coarse/Acquisition code: GPS L1

Tracking sensitivity: -165dBm

Cold start time: 30s (typ.)

Hot start time: 1s (typ.)

Warm start time: 28s (typ.)

Horizontal position accuracy: < 2.5m CEP

Power consumption - Acquisition: 42mA

Power consumption - Continuous tracking: 24mA

Update rate: 5Hz
