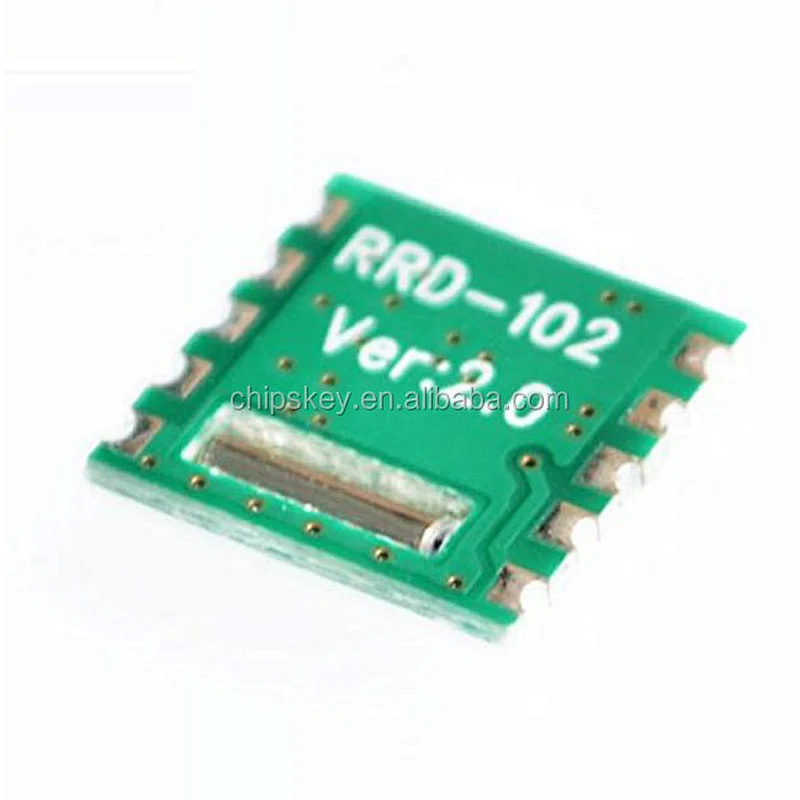

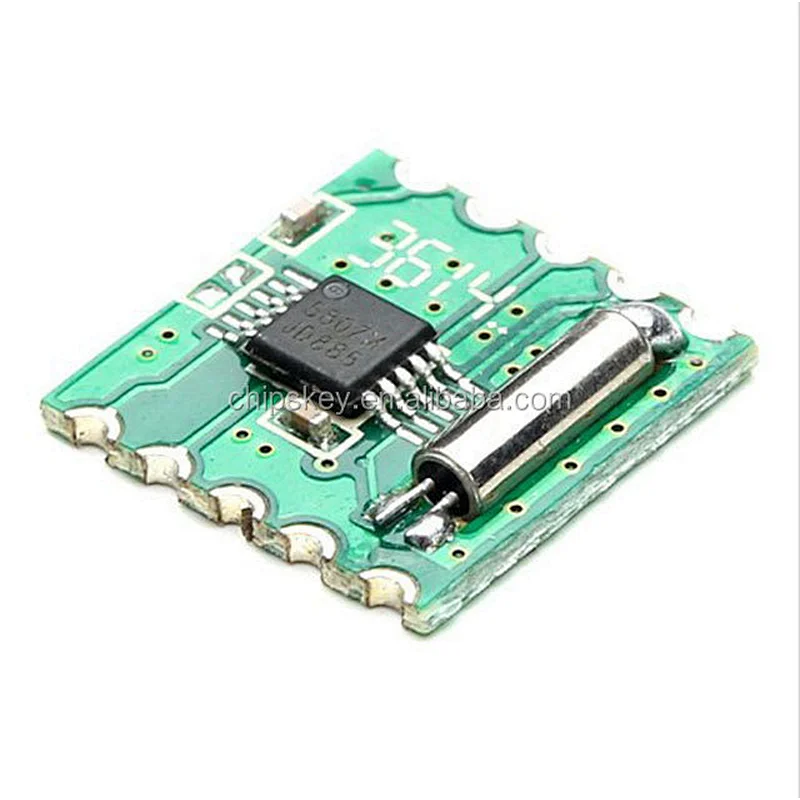

RDA5807M RRD102V2.0 stereo radio module

• Model Number:19J071
• Place of Origin:Guangdong, China
• Brand Name:Chipskey

I. Product Overview:
"RRD-102V2.0"stereo radio module (FM Stereo radio Module) high sensitivity, low power consumption, ultra-small size FM stereo radio module. Using RDA Microelectronics of RDA5807M (or RDA5802NM), this circuit external components, the noise factor is minimal. Small size, low power, low cost, simple application, using a wide range of advantages. Is an easy possessed highly cost-effective single-chip FM stereo radio module.
1: Move the DVD, TV, MP3, MP4 and other built-in FM wide-band wireless receiver module.
2: industrial and mining enterprises, schools, residential, tourist areas and other public places, stereo FM radio system.
3: wireless audio and wireless stereo headset function.
4: GPS navigation, FM radio and television broadcasting and other radio systems.
5: high-end game consoles and wireless audio electronic toys.
6: stereo mobile phone, cell phone, intercom systems, mobile radio and other radio devices.
7: PDAS and Notebook PC and other peripheral applications.
Second, the functional characteristics:
1, using a common module 102BC package, users can replace the use of direct, without changing the circuit design.
2, high sensitivity, low noise, anti-interference ability, very few external components, small size (11 * 11.2MM Max), extremely simple to use.
3, 76-108MHz worldwide FM band compatible (including Europe and Japan 76-91MHz 87.5-108.5MHz).
4, I2C serial data communications bus interface, support for external reference clock input.
5, COMS technology fully integrated single-chip integrated circuits, power consumption is minimal.
6, built-in high-precision A / D (ADC) and digital frequency synthesizer.
7, built-in LDO adjustment, low power consumption, wide voltage range (2.7-3.6VDC).
8, built-in noise cancellation, soft mute, bass boost circuits.
9, high power 32Ω load audio output, headphone connections are direct, no external audio driver amplifier.
10, the application of simple, low cost, cost-effective.
