- Place of Origin:Guangdong, China
- Brand Name:Chipskey
- Model Number:27044
- Delivery Time:24hours
- Quality:New&Original
- Application:Great for DIY project

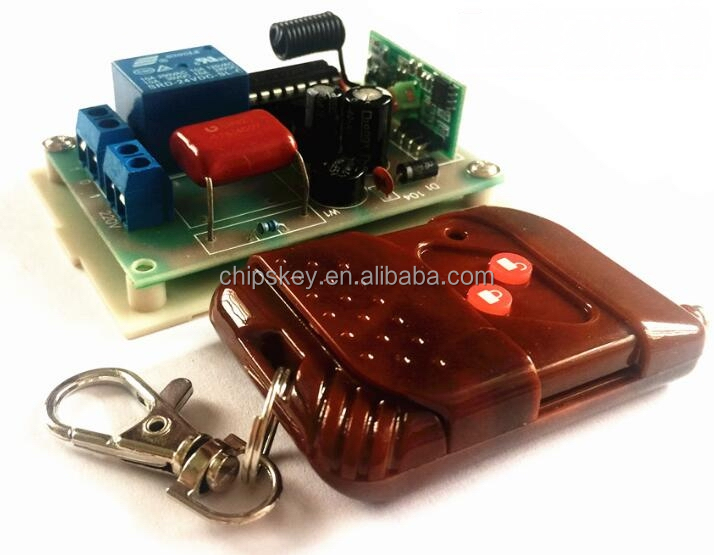

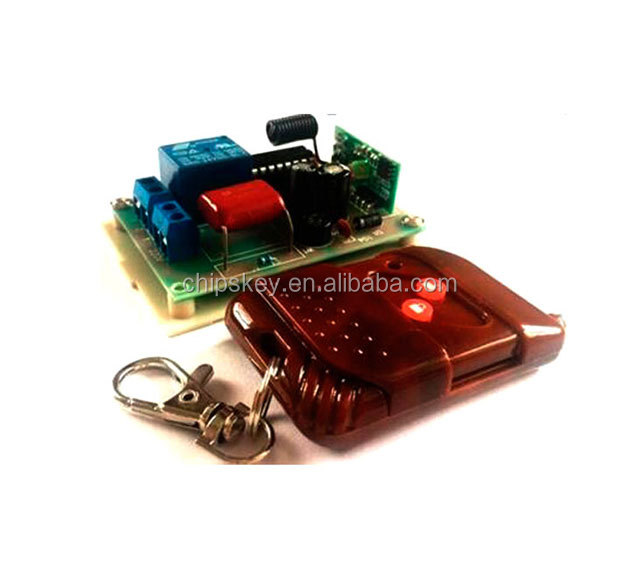

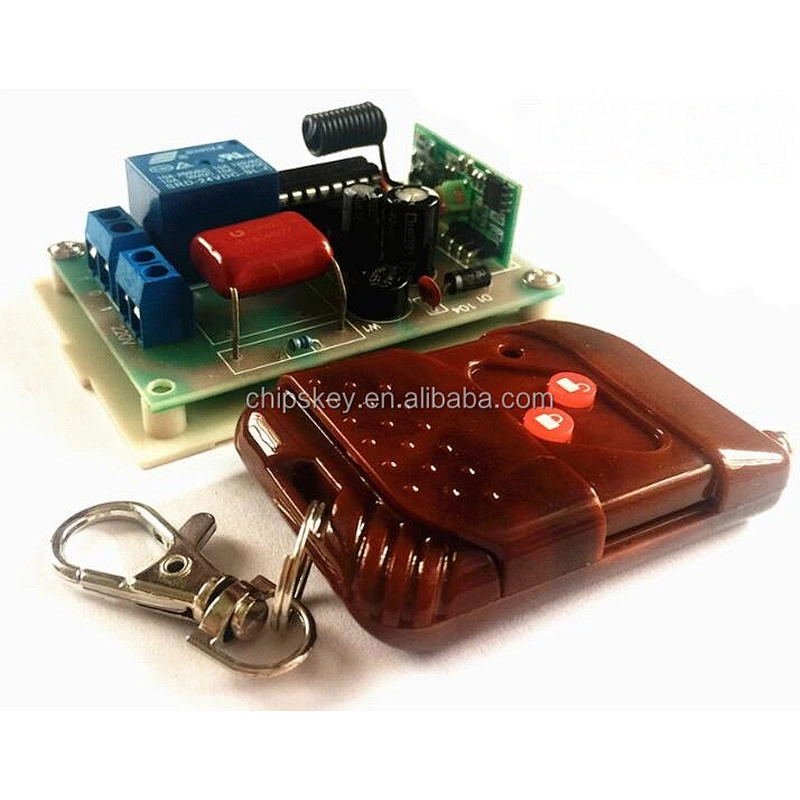

1. Product Model: LC-220V-2C
Second, the scope of application: garage doors, household appliances, switches or other areas of wireless control
Technical parameters:
1. Operating voltage: AC220V (mains 220)
2. Receiving sensitivity:> - 105dB
3. Relay contact capacity: 10A 250VAC | 10A 30VDC
4. Load power: single resistance load ≤ 1000W, inductive load ≤ 400W (need to control the larger load plus contact control) OUR is not recommended to control high power load, it is recommended that each control power at 1000W (resistive load); 600W (inductive load); 400W (motor load) below.
5. Working frequency: 433MHz-315MHZ
6. L4 (interlock: two at the same time can only have all the way to output), T4 (self-locking: two-way each other, the way to work: M4 (Jog: do not let go on the output, a let go to stop the output), L4 (interlock: Independent output, do not affect each other, click the output and then click to stop the output)
Tips: remote control button can only press a button at the same time can not hold more than two keys, or will interfere with each other to work properly.
7. Remote control distance: no interference No-load no-load test 100 meters (the actual application of radio products according to the use of different remote control distance is different, the gap is very large, there are strict requirements to buy!)
8. Load type: energy saving lamp fluorescent lamp LED light motor ... ... and so on load
9. Output: relay common / normally open / normally closed (flexible application can control a variety of voltage load)
10. Encoding: fixed code (welding code) motherboard and remote control code pin needs one by one can be, the state were: high, low, floating.

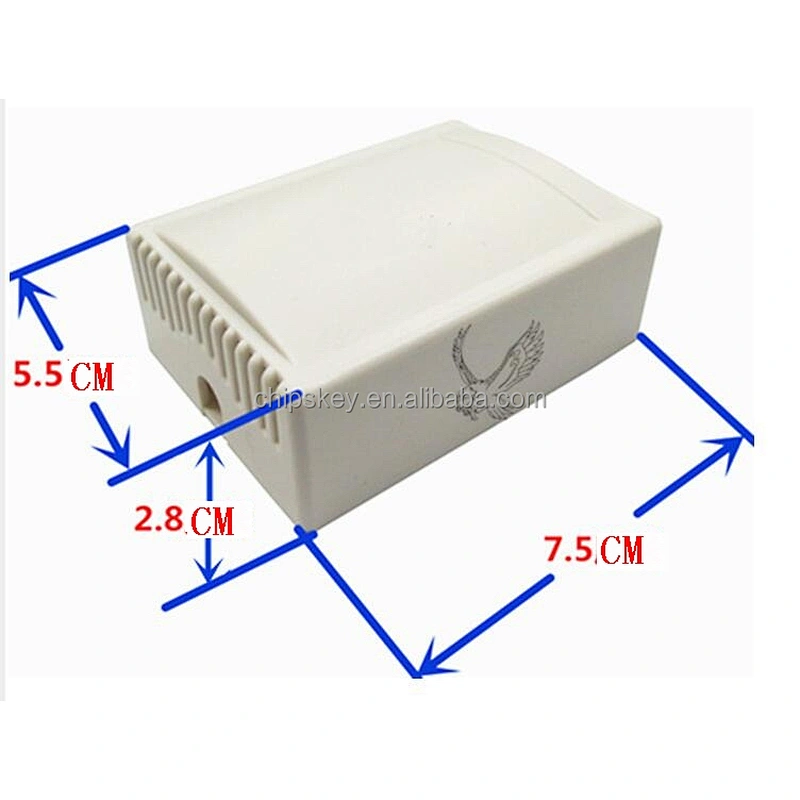

11. Configuration Description: One remote controller, 220V receiver with a full set of shell
