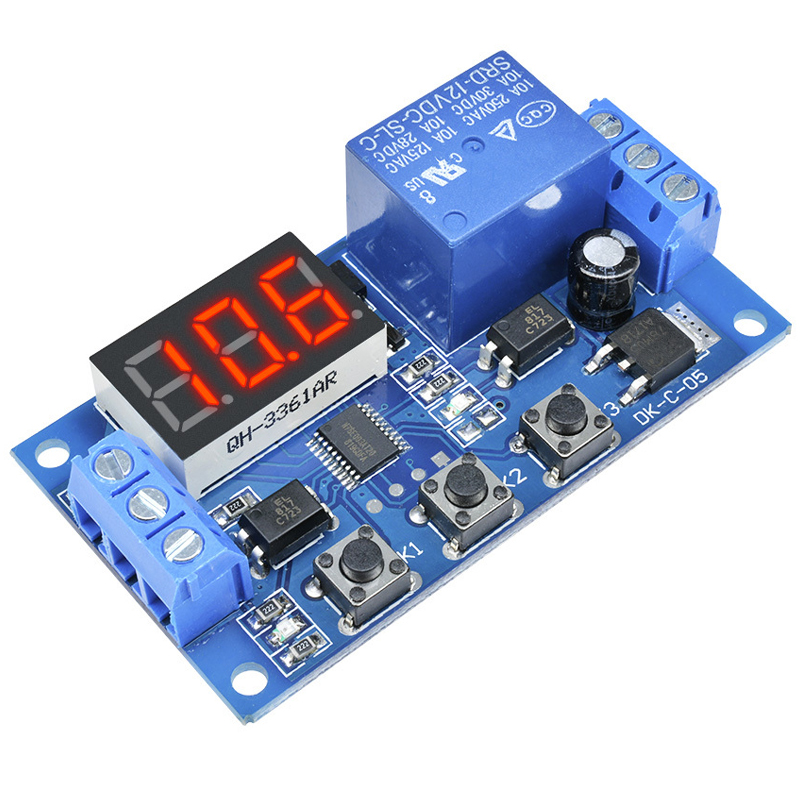

12V 1 ChannelsDelay Relay Trigger delay on and off time cycle timer switch board
Brief introduction of functions:1. The signal triggers the relay to pull in. When the time is up, the relay is disconnected. During the delay periodA: Trigger again is invalid B: Trigger again to re-timing C: Trigger the relay again to reset and terminate timing 2. The signal is triggered to start timing T1, when the time is up, the relay pulls in time T2 is disconnected (reset) The time of T1 and T2 are adjustable3. Recycling use: turn on T1, turn off T2, endless loop. The time of T1 and T2 are adjustable 4. When there is a signal, the relay is closed and kept closed. The signal disappears and the timing starts. When the time is up, the relay is disconnected. During the delay period, give the signal again, the delay is cancelled, the signal disappears, and the timing is restarted.
