- Model Number:7116
- Type:integrated circuit, Drive IC
- Place of Origin:Guangdong, China
- Brand Name:Chipskey
- Brand:Chipskey
- Part number:7116
- Lead Free Status:Lead free / RoHS Compliant
- Condition:Brand New With Original Manufacturer

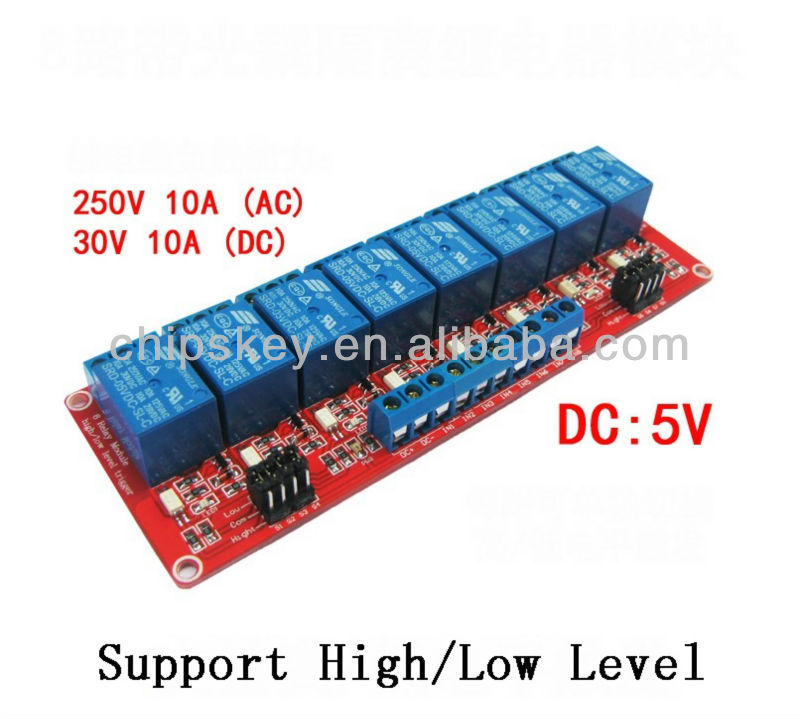

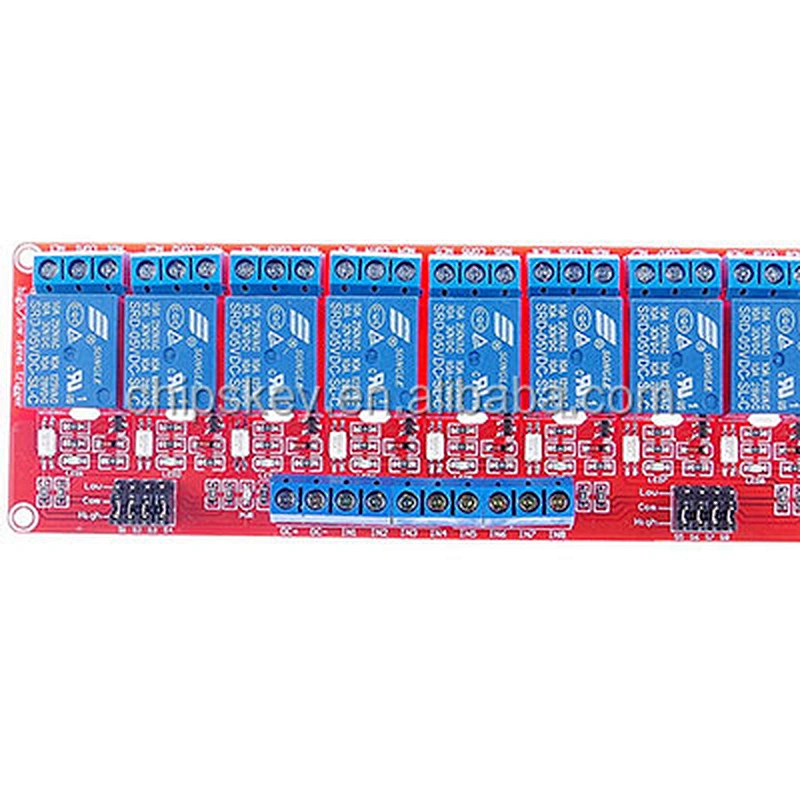

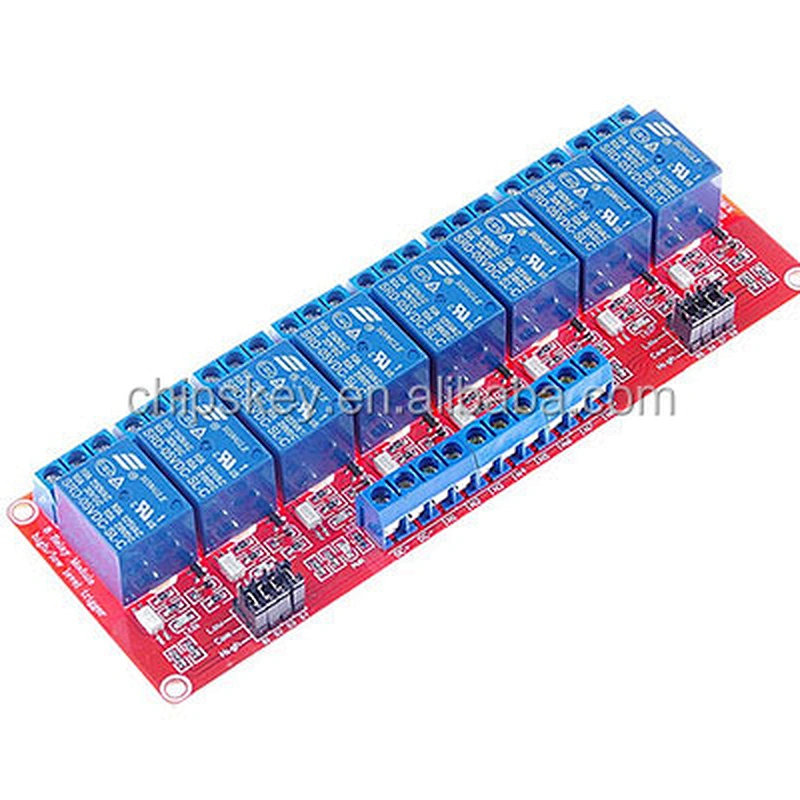

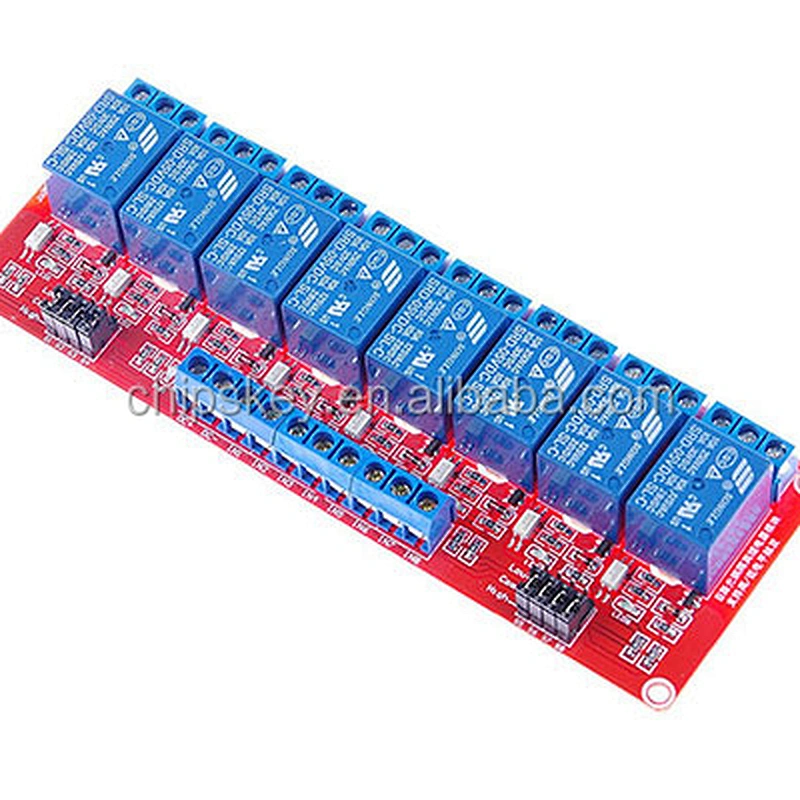

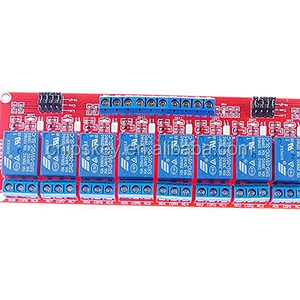

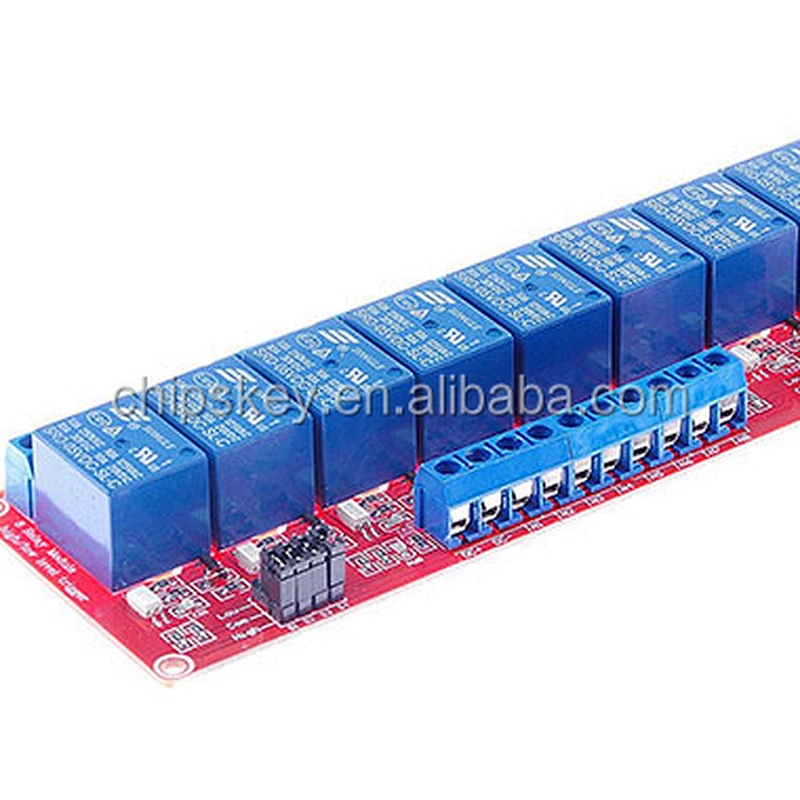

8 Channel 5V/9V/12V/24V relay with Optcoupter, each Channel can cutover high/low Level
A module description :
1, the module uses genuine quality relay , normally open interfaces Maximum load : AC 250V/10A, DC 30V/10A;
2, using SMD optocoupler isolation , driving ability , stable performance ; trigger current 5mA;
3, the module voltage is 5V, 9,12 V, 24V are available ;
4 , each way module can be set high or low triggered by jumper ;
5 , fault-tolerant design , even if the control line is broken , the relay will not operate ;
6 , the power indicator ( green ) , 8 relay status indicator ( red )
7 , interface design humane, all interfaces can be connected directly via terminal wiring leads , very convenient
8 , Module size : 141.5mm * 50mm * 18.5mm ( L * W * H )
9 , has four mounting bolts holes , hole 3.1mm, pitch 136mm * 44.5mm
Two module interface :
1, DC +: positive power supply ( voltage required by the relay , there 5V.9V.12V and 24V choice )
2, DC-: negative power connection
3, IN1-IN8: each way based on the settings , can be high or low to control the corresponding relay

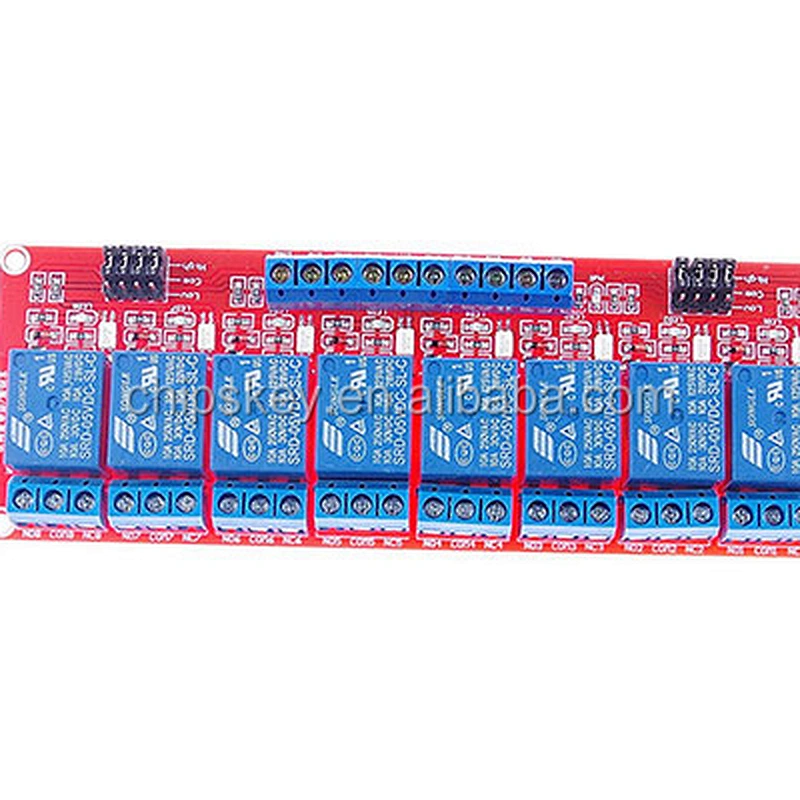

Relay outputs : 24 line interface, the interface can be directly connected to all leads , user-friendly
1, NO1 - NO8: normally open relay interfaces , relay before the vacant after the pull shorted with COM
2, COM1 - COM8: Relay Common Interface
3, NC1 - NC8: normally closed relay interface relay shorted with COM ago , after the pull- vacant
High and low trigger selection ends :
1.S1-S8 in order to relay a road -8 way high and low trigger selection ;
When 2.com with low short circuit , triggering the corresponding relay is low , while the high end of the short com high trigger
