- Model Number:11B016
- Place of Origin:Guangdong, China
- Brand Name:Chipskey
- Power supply voltage:5-7V
- Operating temperature:-10-65 degrees Celsius
- Current consumption:20mA maximum
- Minimum particle detection value:0.8 microns
- Sensitivity:0.9V typical
- Working temperature:-10 ~ 65 ℃
- Storage temperature:-20 ~ 80 ℃
- Size:46mm *30mm* 17.6mm
- Part number:11B016

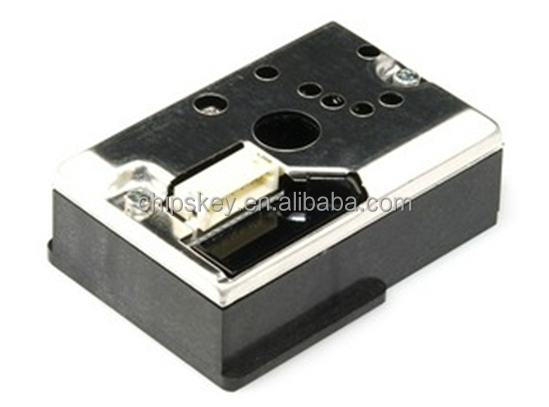

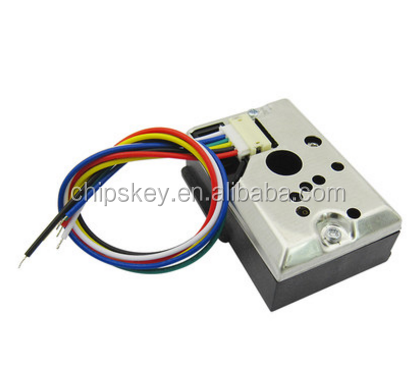

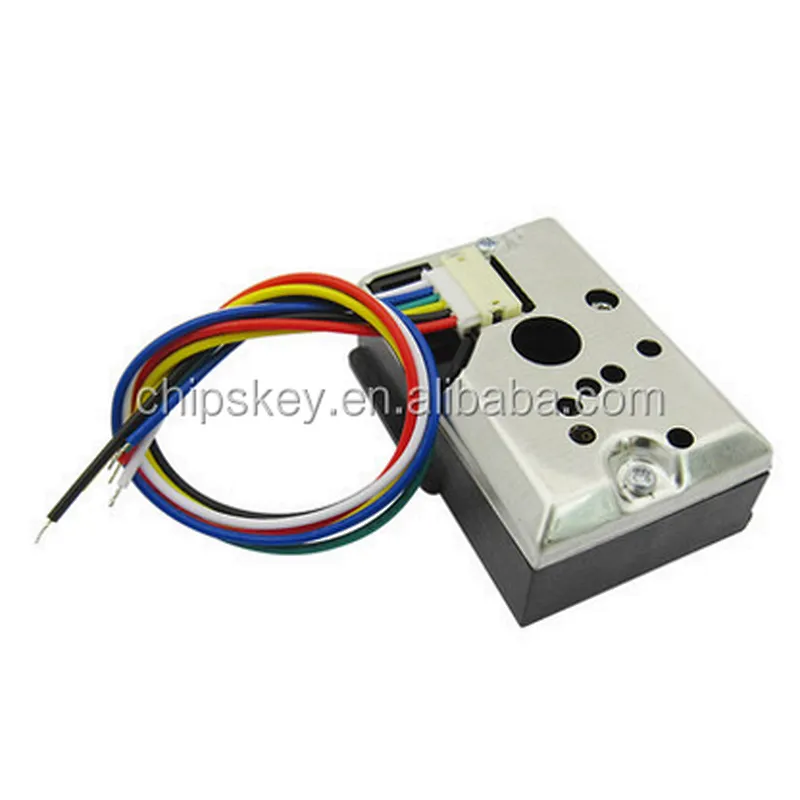

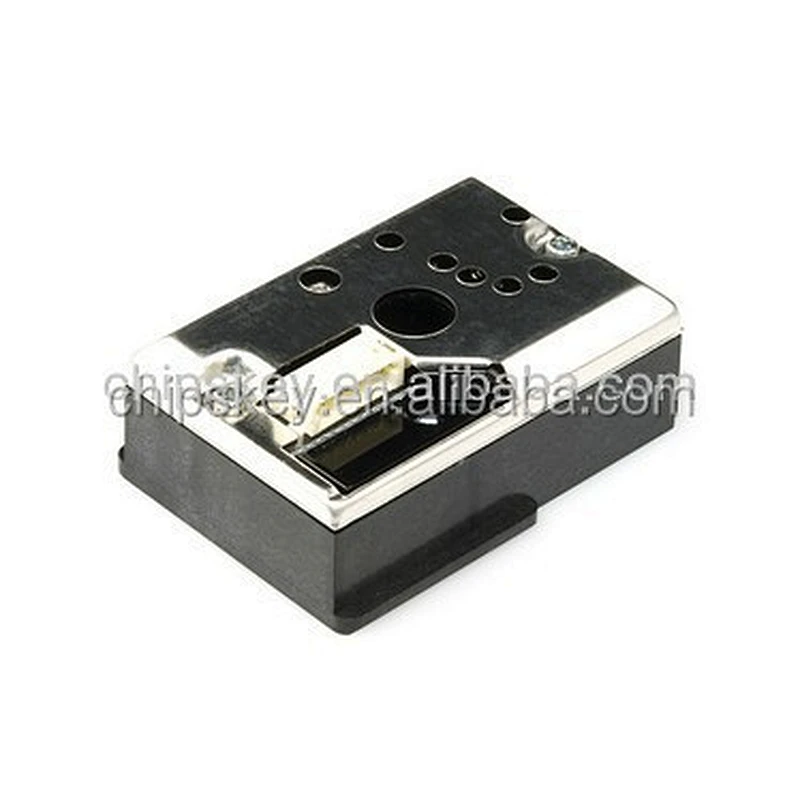

PM2.5 dust sensor GP2Y1050AU0F With Cable
| Datasheets | GP2Y1010AU0F |
|---|---|
| Product Photos | GP2Y1010AU0F |
| PCN Assembly/Origin | GP2Y1010AU0F Internal 18/April/2007 |
| Standard Package | 250 |
| Category | Sensors, Transducers |
| Family | Dust Sensors |
| Series | - |
| Type | Infrared |
| Output Type | - |
| Sensitivity | 0.5V/(0.1mg/m3) |
| Current - DC Forward (If) (Max) | 20mA |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Mounting Type | Chassis Mount |
| Operating Temperature | -10°C ~ 65°C |
| Package / Case | Module, Single Pass Through |
| Online Catalog | GP2Y1010AU0F |
| Other Names | 425-2068 |
