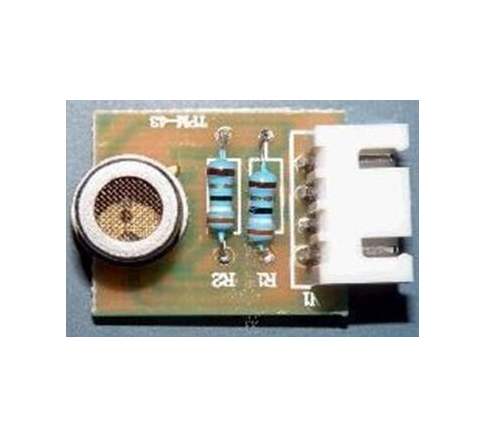

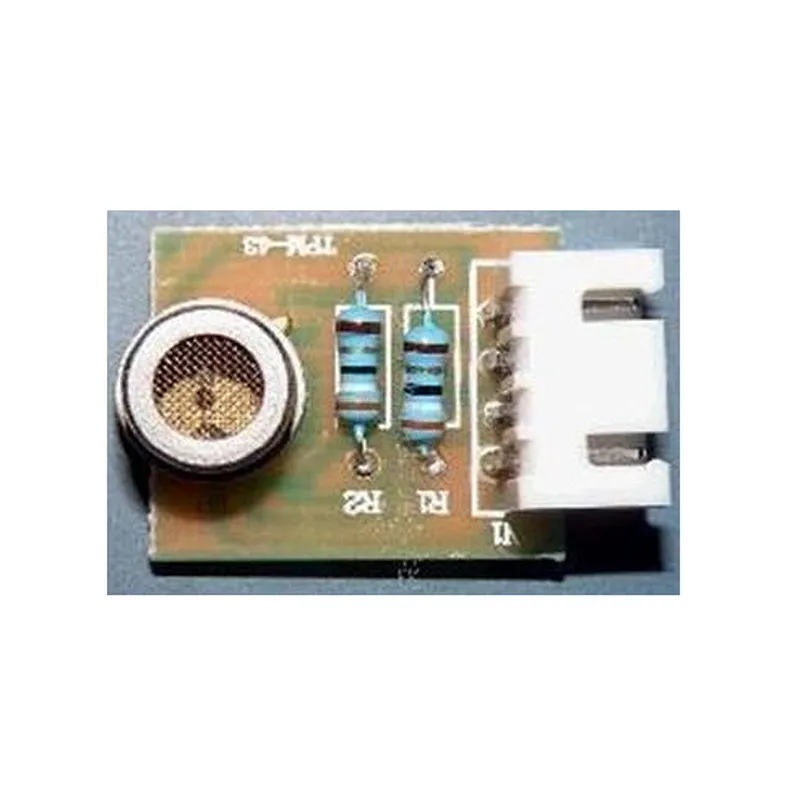

Air quality module; smart air quality testing monitoring module For Arduinos

• Model Number:2088
• Type:Other
• Place of Origin:China
• Part number:Air Sensor
• Brand:MIC
• Lead Free Status:Lead free / RoHS Compliant
• Condition:Brand New With Original Manufacturer
• Packaging:Reel Tray Tube
• Warranty:360days
• Operating Temperature:-40C ~ 125C
• Dissipation Power:1W-6W
• Application:Watch
• Supply Voltage:1.5V-6V

Air quality module; smart air quality testing monitoring module

"Specification:
Model ZP07-MP901
Sensor Air quality sensor
Target Gas formaldehyde, benzene, carbon monoxide, ammonia, hydrogen, alcohol, smoke of cigarette, essence &etc.
Physical Interface XH2.54-4P terminal sockets
Output Data 0-10 grade pollution signal
Working Voltage 5.0±0.2V DC (No voltage reverse connect protection)
Output Data TTL level (200ohm protected resistance inside)
Working Current ≤60mA
Warm Up Time ≤3 mins
Response Time ≤20s
Recovery Time ≤60s
Operating Temperature 0~50℃
Operating Humidity ≤95%RH
Storage Temperature -20~60℃
Storage Humidity ≤60%RH
Size 24×20×15mm(L×W×H)
Weight ≤ 20g
Sensitivity Attenuator ≤1%/year
Life Span ≥5 years"
