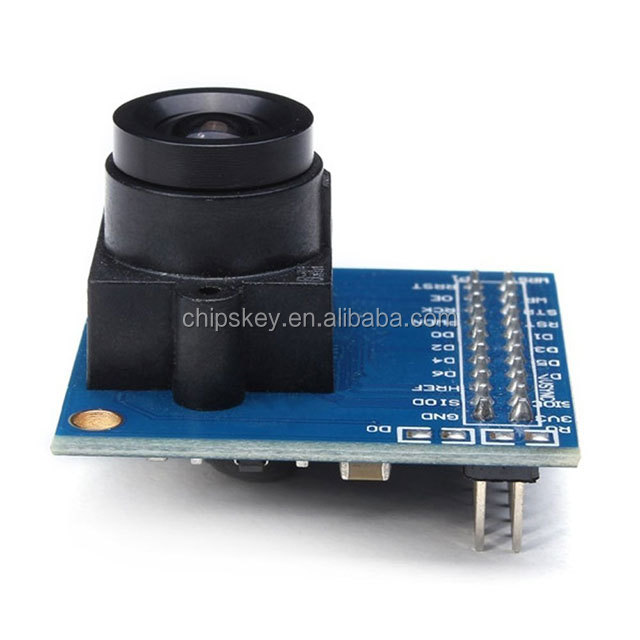

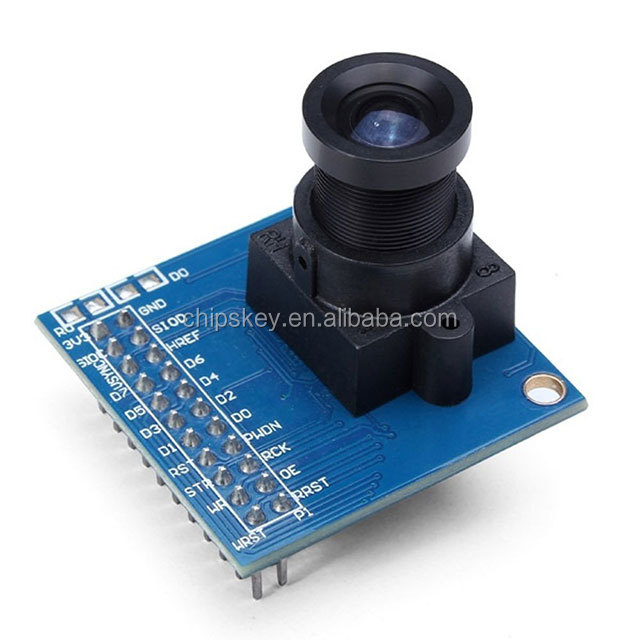

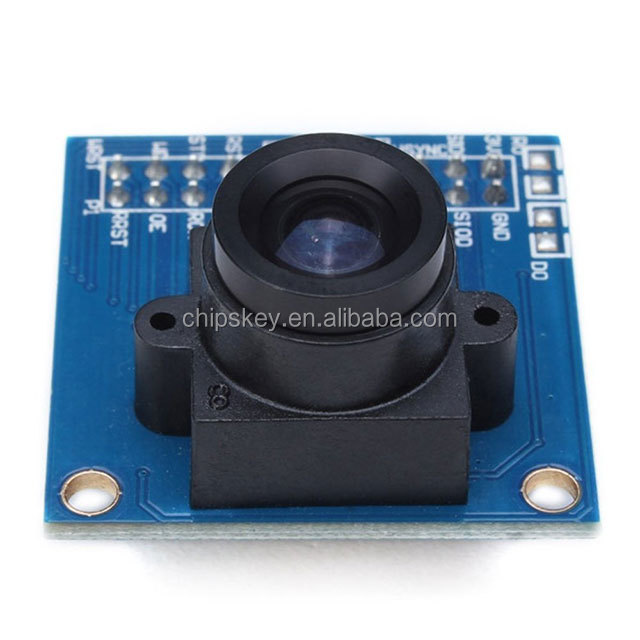

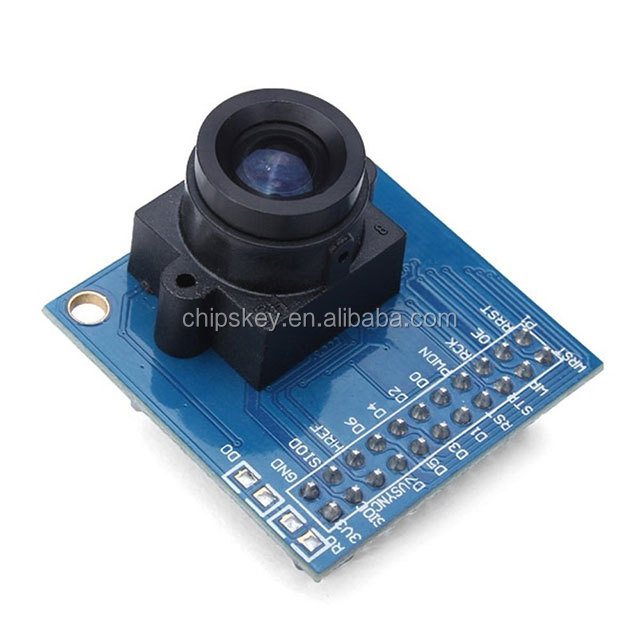

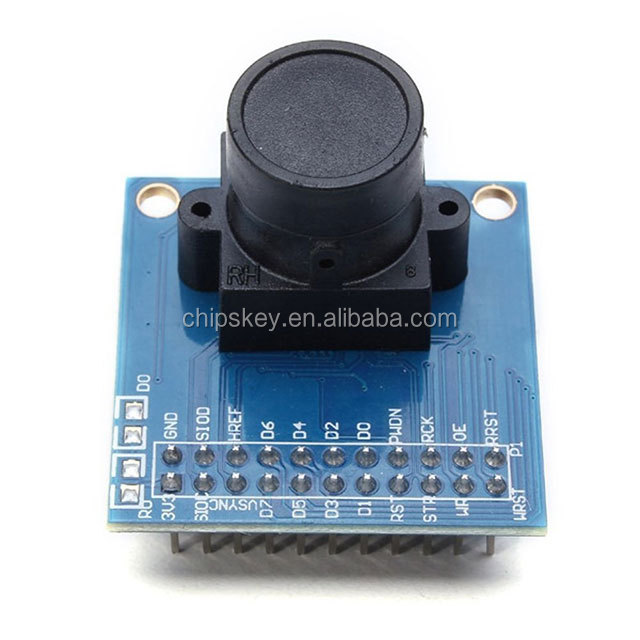

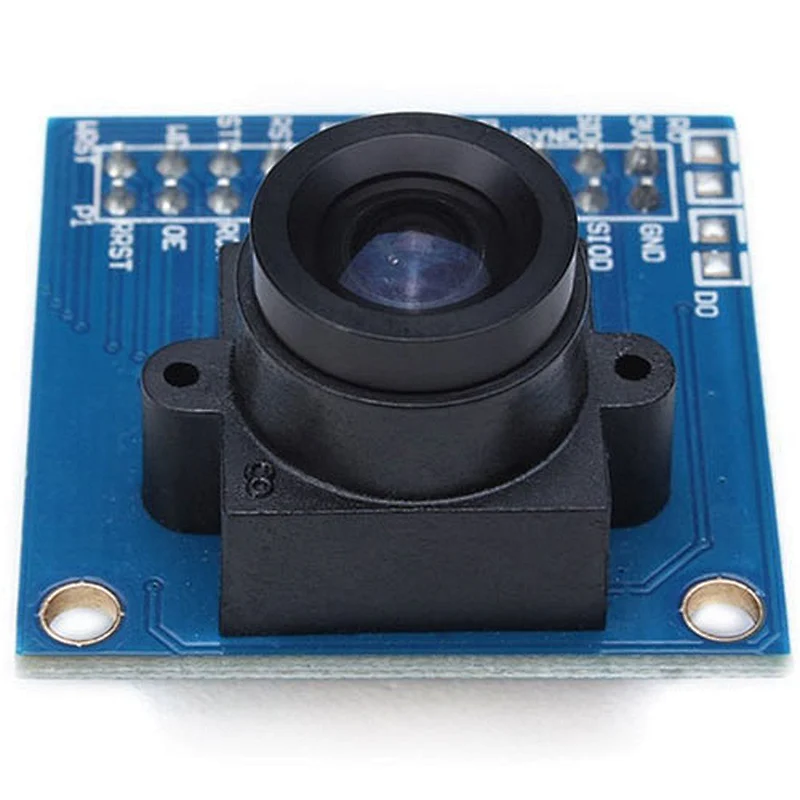

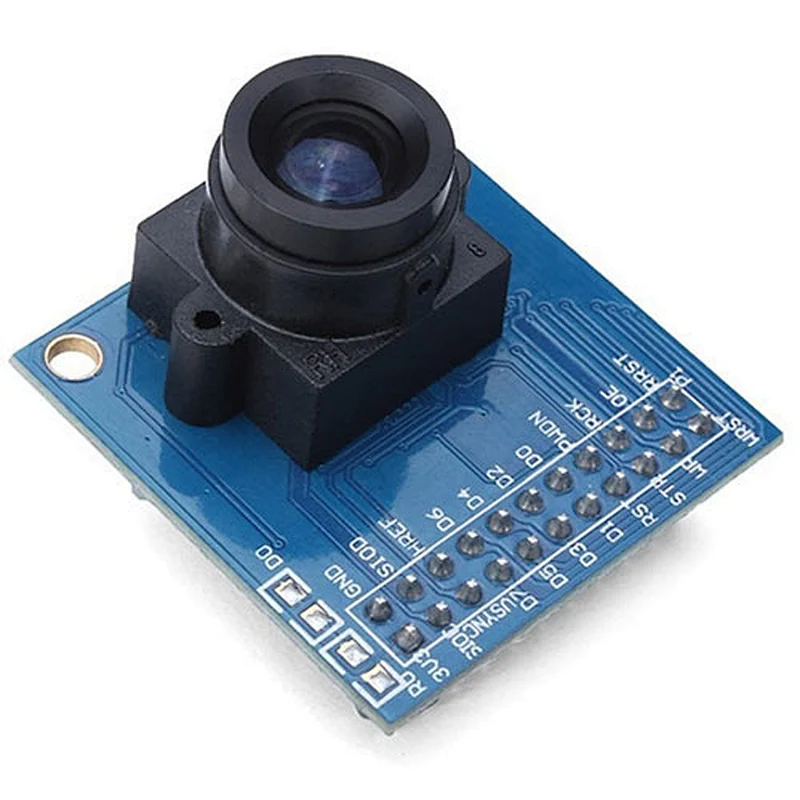

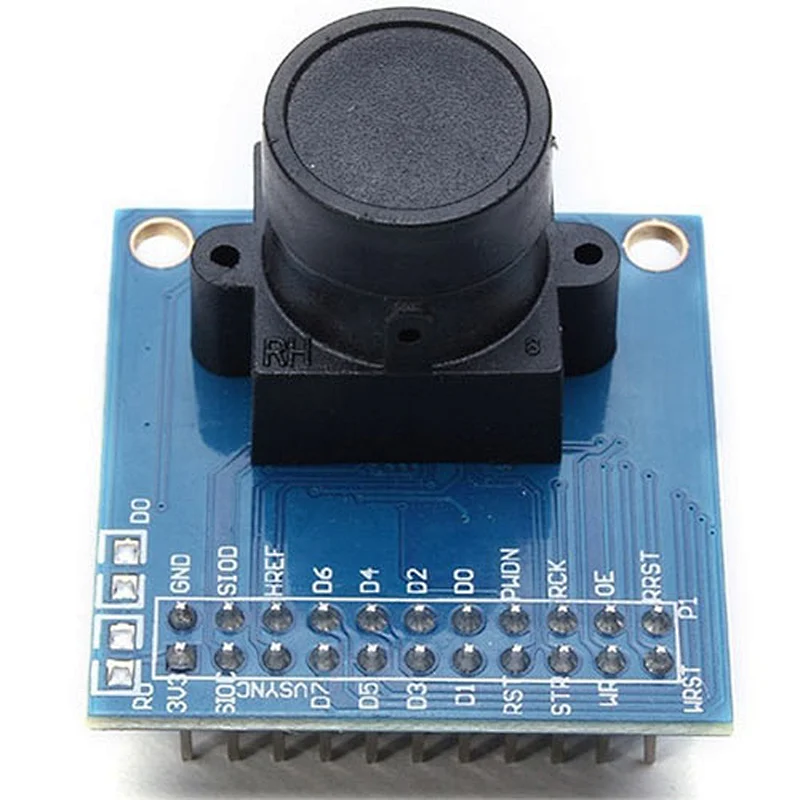

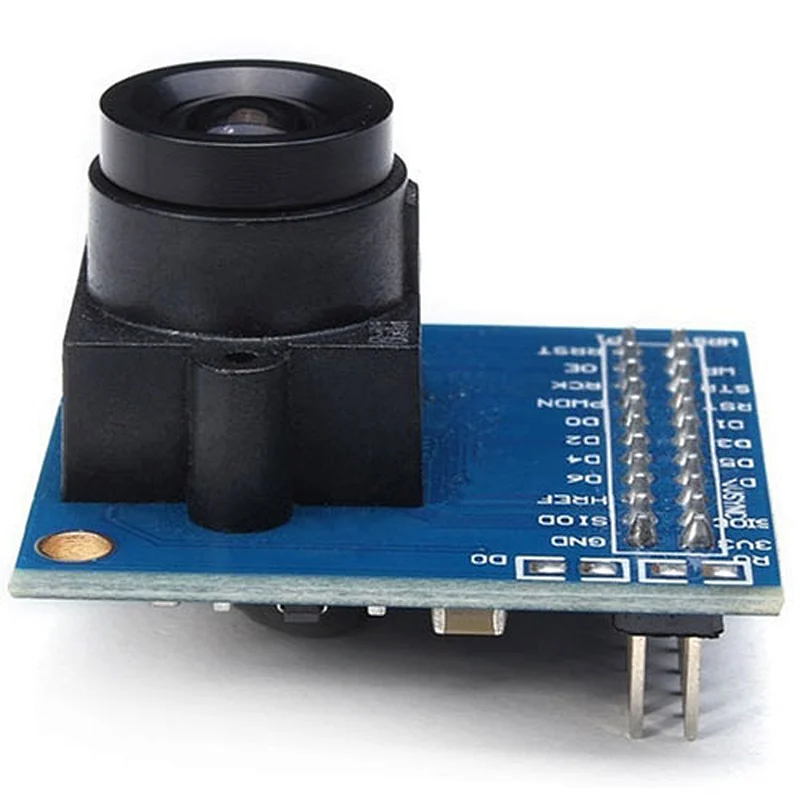

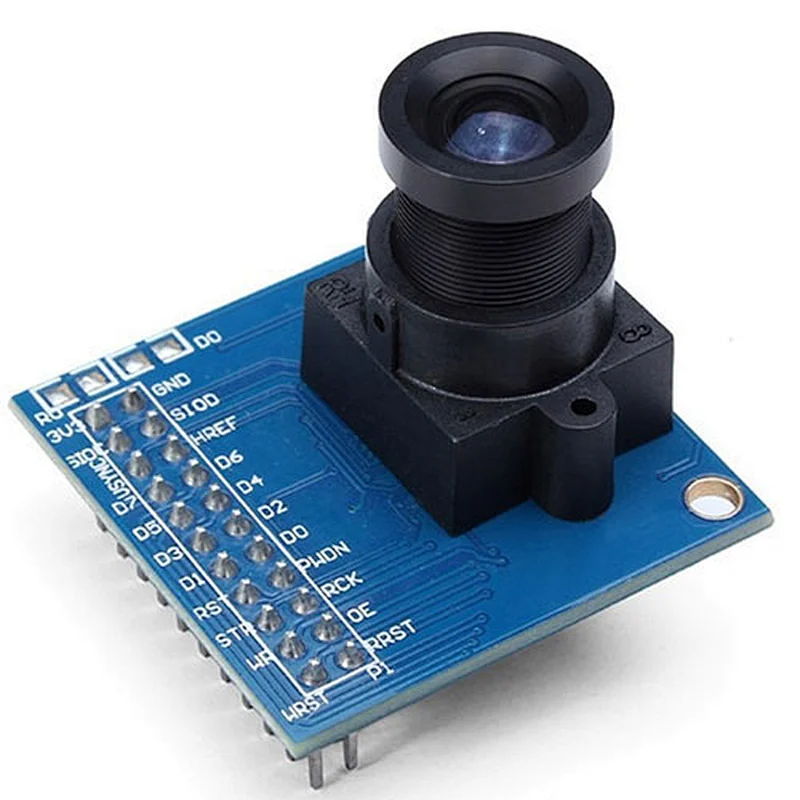

ov7670 camera microcontrolle module

• Model Number:ov7670
• Place of Origin:Guangdong, China
• Brand Name:chipskey
• Brand:Chipskey
• Part number:4015

ov7670 camera microcontrolle module

Photographic array: 640 x 480
Voltage: 1.8V DV +/- 10%
Analog voltage: 2.45V DV to 3.0V
ID voltage: 1.7V to 3.0V
Power consumption: Working: 60mW / 15fpsVGAYUV; Sleep: <20uA
Operating temperature: -30'C to 70'C
Steady operation: 0~50'C
Output format(8 bits): YUV/YCbCr4:2:2, RGB565/555/444, GRB4:2:2, Raw RGB Data
Optical size: 1/6"
Field angle: 25 degree
Max. frame rate: 30fps VGA
Sensitivity: 1.3V/(Lux-sec)
Dynamic range: 52dB

Dimensions: 0.83 in x 0.83 in x 1.06 in (2.1 cm x 2.1 cm x 2.7 cm)
Weight: 0.18 oz (5 g)
