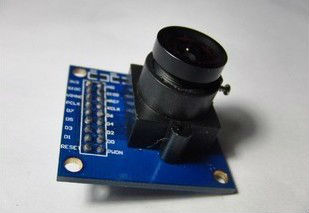

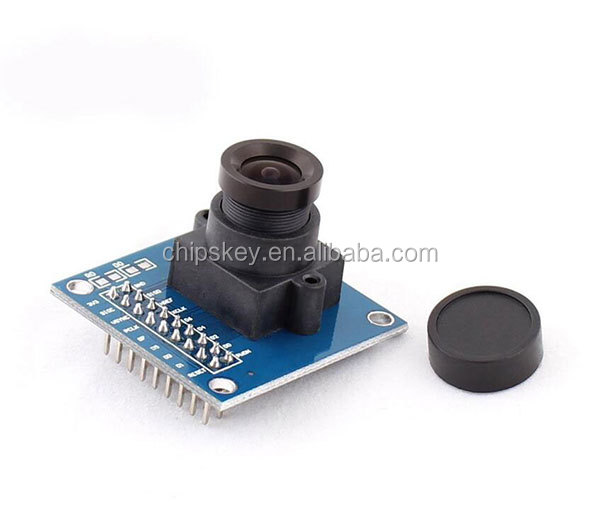

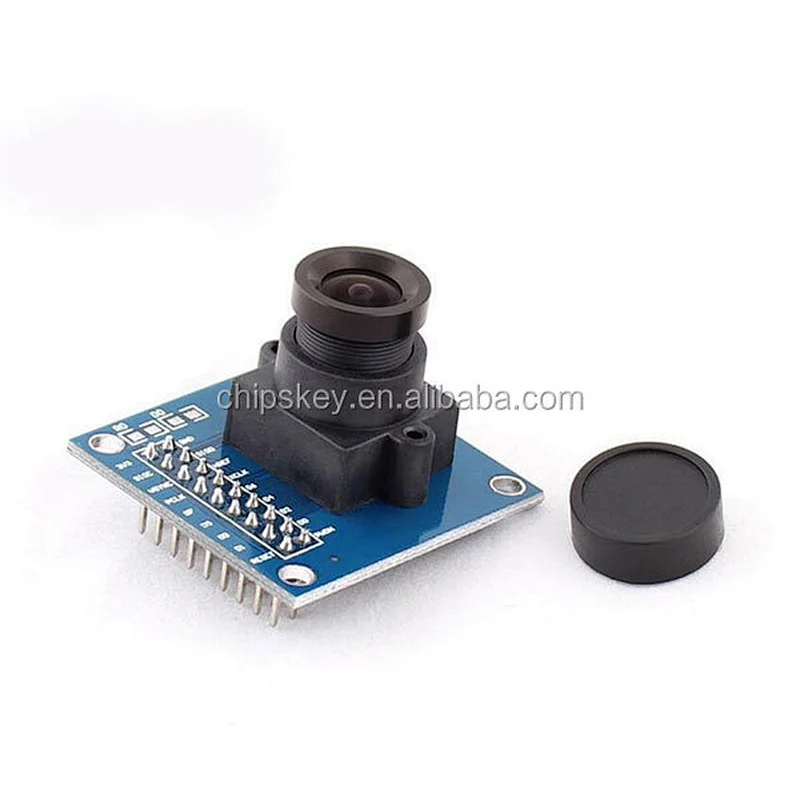

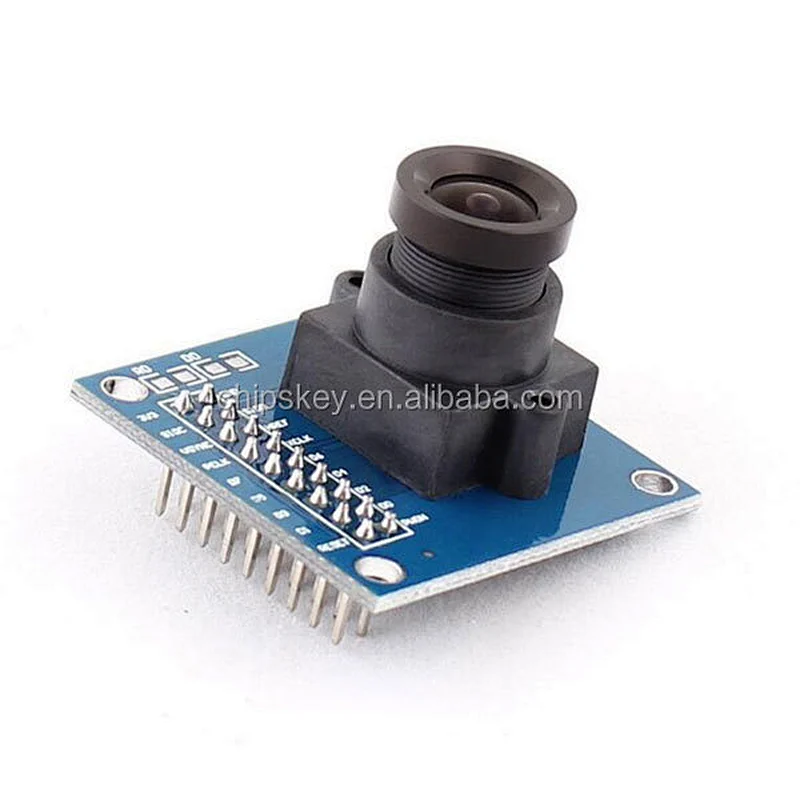

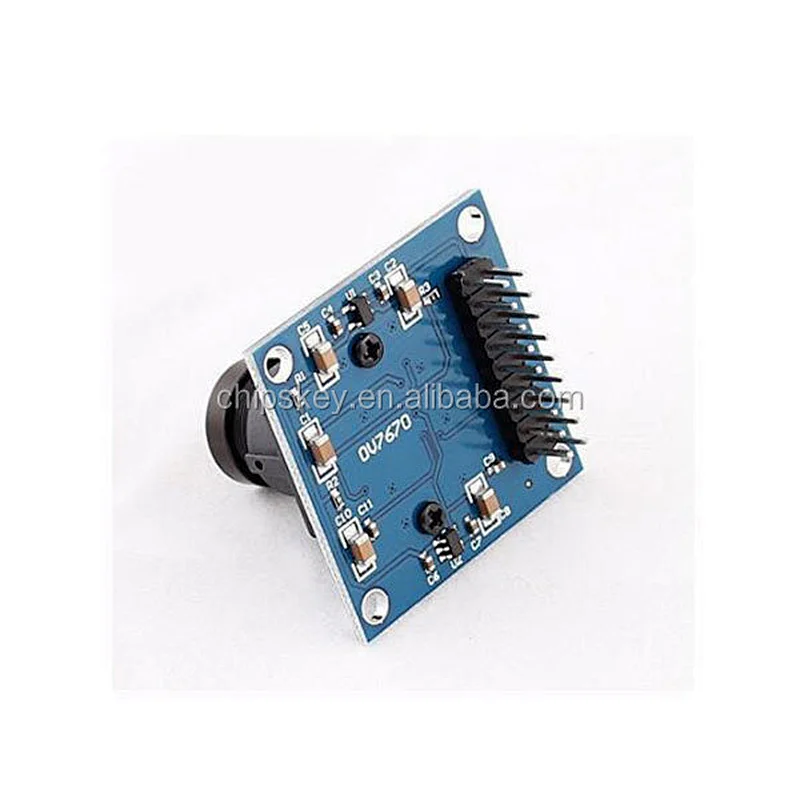

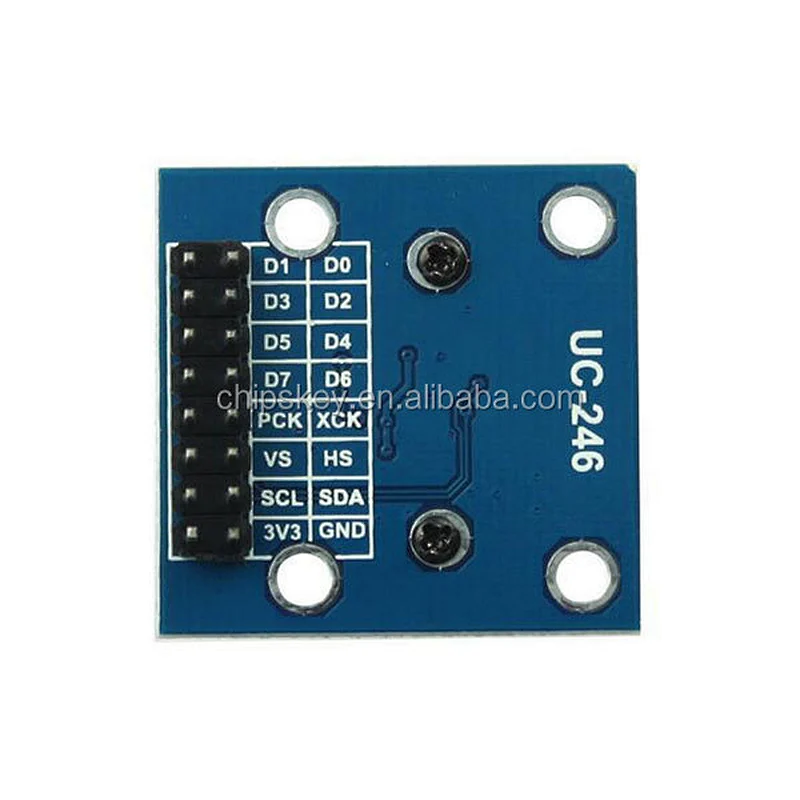

VGA OV7670 3.6mm Camera Module 640X480 SCCB Compatible I2C 3.6um x 3.6um

Description
* High sensitivity for low light applications
* Low voltage suitable for embedded applications
* Standard SCCB interface, compatible with I2C Interface
* RawRGB, RGB (GRB4: 2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) output format
* support for VGA, CIF, and from a variety of sizes CIF to 40x30
* VarioPixel sub-sampling methods
* Auto affect the control features include: automatic exposure control, automatic gain control, automatic white balance, automatic elimination of streaks of light, automatic black level calibration. Image quality control including color saturation, hue, gamma, sharpness ANTI_BLOOM
* ISP has a compensation function to eliminate noise and dead pixels
* support for image scaling
* loss of lens light compensation
* 50/60Hz auto-detection
* Saturation adjust (UV adjustment)
* adjust edge enhancement
* automatic adjustment of noise reduction
Key parameters
Photographic array 640X480
IO voltage of 2.5V to 3.0V (internal LDO for nuclear power 1.8V)
Power work 60mW/15fpsVGAYUV
Sleep<20μA
Stable operation 0 *C to 50 *C
Output format (8-bit) YUV/YCbCr4: 2:2 RGB565/555/444 GRB4: 2:2 Raw RGB Data
Optical size of 1 / 6"
25 ° field of view
The maximum rate of 30fps VGA Chen Sensitivity 1.3V / (Lux-sec)
46 dB SNR
52 dB dynamic range
View Mode Progressive
E-1 line to 510 line exposure
3.6μm x 3.6μm pixel size
Dark Current 12 mV / s at 60 *C
