- Model Number:28230
- Type:Other
- Place of Origin:China
- Color:blue
- Weight:0.0
- SKU:28230

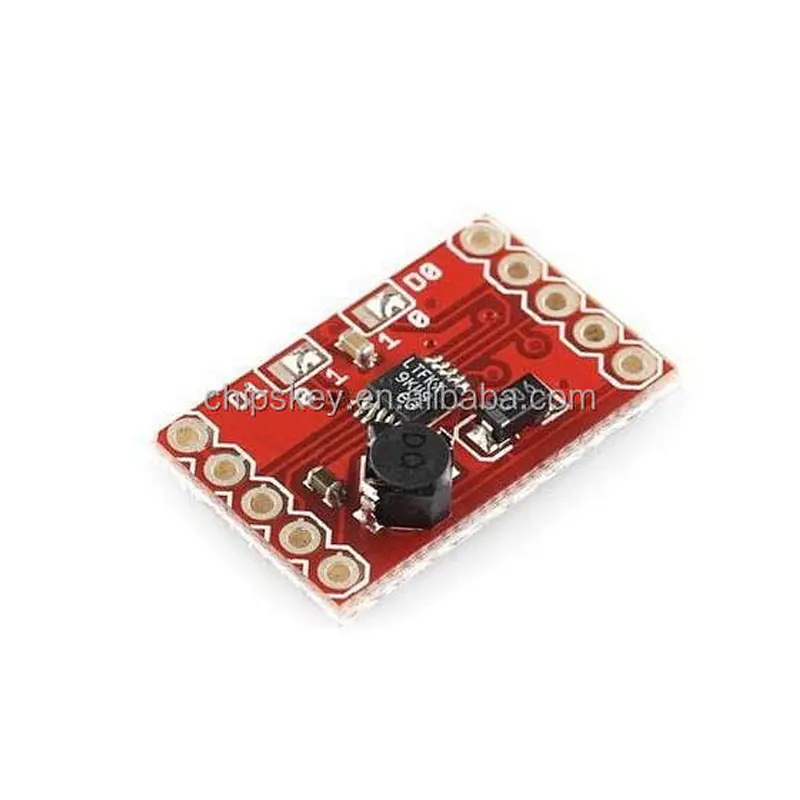

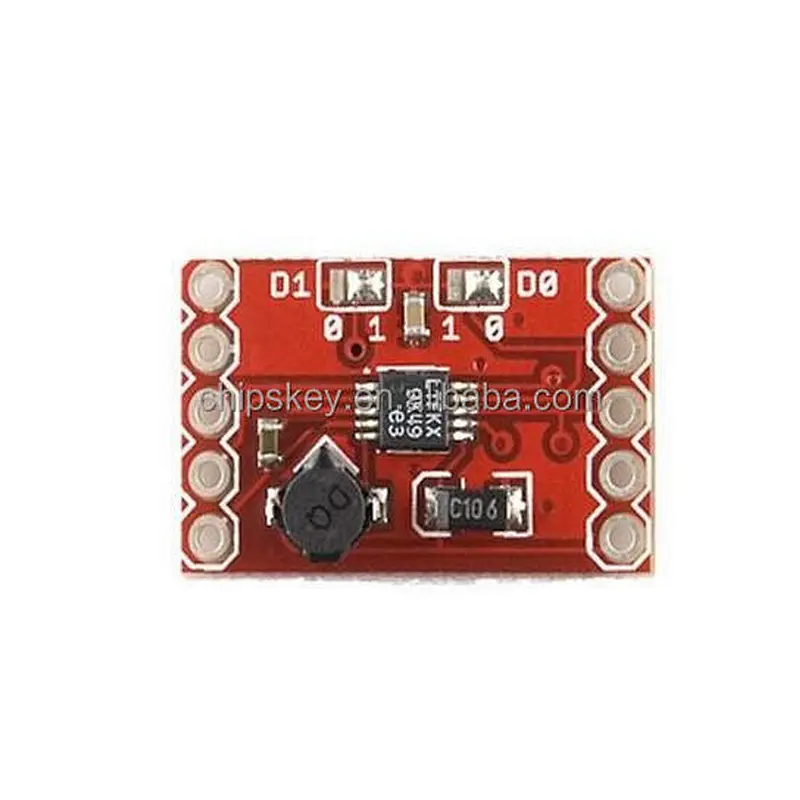

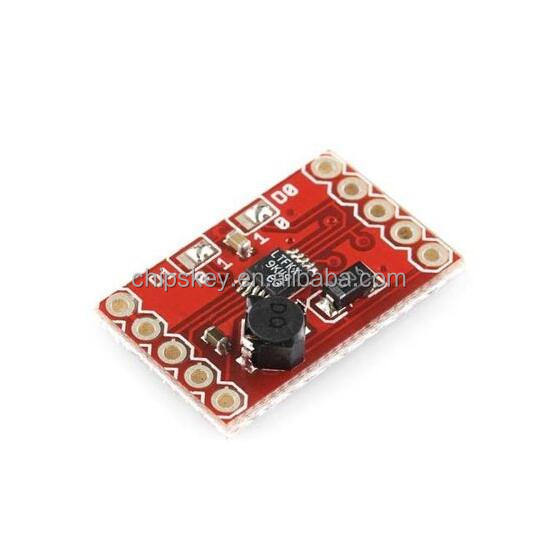

LTC3588 Energy Harvester Breakout Module
Product description
Description:
This breakout uses the LTC3588 Piezoelectric Energy Harvester from Linear Technologies.The board can simply be used as a standalone nanopower buck regulator.This board can be used not only for harvesting piezoelectric energy, but solar energy as well. There is a bridge rectified input for piezo elements (PZ1 and PZ2) and a direct input (VIN) for DC sources.
In regulation, the LTC3588 enters a sleep state in which both input and output quiescent currents are minimal. The buck converter turns on and off as needed to maintain regulation.An ultralow quiescent current undervoltage lockout (UVLO) mode with a wide hysteresis window allows charge to accumulate on an input capacitor until the buck converter can ef?ciently transfer a portion of the stored charge to the output.
Features:
- High Ef?ciency Integrated Hysteretic Buck DC/DC
- Input Protective Shunt ¨C Up to 25mA Pull-Down at VIN ≥ 20V
- Wide Input Undervoltage Lockout (UVLO) Range
- 2.7V to 20V Input Operating Rang
