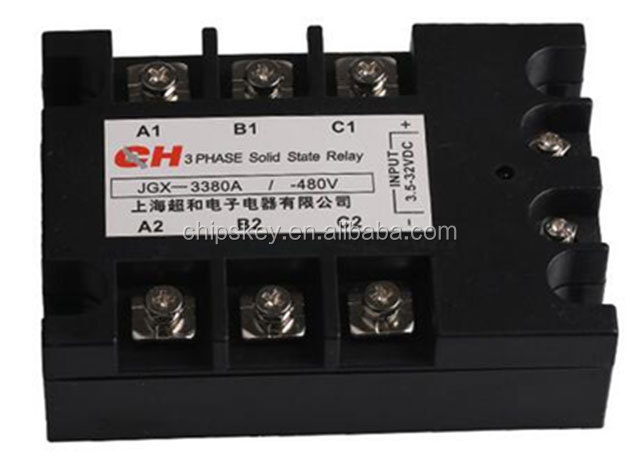

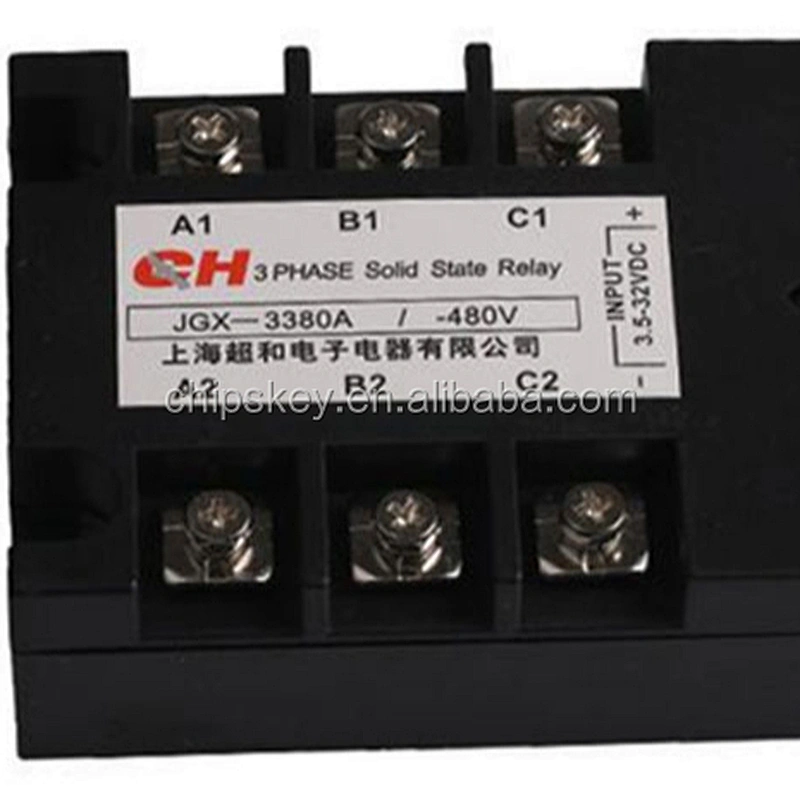

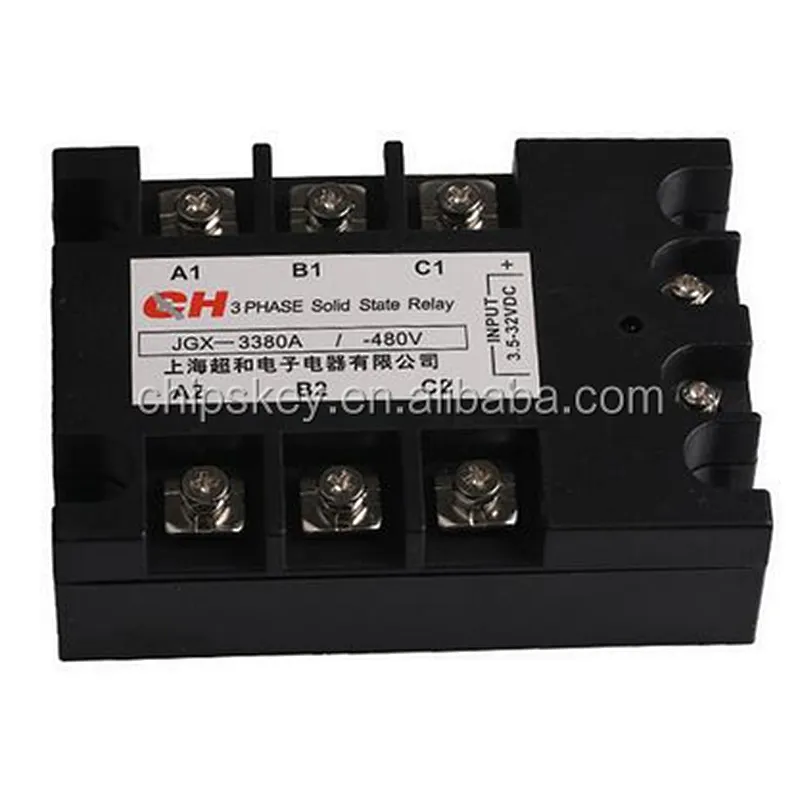

JGX-3380A 3.5-32VDC/480VAC 80A DC to AC 3 Phase SSR Solid State Relay w Indicator Light

• Place of Origin:Guangdong, China
• Brand Name:Chipskey
• Model Number:18i137

JGX-3380A  3.5-32VDC/480VAC 80A DC to AC 3 Phase SSR Solid State Relay w Indicator Light

ORDERING
3340A 3360A 3380A 33100A

  Dimensions 105.0L × 74.0W × 33.0H


  Output load voltage 480VAC
  Output load current 140A, 60A, 80A, 100A,
  Input control voltage
3.5-32VDC
  Input control current
DC10-68mA
  State voltage drop ≤1.5V
  Off-state leakage current ≤10mA
  Off-state time ≤10mS
  Dielectric strength 2500VAC
  Insulation resistance 1000MΩ / 500VDC
  Ambient temperature -30 ℃ - + 75 ℃
  Resettlement Bolt
  LED work instructions
  Weight 450g
