- Model Number:5051
- Place of Origin:Guangdong, China
- Brand Name:Chipskey
- Part number:5051
- Brand:Chipskey
- Category:Sensor

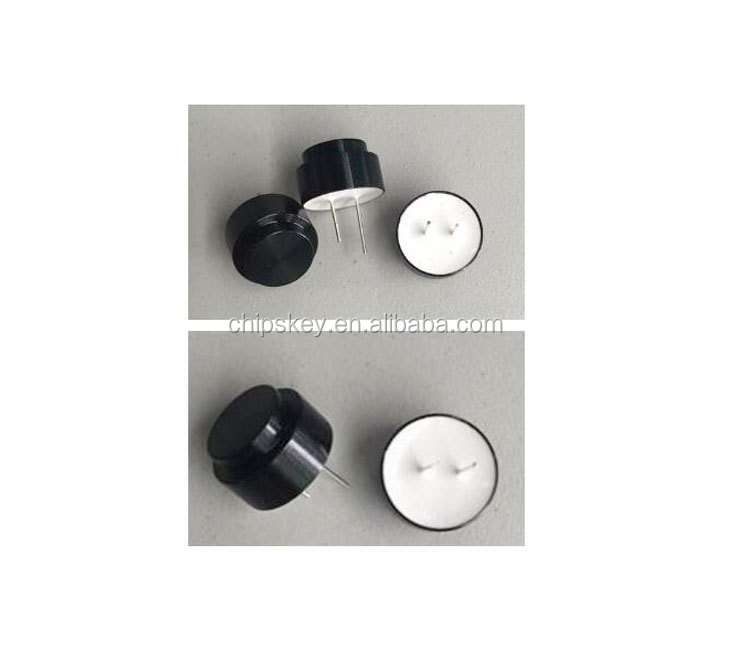

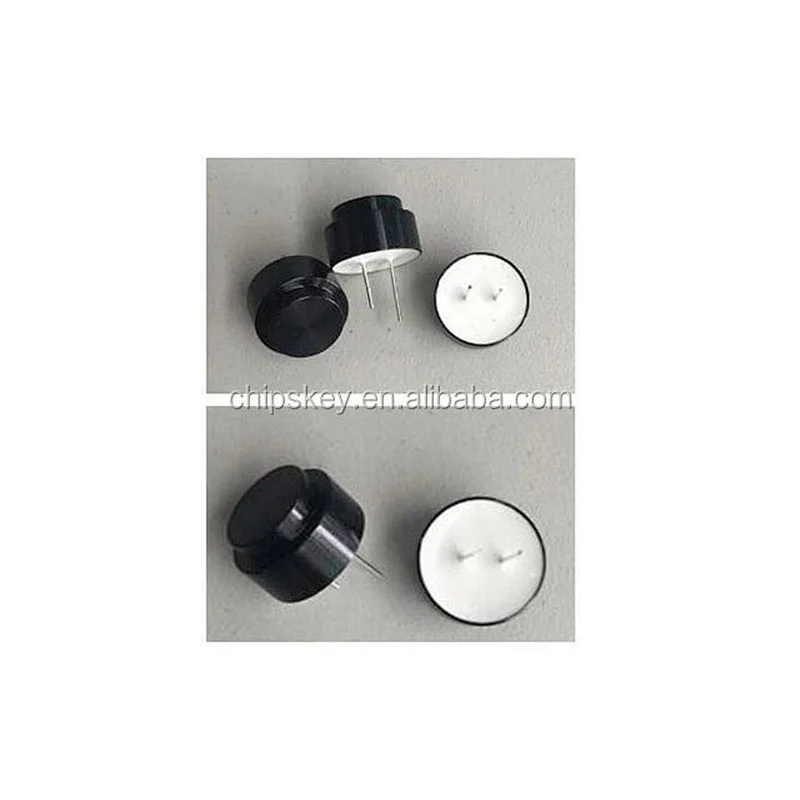

integrated waterproof ultrasonic 16MM single Transceiver
"
Technical parameters | |
Construction | Water proof type |
Using method | Dual use |
Center frequency | 40.0±1.0KHz |
Sound pressure level | 105dB min. |
Sensitivity | -82dB min. |
Capacitance | 1900Pf±20% |
Ringing | 1.2ms max. |
Maximum input voltage | 150Vp-p |
Directivity | 80°±15° (-6dB) |
Operating temperature | -30°C~+70°C |
Storage Temperature | -40°C~+80°C |
"

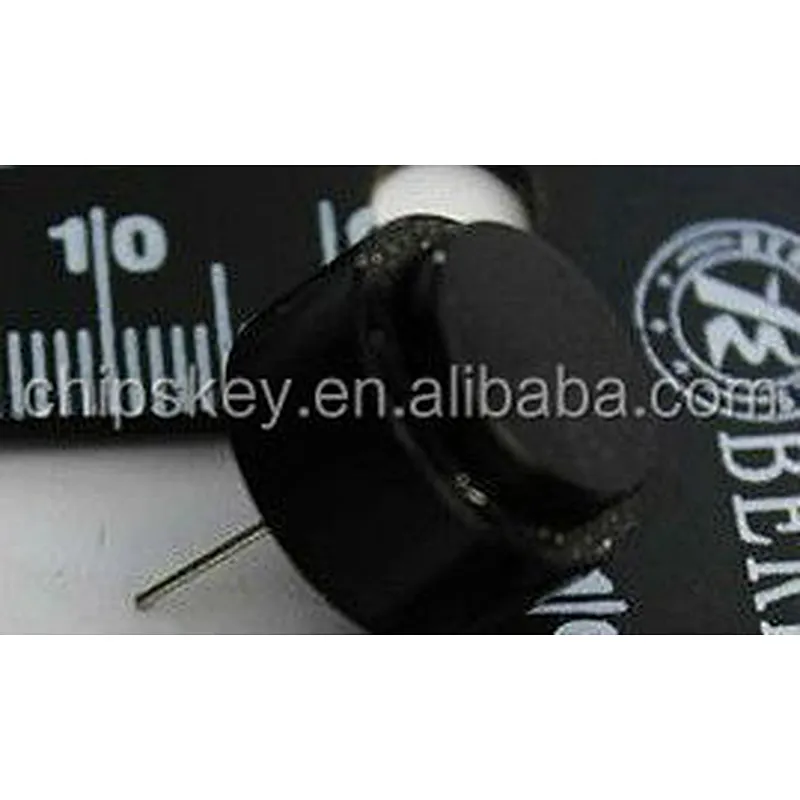

16MM integration ultrasonic Transceiver and Receiver double functions
(diameter 16mm)
1 Nominal Frequency (KHz): 40KHz
2 emission sound pressure at10V (0dB = 0.02mPa): ≥ 117dB
3 receiver sensitivity at40KHz (0dB = V / ubar): ≥-65dB
4 Capacitance at1KHz, <1V (PF): 2000 ± 30%
Using Method Transmitter
Construction Open structure type
Center frequency 40.0±1.0KHz
Sound pressure level 112dB min.
Sensitivity
Capacitance 2400Pf±20%
Maximum input voltage 60Vp-p
Directivity 60°±15° (-6dB)
Operating temperature -20°C~+70°C
Storage Temperature -40°C~+85°C
Weight 2.2g
