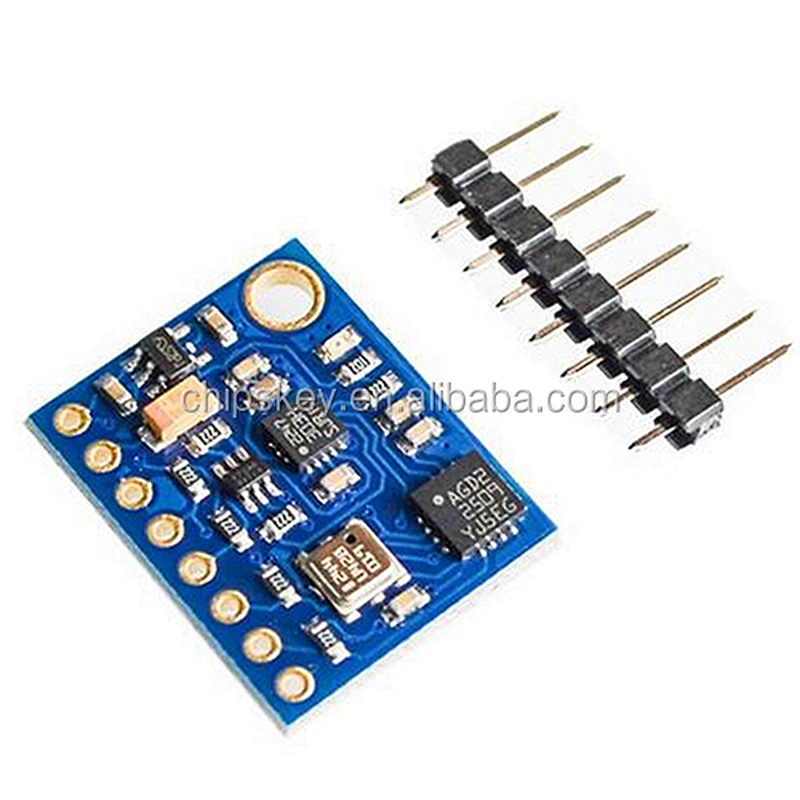

GY-89 10DOF LSM303D+L3GD20 +BMP180 Sensor

• Model Number:13d098
• Place of Origin:Guangdong, China
• Brand Name:Chipskey
• Lead Free Status:Lead free / RoHS Compliant
• Condition:Brand New With Original Manufacturer
• Maximum Operating Temperature:-40C ~ 125C
• Warranty:360days
• Operating Temperature:-40C ~ 125C
• Dissipation Power:1W-6W
• Supply Voltage:1.5V-6V

GY-89 10DOF LSM303D+L3GD20 +BMP180 Sensor

100% brand new and high quality
Dimensions: 22 mm × 17 mm
Operating voltage: 2.5 V to 5.5 V
Supply current: 8mA
Output format (I2C/SPI):
Gyro: one 16-bit reading per axis
Accelerometer: one 16-bit reading per axis
Magnetometer: one 16-bit reading per axis
Barometer: 24-bit pressure reading (I2C only)

Sensitivity range:
Gyro: ±245, ±500, or ±2000°/s
Accelerometer: ±2, ±4, ±6, ±8, or ±16 g
Magnetometer: ±2, ±4, ±8, or ±12 gauss
Barometer: 300hPato 1110hPa
