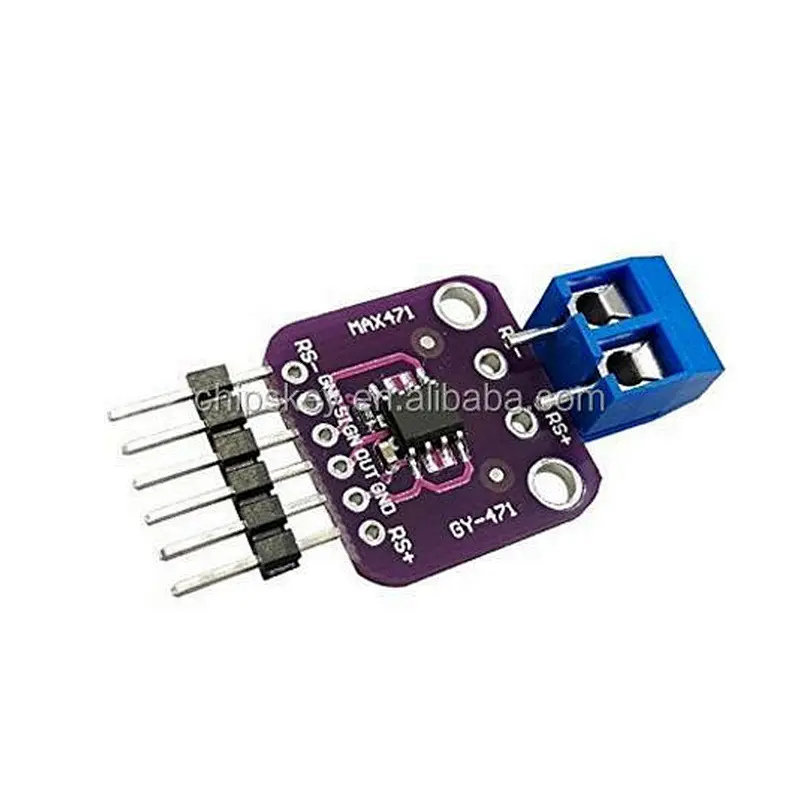

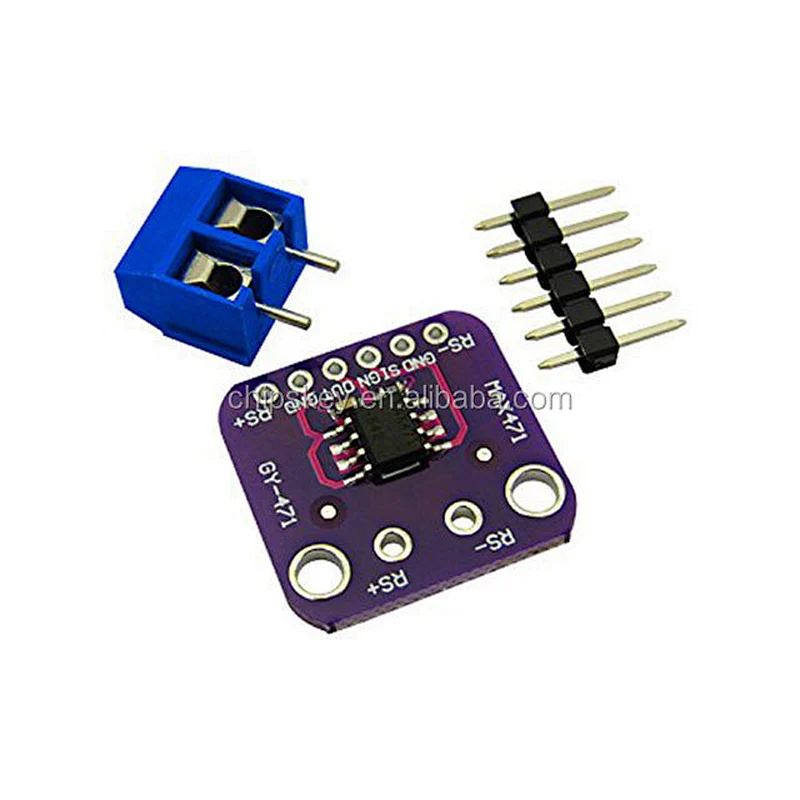

GY-471 3A Range MAX471 Current Module Detection Sensor

• Model Number:28261
• Type:Sensor Development Boards and Kits
• Place of Origin:China
• Color:blue
• Weight:0.0

GY-471 3A Range MAX471 Current Module Detection Sensor

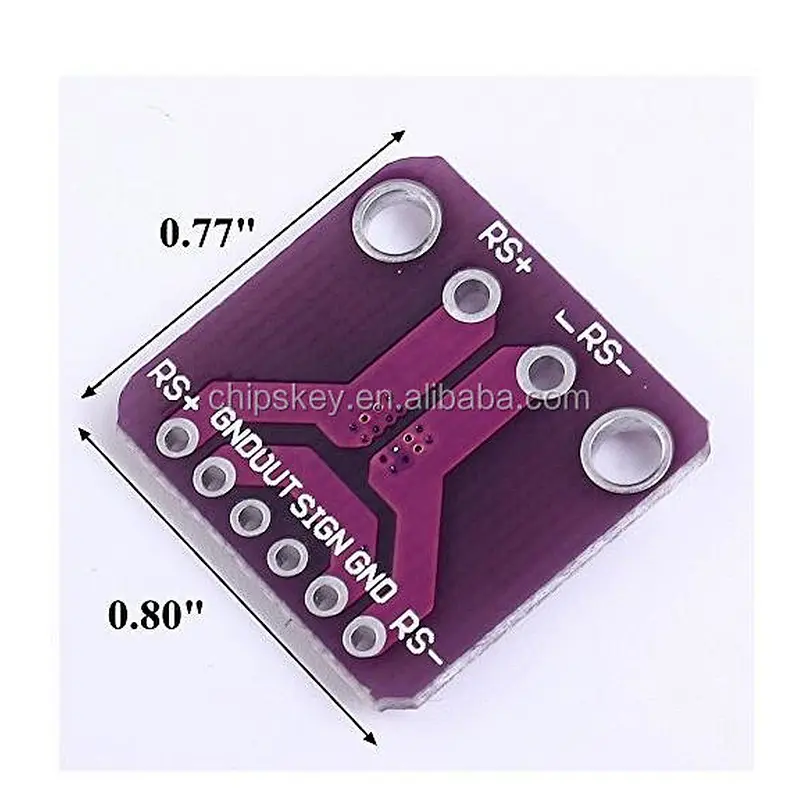

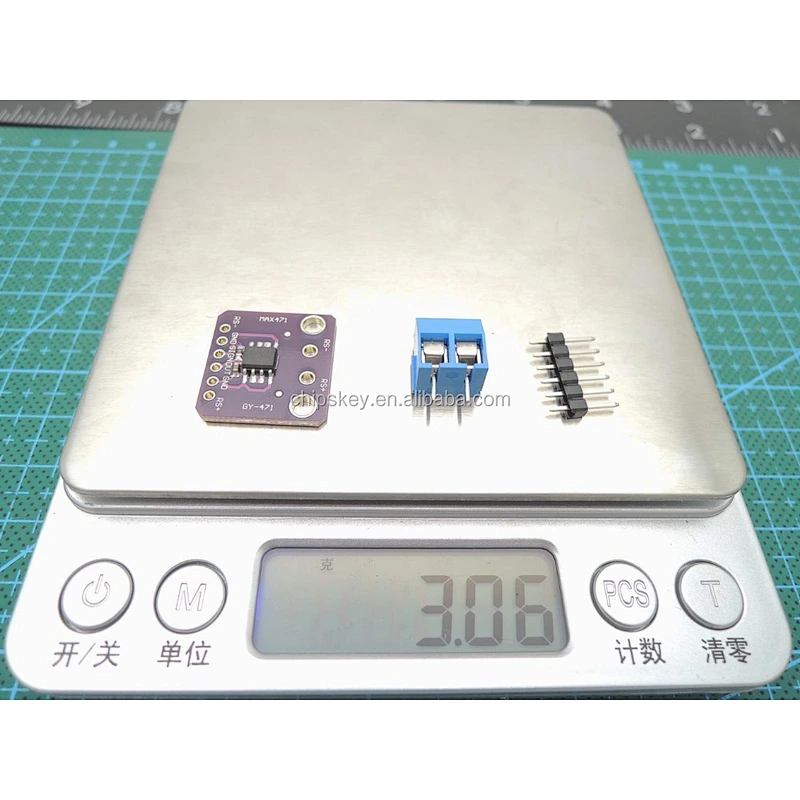

Measure:19.5*20.3mm

Description

This module can be used to test the current and voltage.

The principle of voltage test based on principle of resistive voltage divider design, can make the red terminal connector input voltage to 5 times smaller. analog input voltages up to 5 v, the voltage detection module input voltage not greater than 5Vx5=25V (if using 3.3V systems, input voltage not greater than 3.3Vx5=16.5V). AVR chips have 10-bit AD, so this module simulates a resolution of 0.00489V (5V/1023), so the minimum voltage of input voltage detection module is 0.00489Vx5=0.02445V.

The MAX471 chip on the board used to test the consume current of the load.

Paramenter:

Test Voltage range: DC3 – 25V (Arduinos work on 5V) or DC3 – 16.5V (work on 3.3V)

Test Current range: DC 0 – 3A
