- Model Number:13D096
- Type:Other
- Place of Origin:China
- Lead Free Status:Lead free / RoHS Compliant
- Condition:Brand New With Original Manufacturer
- Maximum Operating Temperature:-40C ~ 125C
- Warranty:360days
- Operating Temperature:-40C ~ 125C
- Dissipation Power:1W-6W
- Supply Voltage:1.5V-6V

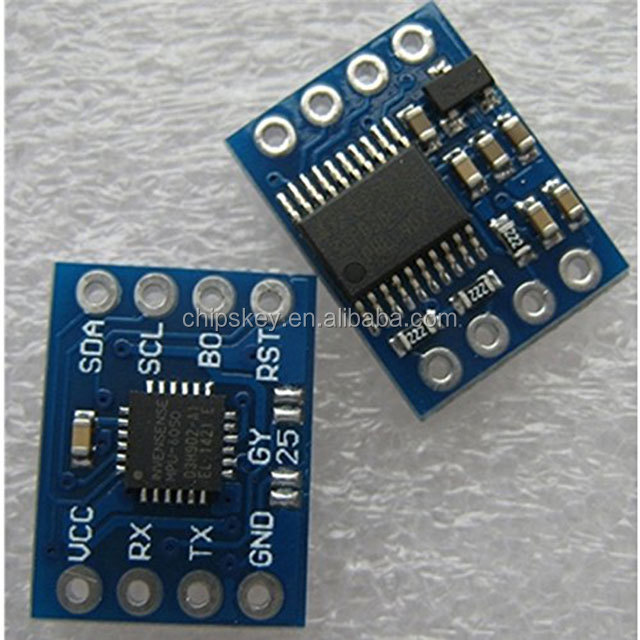

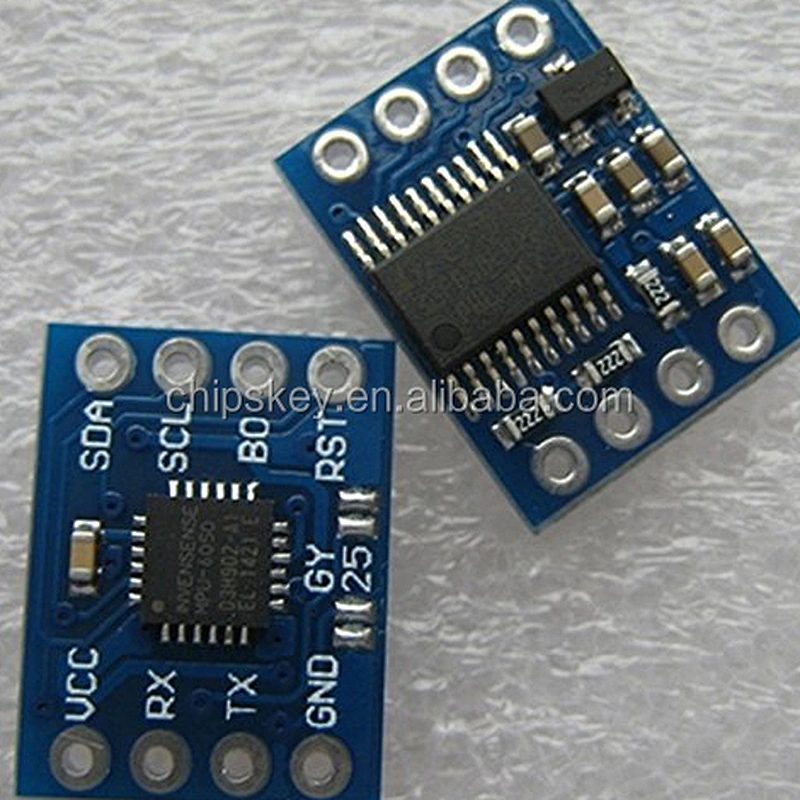

GY-25 Tilt angle module serial output angle data directly MPU-6050 module
The power supply: 3-5v (internal low dropout regulator)
Communication: serial communication (baud rate 9600,115200), IIC the communication (read only the original data)
Pitch :2.54mm pin
Direct Data: YAW ROLL PITCH
Heading angle (YAW) ± 180 °
Roll angle (ROLL) ± 180 °
Pitch angle (PITCH) ± 180 °
Angular resolution 0.01 °
Communication: serial communication (baud rate 9600,115200), IIC the communication (read only the original data)
Pitch :2.54mm pin
Direct Data: YAW ROLL PITCH
Heading angle (YAW) ± 180 °
Roll angle (ROLL) ± 180 °
Pitch angle (PITCH) ± 180 °
Angular resolution 0.01 °
| General | |
|---|---|
| Model | N/A |
| Quantity | 1Piece |
| Color | Deep Blue |
| Material | Plastic + iron |
| Specification | |
| Chipset | MCU+MPU6050 |
| English Manual / Spec | No |
| Dimensions & Weight | |
|---|---|
| Dimensions | 0.61 in x 0.45 in x 0.08 in (1.55 cm x 1.15 cm x 0.2 cm) |
| Weight | 0.07 oz (2 g) |
| Packing List |
|---|
| 1 x Module |
