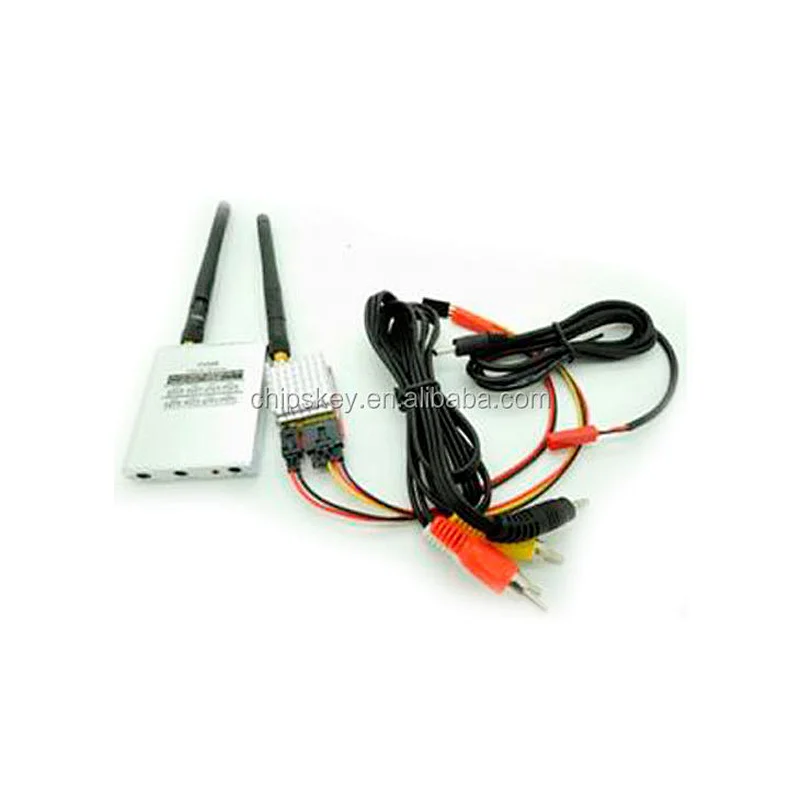

FPV 5.8G 400mW AV Receiver RC7058R with Transmitter TS4058T

Operating frequency:

CH1/CH5: 5705/5885MHz


CH2/CH6: 5685/5905MHz

CH3/CH7: 5665/5925MHz

CH4/CH8: 5645/5945MHz



Product Description:

1. Transmission frequency: 5725-5865MHz; 8 channels

Transmit Power: 26dBm/400mW

Transmission Distance:> 2000 m

Frequency Control: Built-in PLL

AV input: Direct input analog audio and video signals

Supply voltage: 6.5-15V

Supply Current: 300mA

Dimensions: 55 * 26 * 17mm

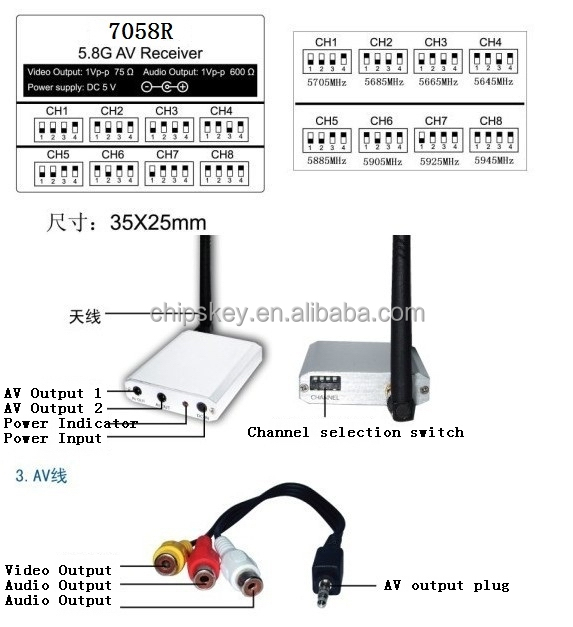

2. Receiving frequency: 5725-5865MHz; 8 channels

Receiver sensitivity:-90dBm

Frequency Control: Built-in PLL

Dual AV output: output analog audio and video signals directly

Antenna Interface: SMA (the pin)

Supply voltage: 6.5-15V

Supply Current: 150mA

Dimensions: 61 * 52 * 13mm; aluminum enclosure

Transmitter Key Features:

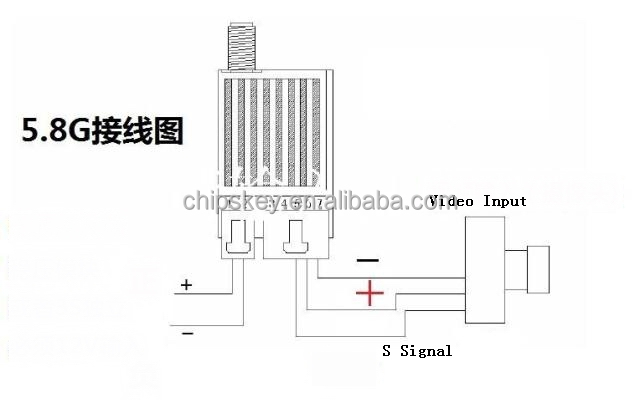

- Application is simple, just connect the power, audio cable, video cable, connect the antenna can transmit voice, image signal.


- 5.8GHz video / audio synchronization transmission

- Compact structure, small size, emission power - using LSI, high reliability

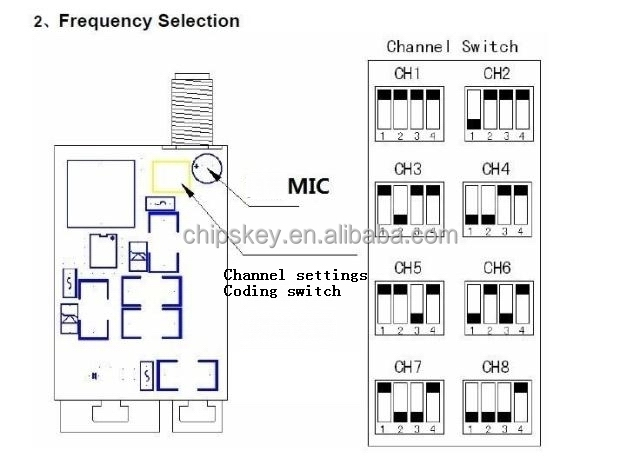

- 8 working channels, DIP switch selectable settings

- High reliability, stability

- Using digital phase-locked loop circuit, no temperature drift phenomenon

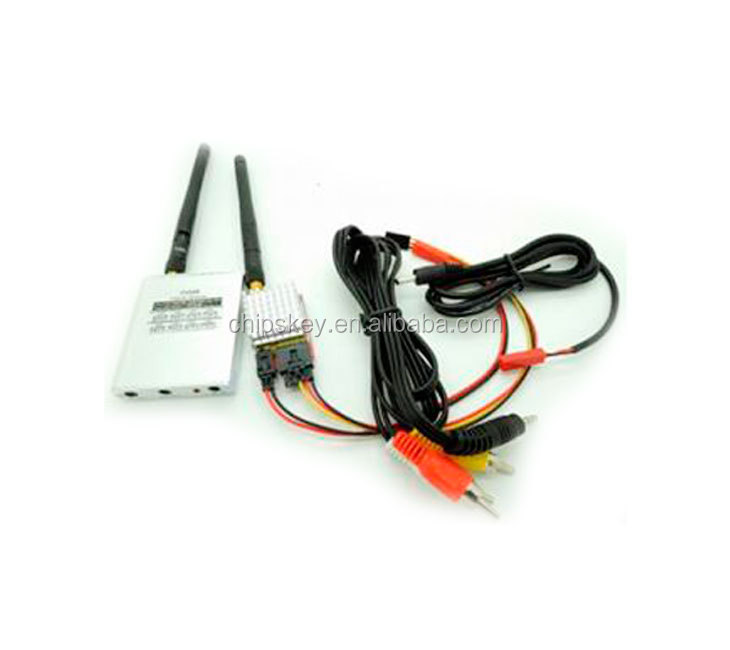

Accessories:

5.8G antenna a pair of two-channel AV line, transmission line 2, receiver power line

Scope:

Suitable for model aircraft, wireless remote control aircraft, spacecraft, remote control toys, etc.


FPV 24 Remote Fax Kit preferred figure, panel antenna with up to 3-5KM more
