- Model Number:19J128
- Place of Origin:Guangdong, China
- Brand Name:Chipskey

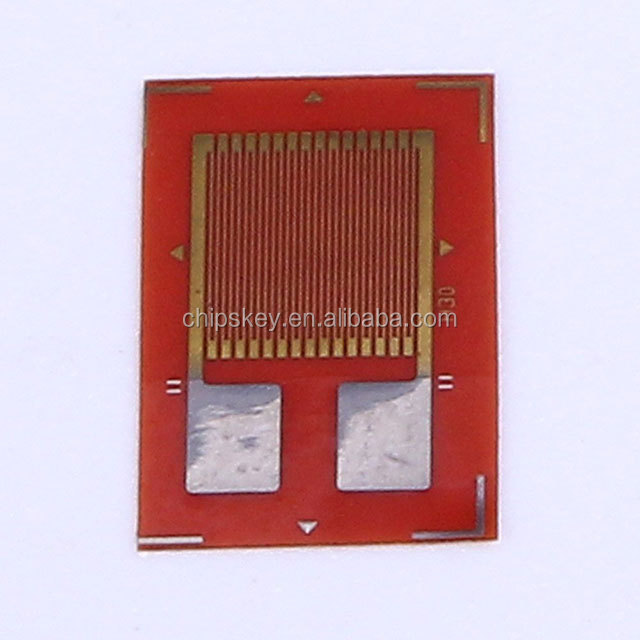

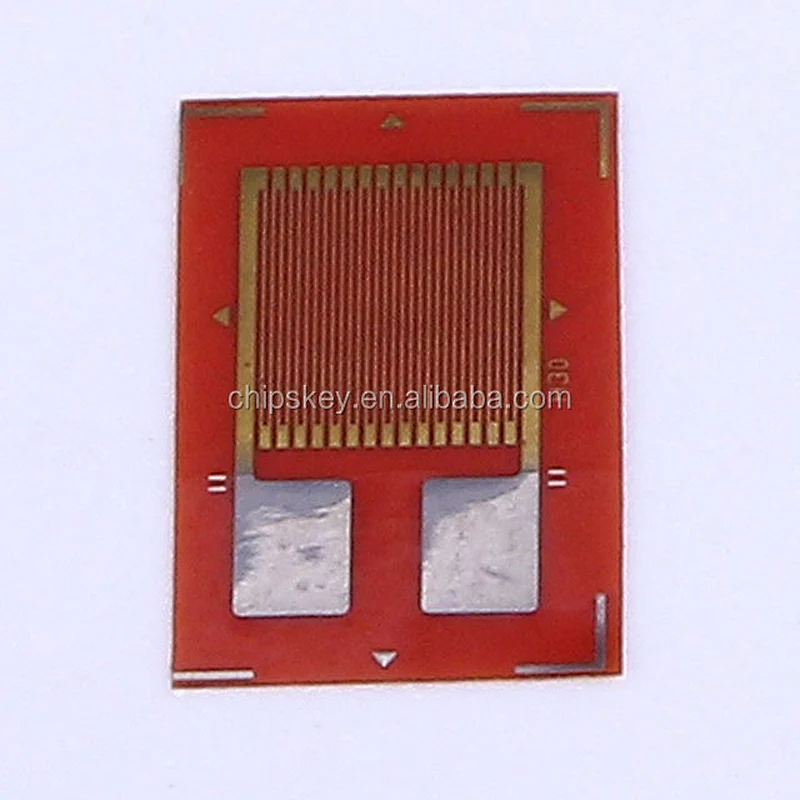

BF350 high-precision resistance strain gauge / strain gauge pressure sensor / load cell 350 in Europe
Sold by BF Series Specifications
Base: modified phenolic; wire grid: constantan (40% nickel, 1.5% manganese-copper alloy); a fully enclosed structure; enabling simultaneous temperature creep self - compensation and self-compensating.
High accuracy, good stability, ease of use, the sensor is suitable for 0.02.
Model: BF350-3AA (**) N *
Grid wires: Length x width 3.2x3.1mm

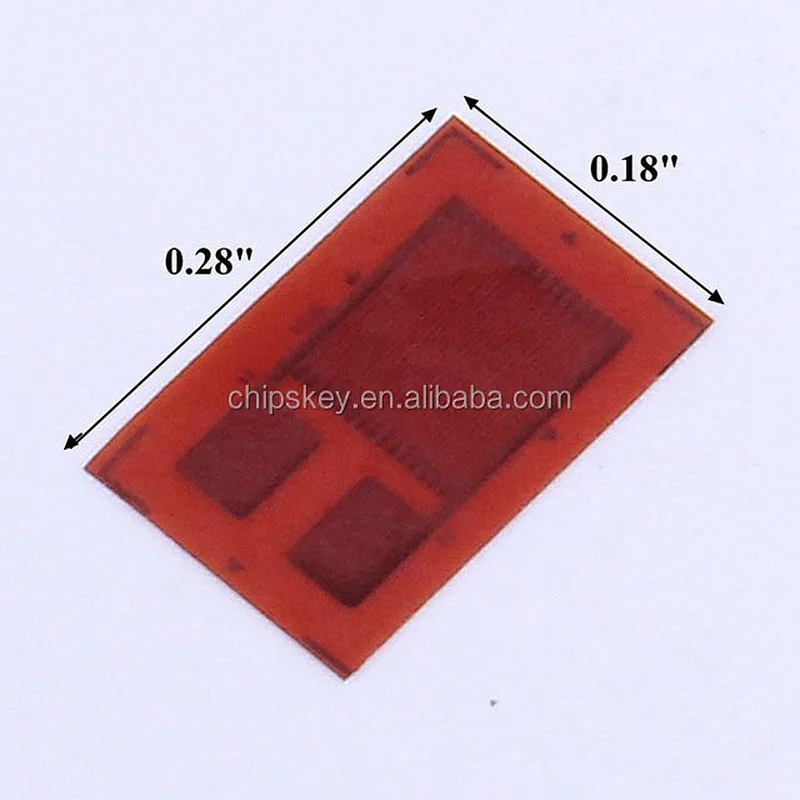

Substrate size: length x width 7.4x4.4mm
Base material: modified phenolic substrates.
The gate wire material: Kang copper foil, fully enclosed structure.
Resistance: 350 Ohm
The main technical indicators BF Series
Typical resistance value of 350
On average resistance tolerance ≤ ± 0.1%
Sensitivity coefficient 2.00-2.20
Sensitive dispersion coefficient ≤ ± 1%
Strain limit of 2.0%
Fatigue life ≥1M
Since the temperature compensation coefficient 9,11,16,23,27
Operating temperature range -30 - 80 Quantum Mechanics
