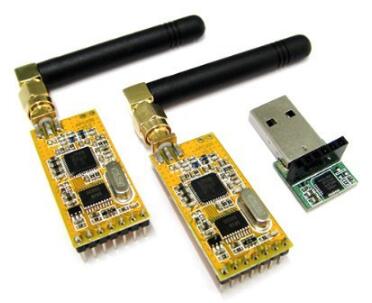

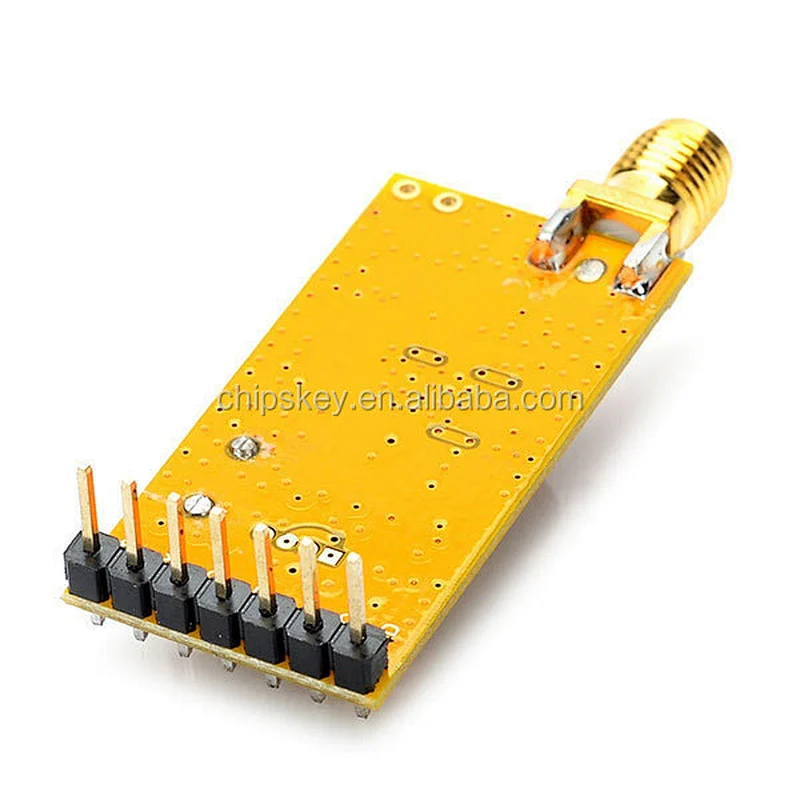

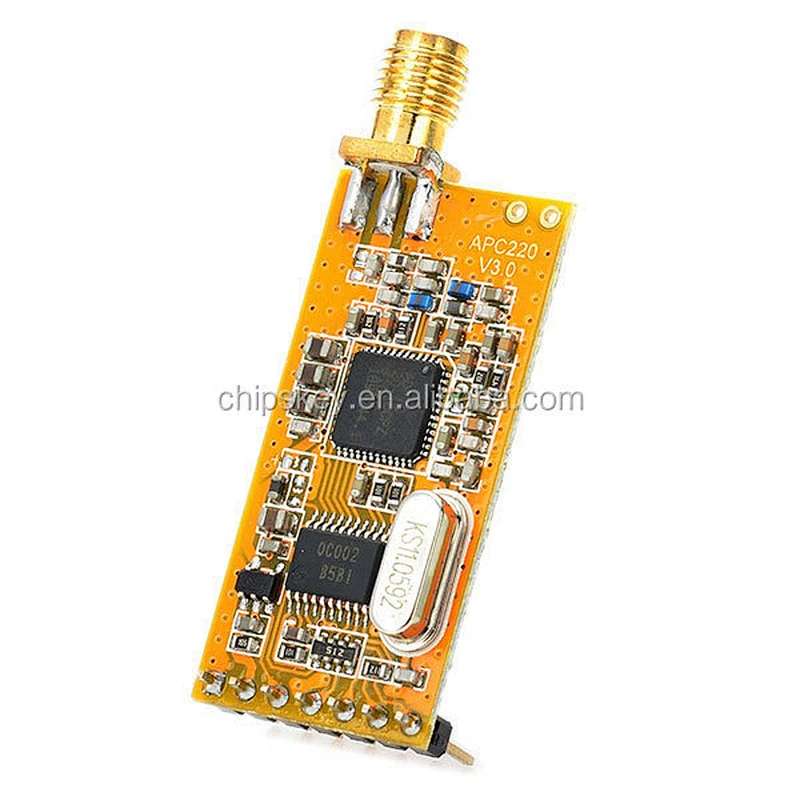

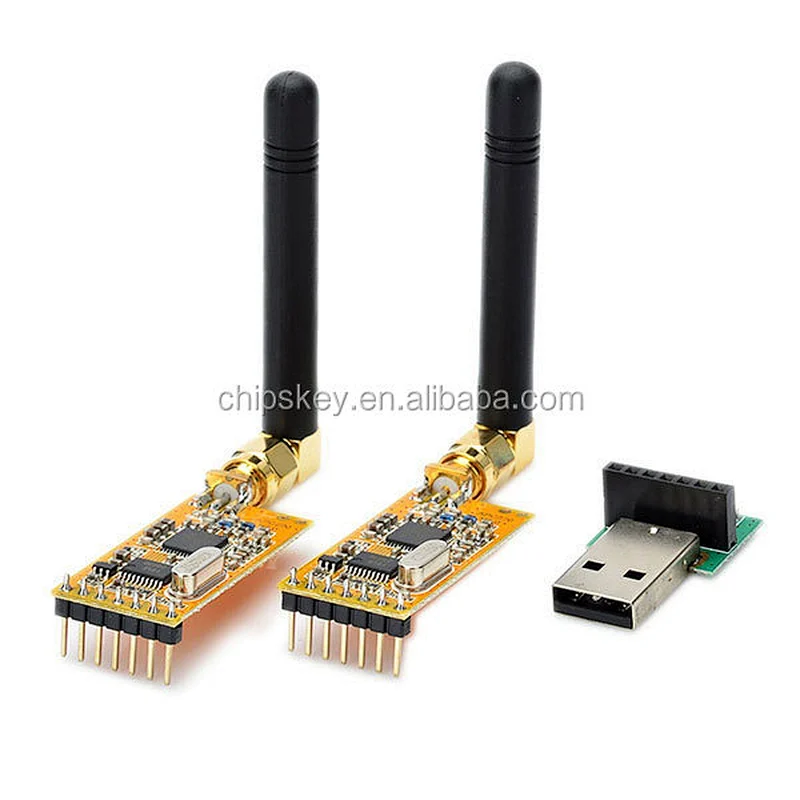

Apc220 Wireless Rf Modules w/ Antennas / USB Converter

• Model Number:6008
• Type:RF/Wireless Development Boards and Kits
• Place of Origin:China
• Part number:6008
• Brand:chipskey
• Category:Module

wireless serial module, APC220 communication module

Product description

Specifications:
Operating frequency: 431MHz to 478MHz(stepping)
modulation system: GFSK
frequency interval: 200KHz
transmitting power: 20mw(10level adjustable)
receiving sensitivity: -117dBm@1200bps
air transmission rate: 1200 - 19200bps
interface rate: 1200-57600bps
interface efficiency way: 8E1/8N1/8O1
interface cushion space: 512bytes
operating humidity: 10%~90%(non-condensing)
operating temperature: -20°C - 70°C
power supply: 3.3 - 5.5V (±50mV ripple wave)
emission current: ≤35mA@10mW
receiving current: ≤30mA
dormancy current: ≤5uA
transmission range: 1000m
size: 39mm x 19mm x 2.8mm
default frequency point: 475MHz
default Baud rate: 9600bps
Default air Baud rate: 19200bps
Weight: 30g
