- Model Number:28228
- Type:Audio Module
- Place of Origin:China
- Color:blue
- Weight:0.0
- SKU:28228

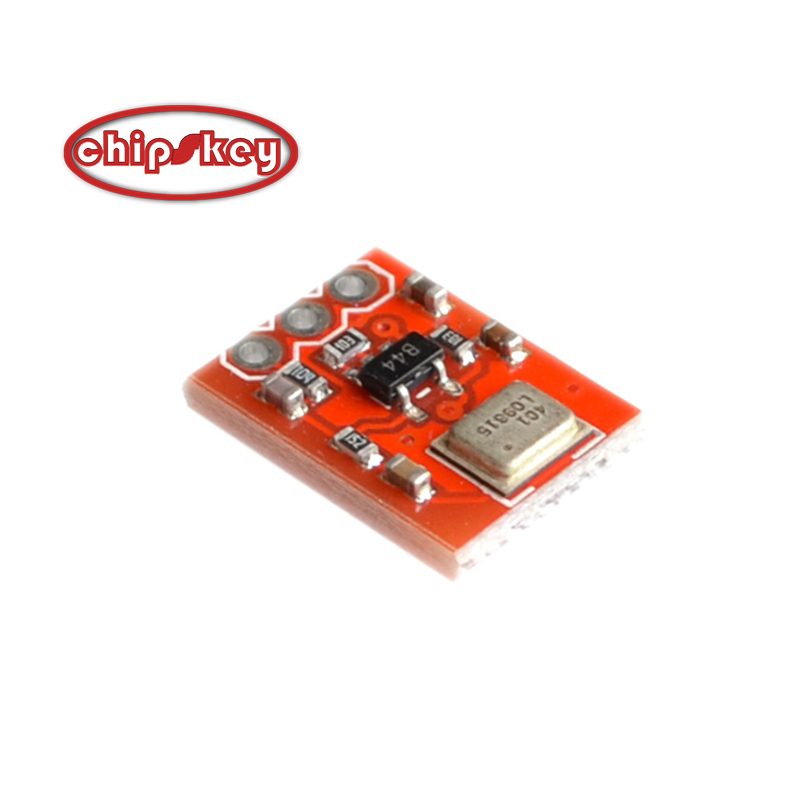

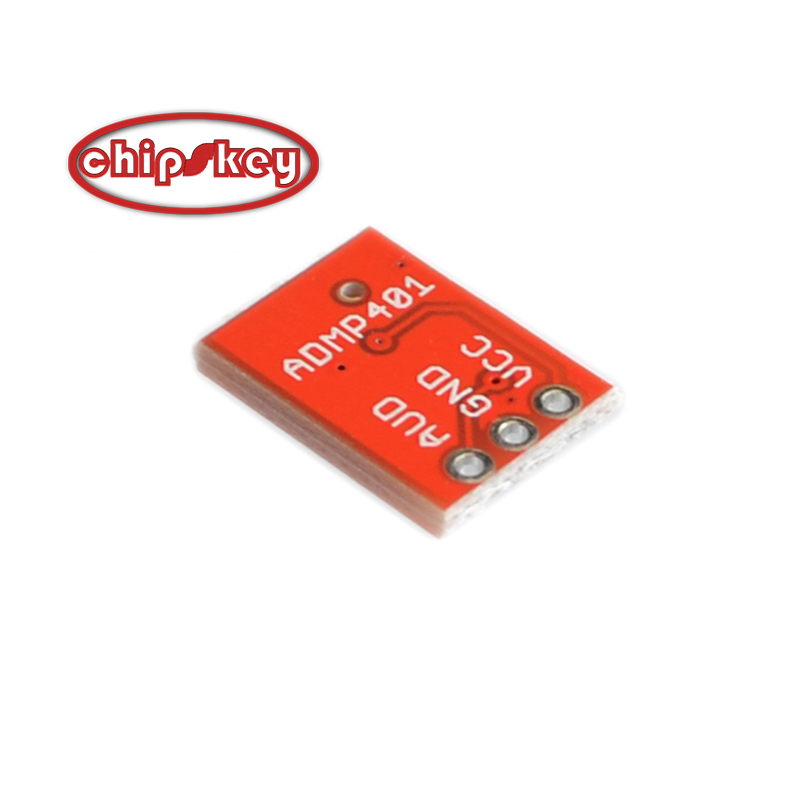

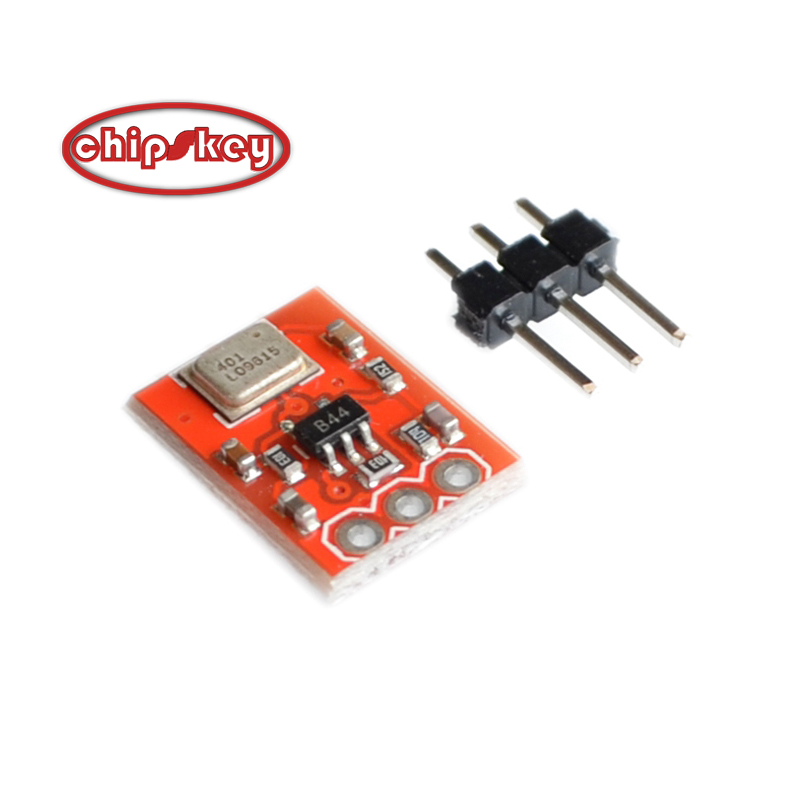

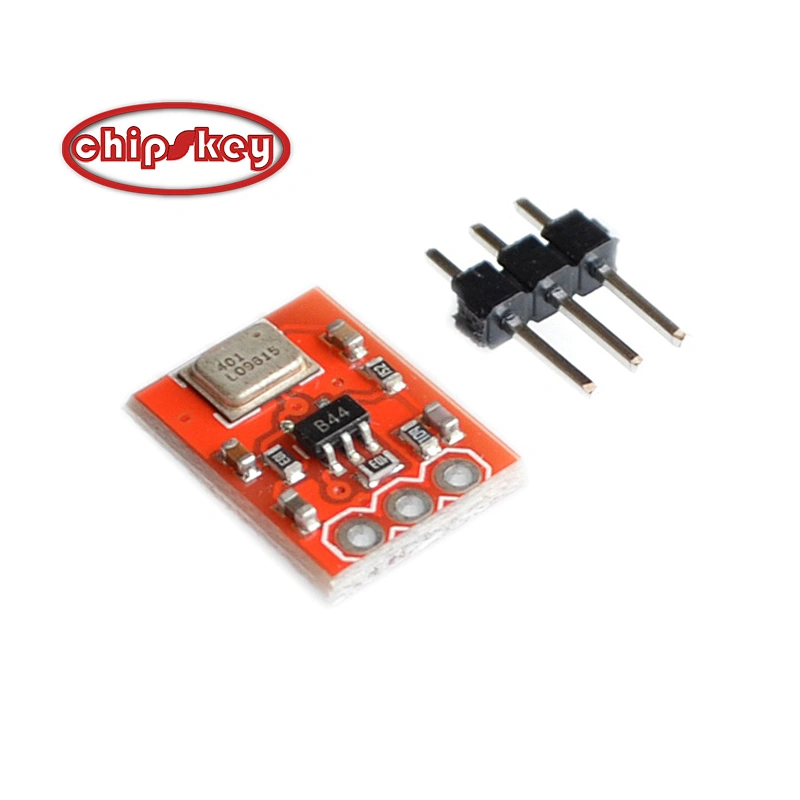

ADMP401 MEMS Microphone Breakout
DescriptionThis tiny breakout board features the ADMP401 MEMs microphone. One of the key advantages to this breakout and microphone is the bottom ported input. This means the microphone's input can fit flush against the enclosure of your project. Plus you will not have to deal with trying to solder the microphone's wacky footprint. Wootness!The amplifier on the breakout has a gain of 67 and more than meets the bandwidth requirements of the mic. The amplifier's AUD output will float at one half Vcc when no sound is being picked up. The amplifier produces a peak-to-peak output of about 200mV when the microphone is held at arms length and is being talked into at normal conversational volume levels. So the AUD output can easily be connected to the ADC of a micro.Features-3dB roll off at 100Hz and 15kHz1.5 to 3.3VDC supply voltageShould comfortably output 40mWSNR of -62dBA
Company Profile
Chipskey Technology CO.,LTD. was built in 2010 . We mainly manufacture and export 3D Printer, Board&shield for arduinos, sensor module for arduinos, Smart Car Robot, Smart DOF Robot, Servo, DIY toys ,Science toys, Raspberry PI Accessories etc. After 9years development, our company has grown into a large high-tech group corporation integrating industry, technology and trading. With electronic information industry as our main business, we keep being top 10 in the board, shield, sensor, modules for arduinos & Modules For Raspberry PI ,Smart Home Products
WareHouse

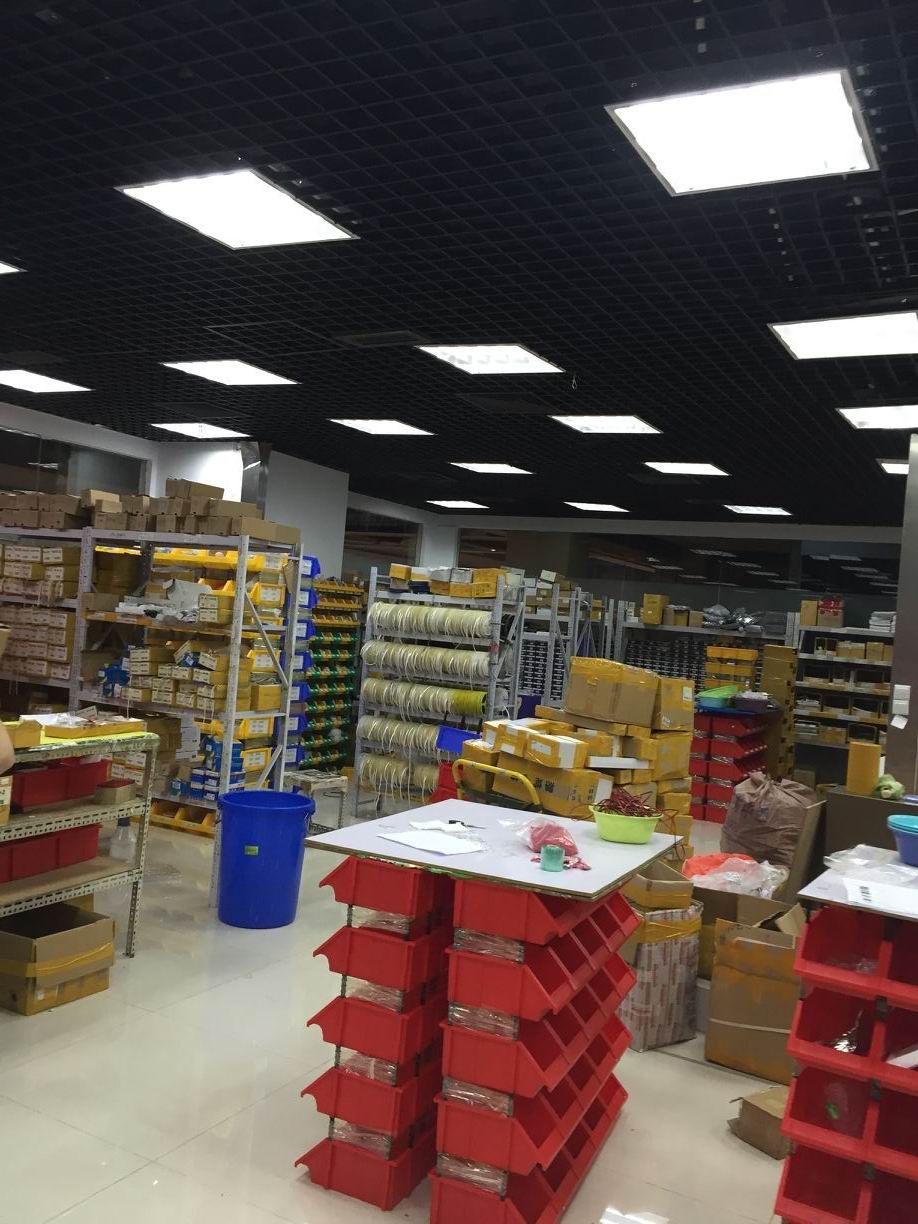

This is our Warehouse ,We Can Make A Fastest Shipment per Day
Certifiactions

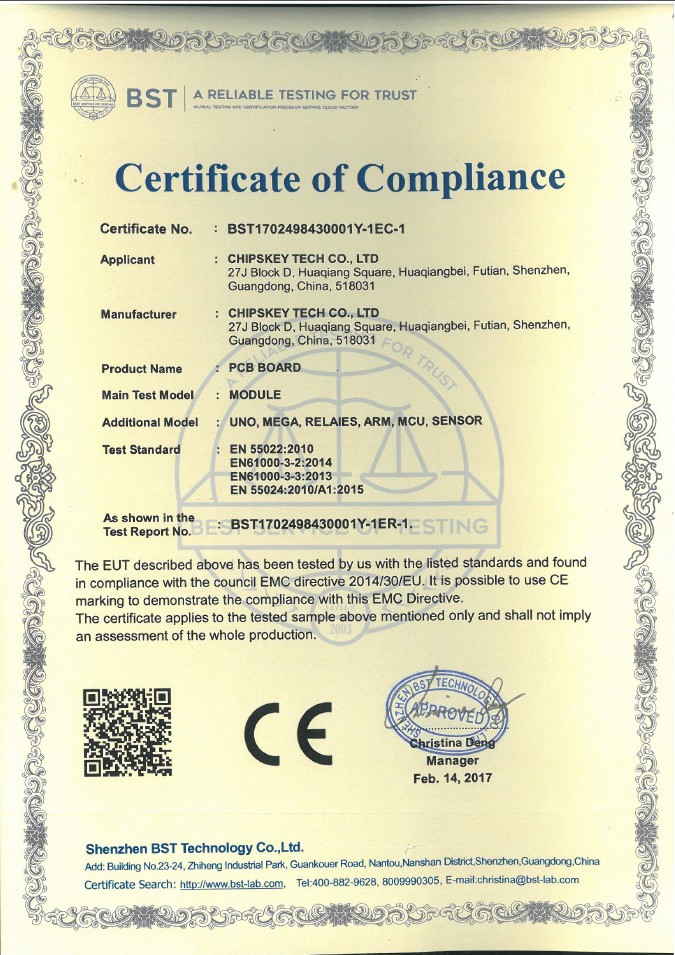

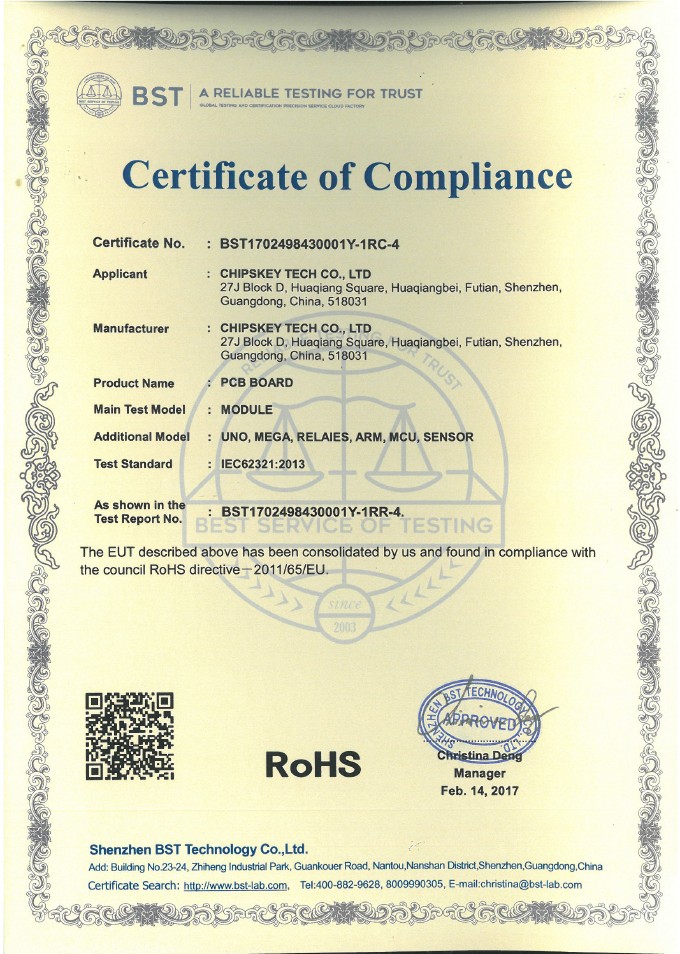

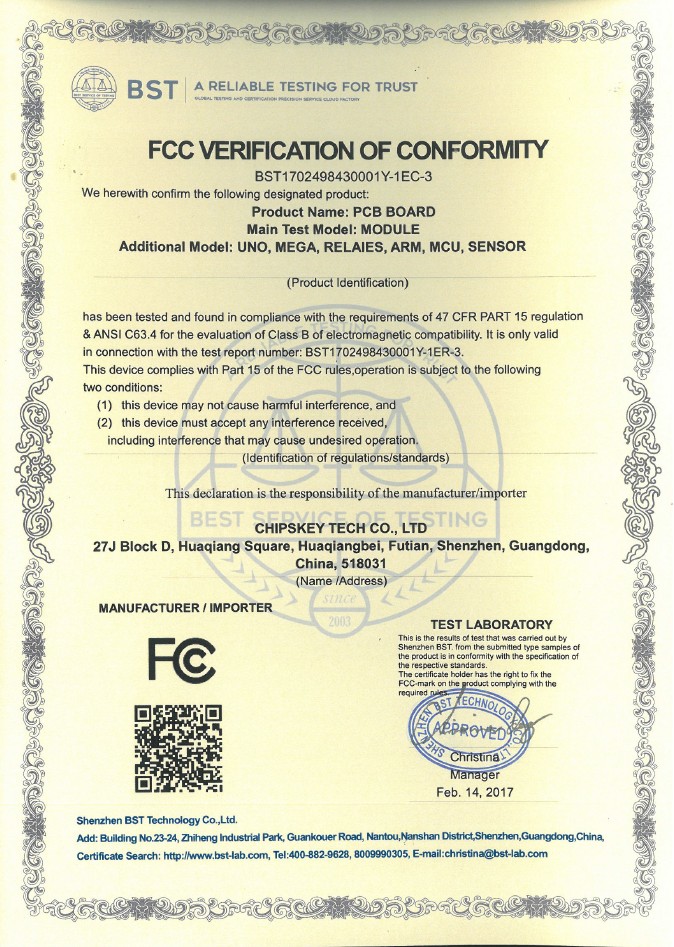

Our Products Have CE FFC ROHS Certifiactions
Payment & Delivery Team
FAQ
Are you manufacturer ? | Yes, We Are Manufacturer & Trading Company |
How long is your delivery time? | Normally3-5 working days after payment; Special requirement orders, delivery time is negotiable. |
Do you accept OEM design? | Yes, we do. We can design according to your requirement, MOQ usually 500-1000. |
What payment terms you accept? | We accept Alibaba Trade Assuarce, T/T, PayPal, Western Union, Wechat, Alipay, in Cash (RMB or USD). |
What Express Company You Use ? | We Can Ship the goods Via DHL, Fedex ,TNT, UPS ,Aramex ,EMS , China Post , By Sea And By Air |
