- Model Number:1040
- Type:other
- Place of Origin:Guangdong, China, US
- Brand Name:Chipskey
- D/C:1040
- Brand:Chipskey
- Category:Module
- Condition:Brand New With Original Manufacturer
- Packaging:Reel Tray Tube
- Maximum Operating Temperature:-40C ~ 125C
- Warranty:360days
- Dissipation Power:1W-6W
- Application:Watch

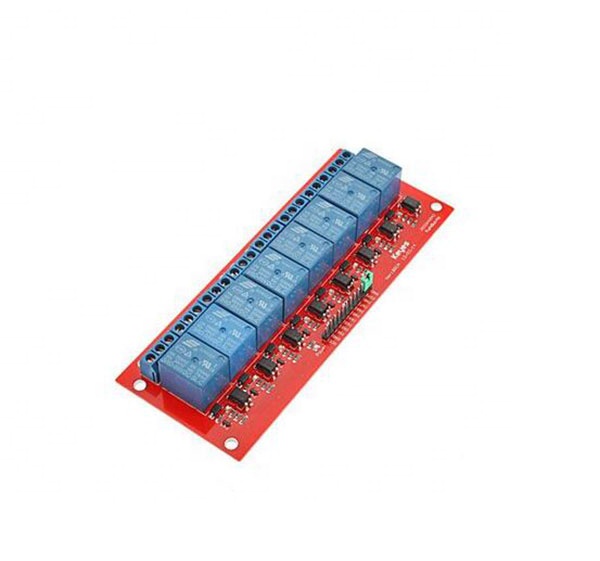

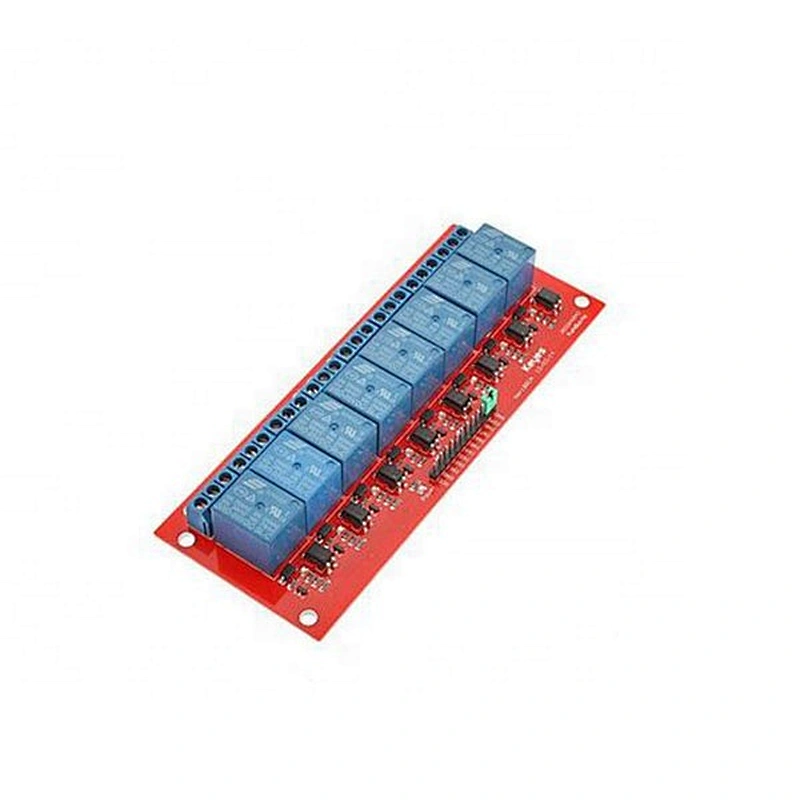

8 Channel 5V Relay Shield Module Development Board 2560 1280
8-channel relay output module, relay output contact max 250V 10A. Input IN1, IN2, IN3, IN4, IN5, IN6, IN7, IN8 signal line active low. VCC, GND power input can be individually powered relay relay power input JD-VCC.
Purpose:
1, supports all MCU control.
2, the industrial field;
3, PLC control;
4, smart home control;
Technical Details
- 5V 8-Channel Relay interface board, and each one needs 15-20mA Driver Current
- Equiped with high-current relay, AC250V 10A ; DC30V 10A
- Standard interface that can be controlled directly by microcontroller
- Size:14cm x 5.7cm x 1.7cm (5.51inch x2.24inch x 0.67inch)
Product Description
Specification:
This is a 5V 8-Channel Relay interface board, Be able to control various appliances, and other equipments with large current.
It can be controlled directly by Microcontroller
This is a 5V 8-Channel Relay interface board, Be able to control various appliances, and other equipments with large current.
It can be controlled directly by Microcontroller
