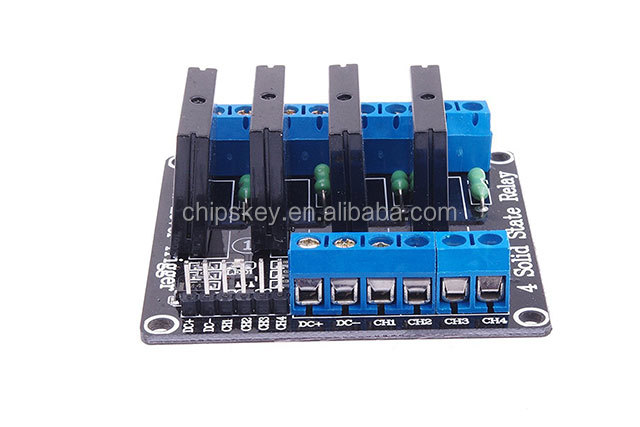

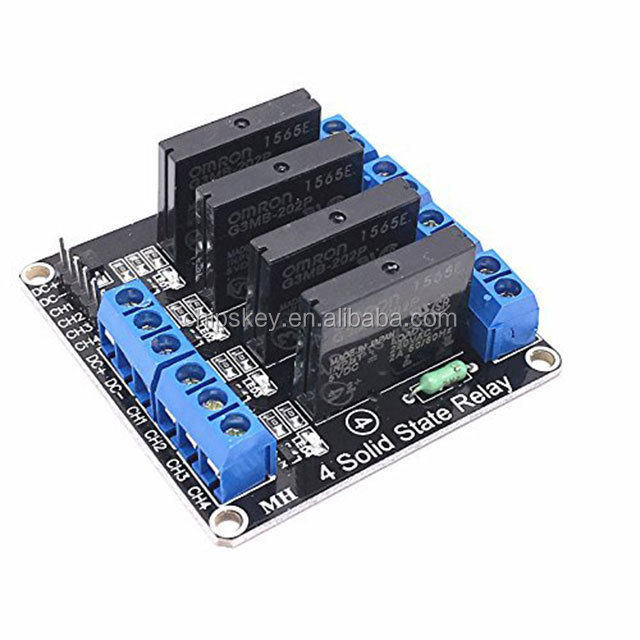

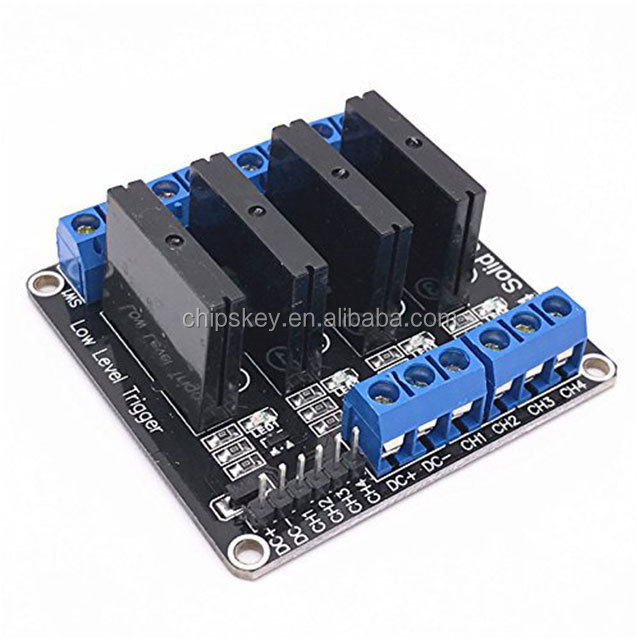

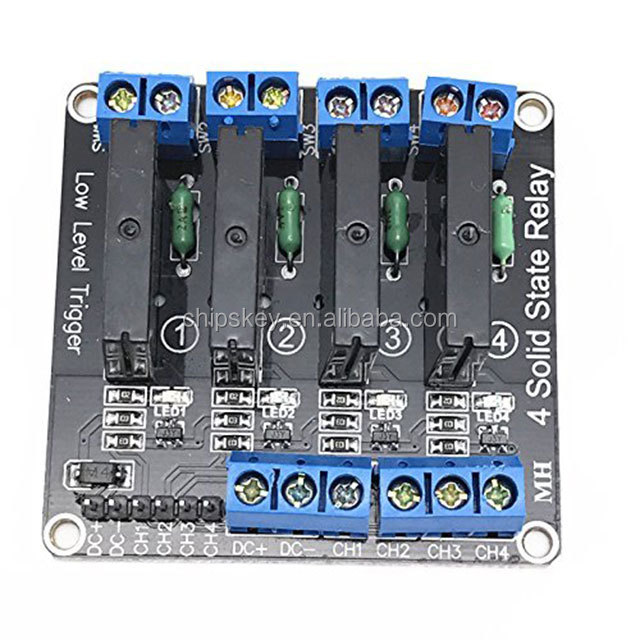

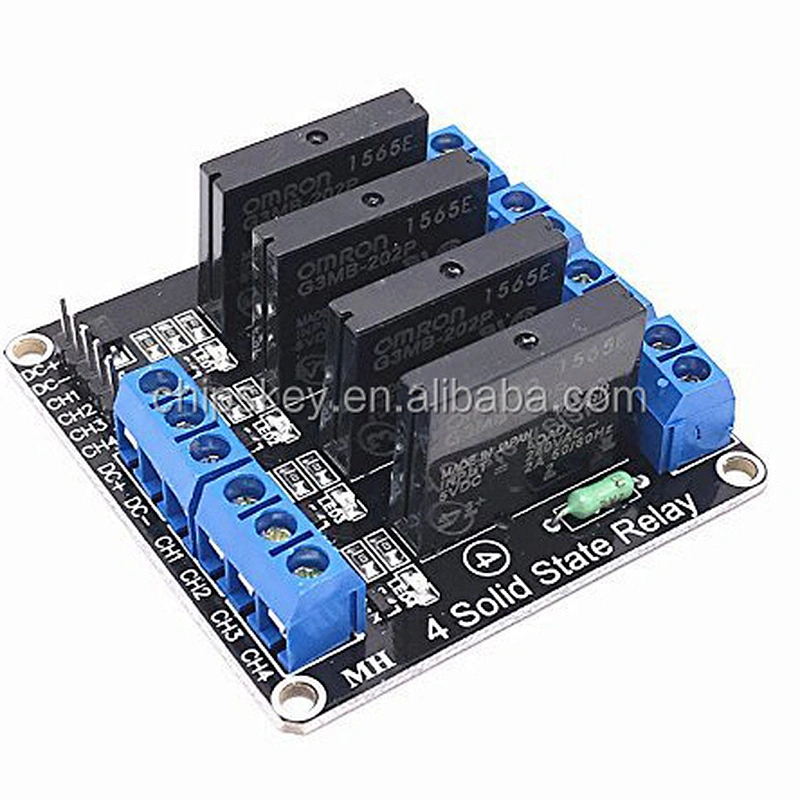

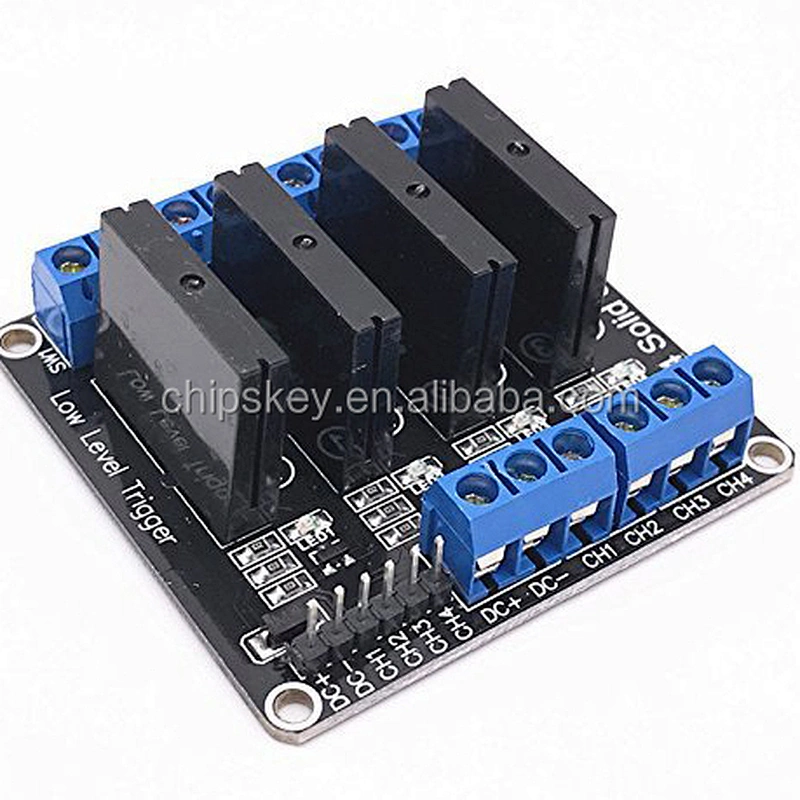

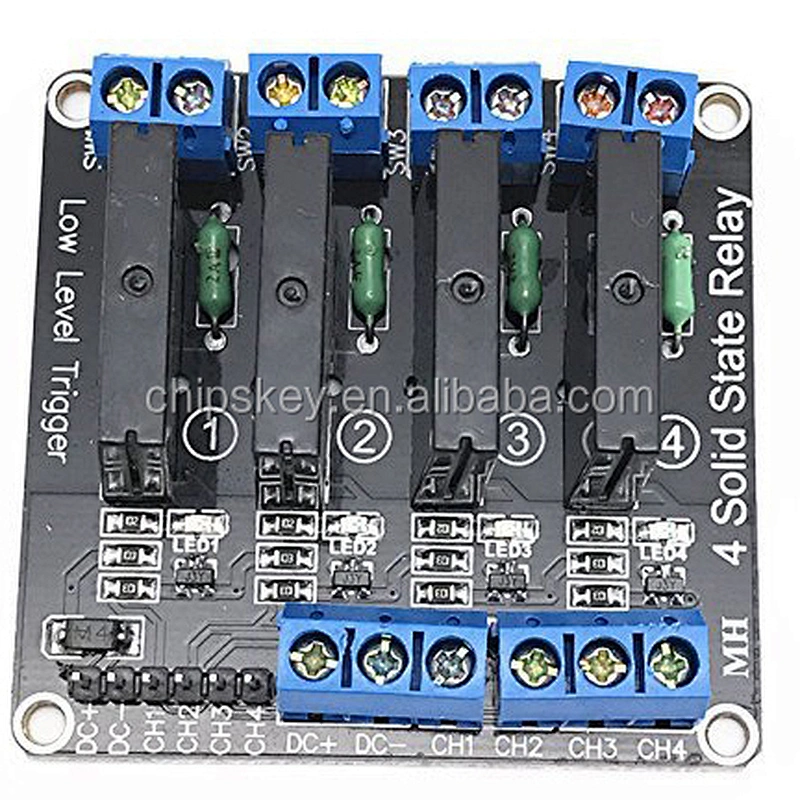

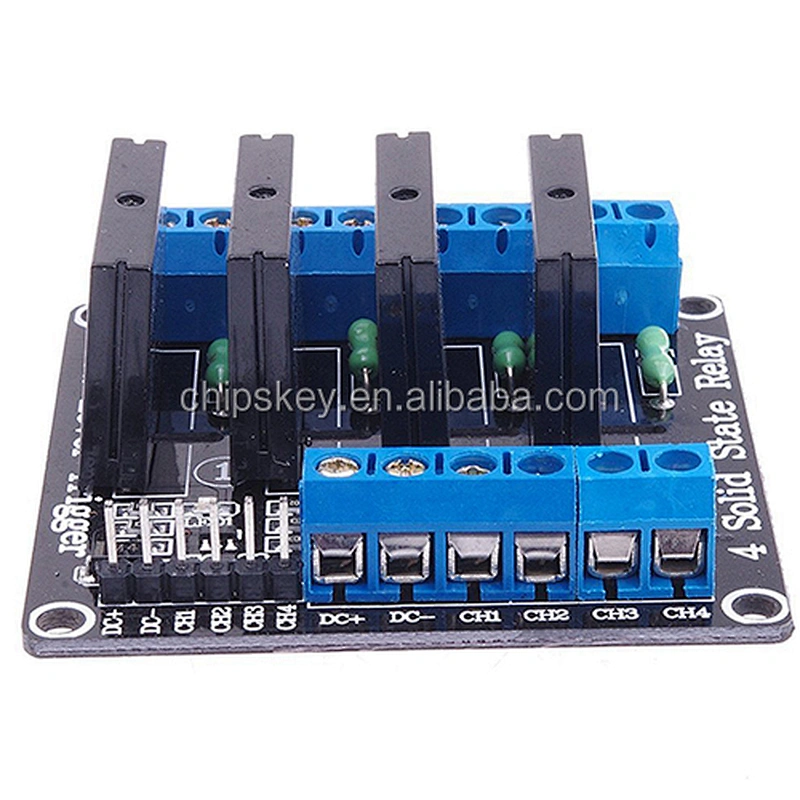

5V 4 Channel SSR Solid-State Relay Low Level Trigger With fuse Stable 240V 2A

• Place of Origin:Guangdong, China
• Brand Name:Chipskey
• Model Number:13d067
• Condition:Brand New With Original Manufacturer
• Maximum Operating Temperature:-40C ~ 125C
• Warranty:360days
• Operating Temperature:-40C ~ 125C
• Dissipation Power:1W-6W
• Supply Voltage:1.5V-6V

5V 4 Channel SSR Solid-State Relay Low Level Trigger With fuse Stable 240V 2A

Specifications:

Power supply: 5V DC (160mA)
Input control signal voltage: (0-0.5V low stage SSR is OFF) (2.5-20V high stage SSR is ON)
SSR Output (each channel):
Load voltage range: 75 to 264VAC (50/60Hz).
Load current: 0. 1 to 2 AMP.
Power supply: 5VDC / 160mA (all channel ON).
Input control signal voltage: 0V - 0. 5V
Low stage (SSR is OFF): 0.5V-2.5V.
2. 5V - 20V High state (SSR is ON)
