4 Channels Relay Shield V1.3 For Arduinos

• Model Number:7111
• Type:Embedded System Development Boards and Kits
• Place of Origin:China, US
• Brand:Chipskey
• Category:Relay Shield
• Lead Free Status:Lead free / RoHS Compliant
• Condition:Brand New With Original Manufacturer
• Warranty:360days
• Operating Temperature:-40C ~ 125C
• Dissipation Power:1W-6W
• Application:Watch
• Supply Voltage:1.5V-6V

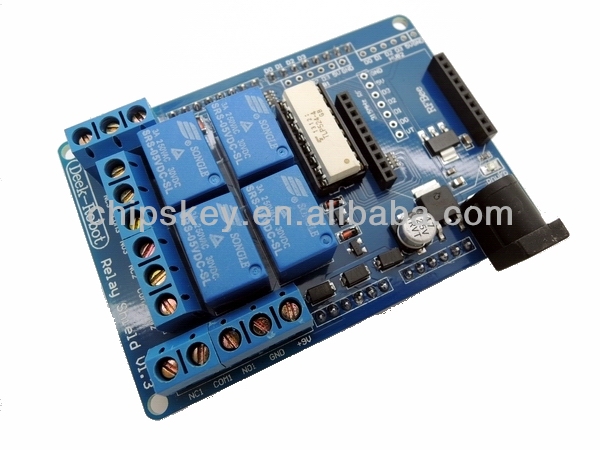

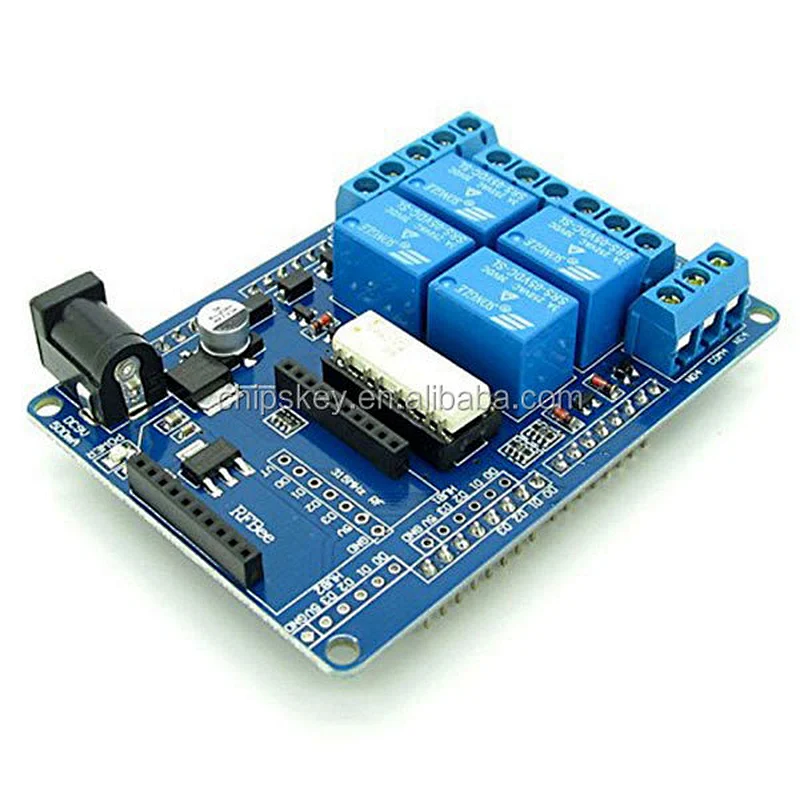

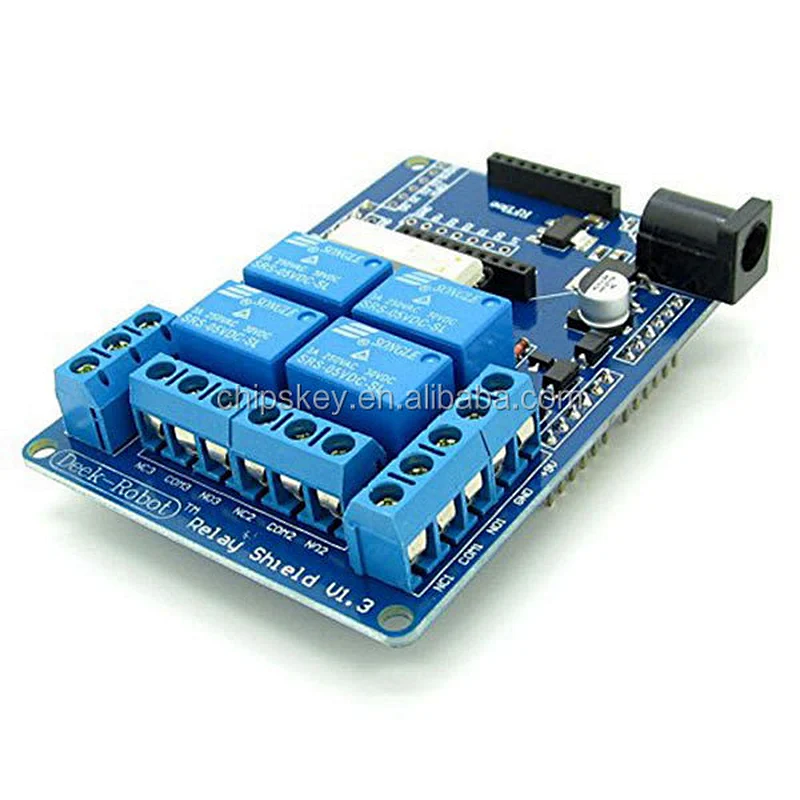

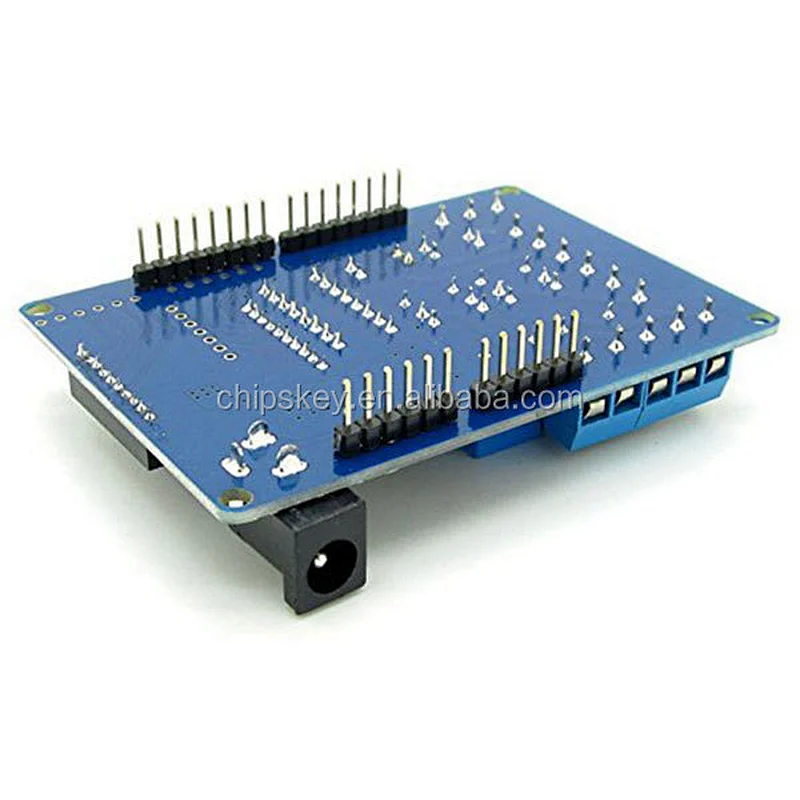

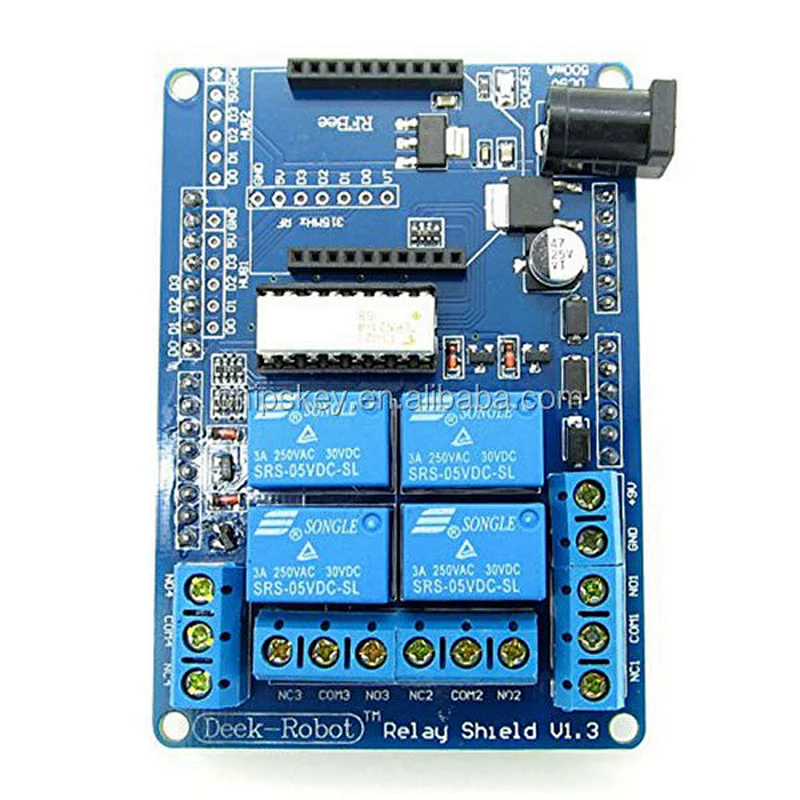

4 Channels Relay Shield V1.3

Brief introduction

Ar-duino dedicated Relay Shield, 4-way 3A relay control, xbee wireless module.

Independent external power supply and optocoupler isolation, effectively avoid electromagnetic interference devices charged.

Specification

External power supply voltage: 7 ~ 12V (>200mA)
Maximum switching voltage relay: 240VAC/60VDC
Relay Max Switching Current: 5A
Contact load capacity: 1A 250VAC, 3A 120VA / 24VDC
Relay: 4
Wireless output interface: (serial) xbee /  Bee / Wireless Programming Module
Occupied by Ar-duino ports: (relay) digital ports 2,3,4,5, (wireless module) digital ports 0,1
