- Model Number:13D010
- Type:RF/Wireless Development Boards and Kits
- Place of Origin:China
- SKU:13D010
- Lead Free Status:Lead free / RoHS Compliant
- Condition:Brand New With Original Manufacturer
- Stock:In Stock ,Can Ship out Immedicate

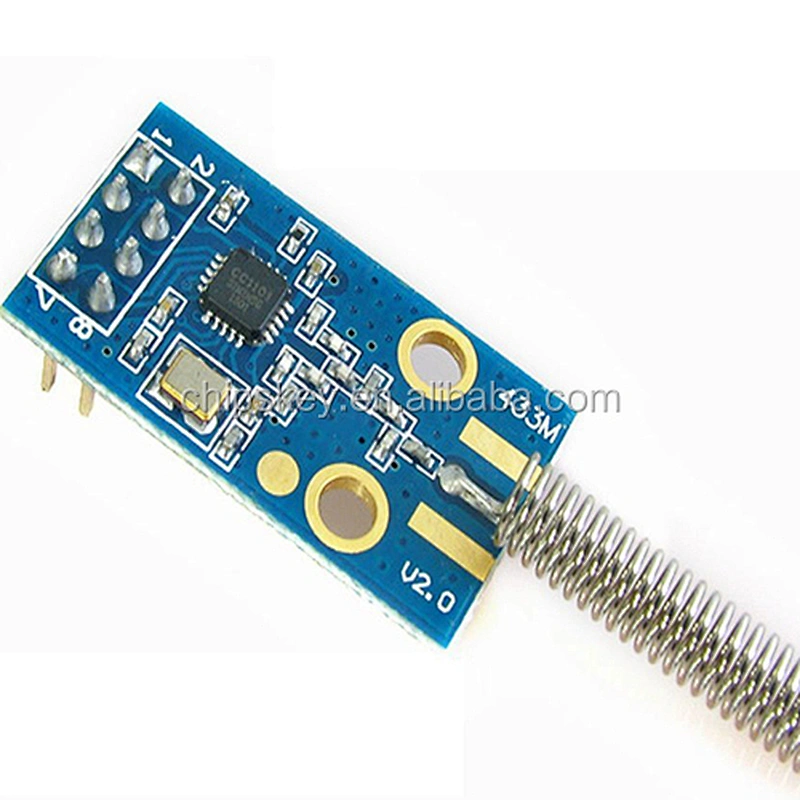

33MHz CC1101 RF Wireless Transceiver RS232 TTL Si4463/NRF24L01

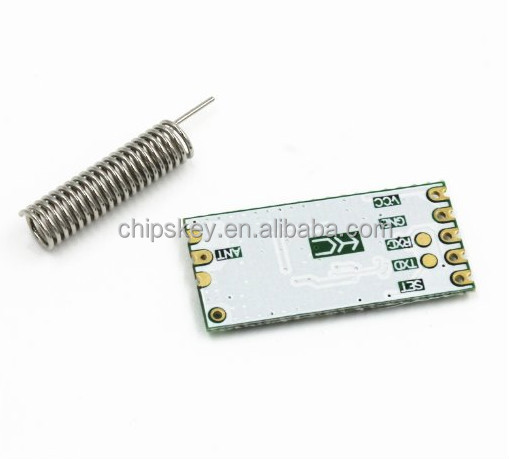

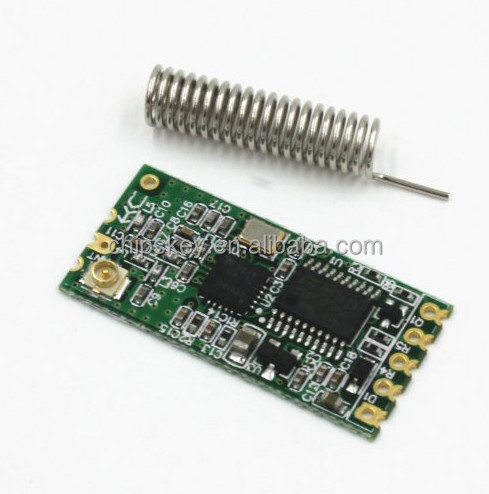

1.PS:HC-11 can not connect to HC-12.Their work is independently each other .
2.Silent current 3. 4ma, ultra-low power consumption.
3.support 3.3V~5V.
4.support serial pass-through mode, replacing serial line (half duplex).
5.support IO level,also means transmitting digital level model.
6.support IO level latch mode.
7.module size: 27.8mm*14.4 mm*4 mm.
Introduction of the module:
1: FU1 mode:The default delivery mode.
2: FU2 mode:The IIDLE current is 80uA,but longer delay, transmission delay is close to 400ms.When use this mode,the serial port baud rate only can be 4800, 2400, 1200.Because of long time delay, when the continuous send serial data to the module, can only send 245 bytes of data by once.Low current consumption, suitable for the application of low power consumption.
3: FU3 mode:Transmission delay has been reduced to less than 8ms, the corresponding power consumption also increased slightly.
4: FU4 mode:Transmission distance is longer, the lower baud rate, the longer the transmission distance, the corresponding transmission delay is also a slight increase
AT instruct mode:
1. AT:Send this instruction, return OK.
2. AT+V:Return version information
3. AT + Bxxxx:Baud rate is xxxx, it can be 2400,4800,9600,19200,38400,57600,115200
4. AT+Cxxx:Set communication channels ,form 001 to 127
5. AT+FUx:Switch serial pass through mode, from 1~4
