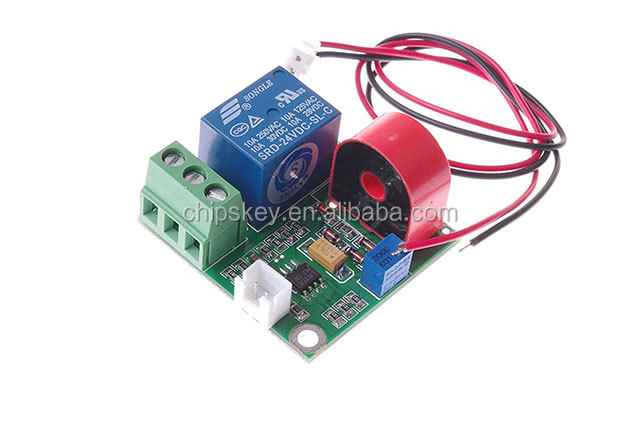

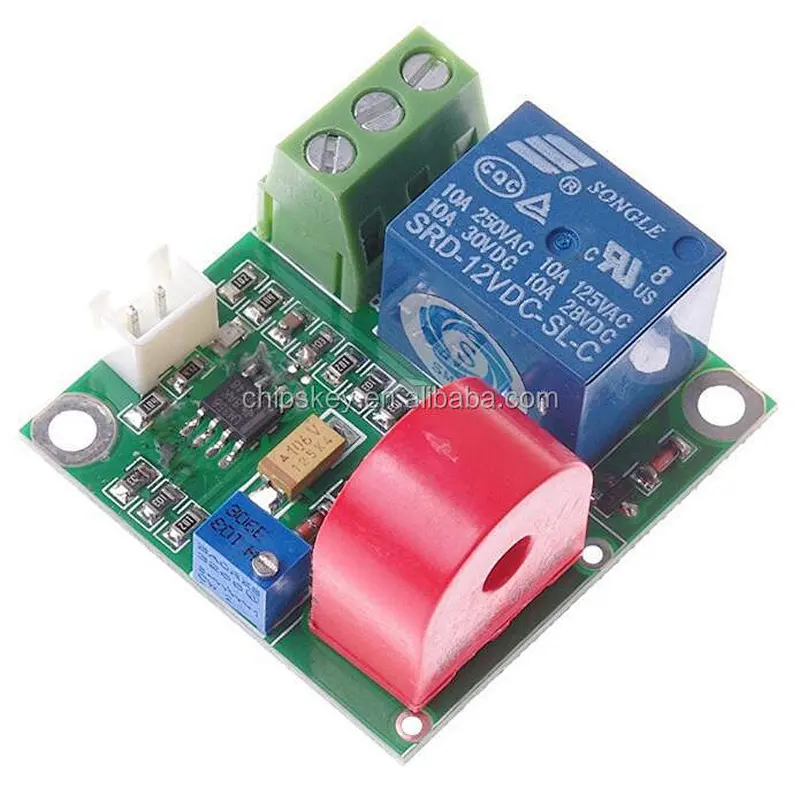

24V0-5A 0-5A AC current sensor module switch output sensor module

• Model Number:26019
• Type:Sensor Development Boards and Kits
• Place of Origin:China
• Part number:26019
• Brand:chipskey

24V0-5A 0-5A AC current sensor module switch output sensor module

Product description

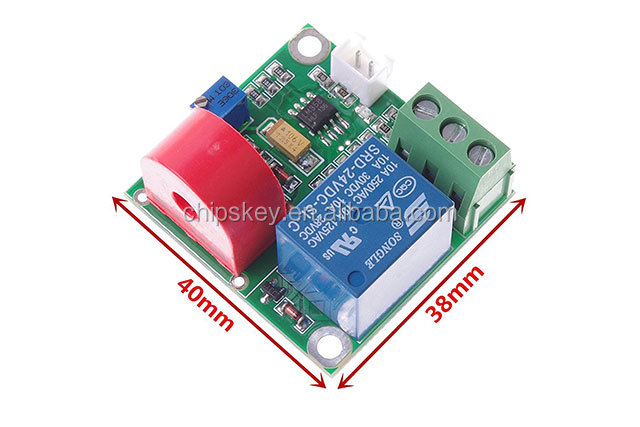

Dimensions: Length 40mmX width 38mm.
The main chip: operational amplifiers, transformers.
Operating voltage: DC 12V.

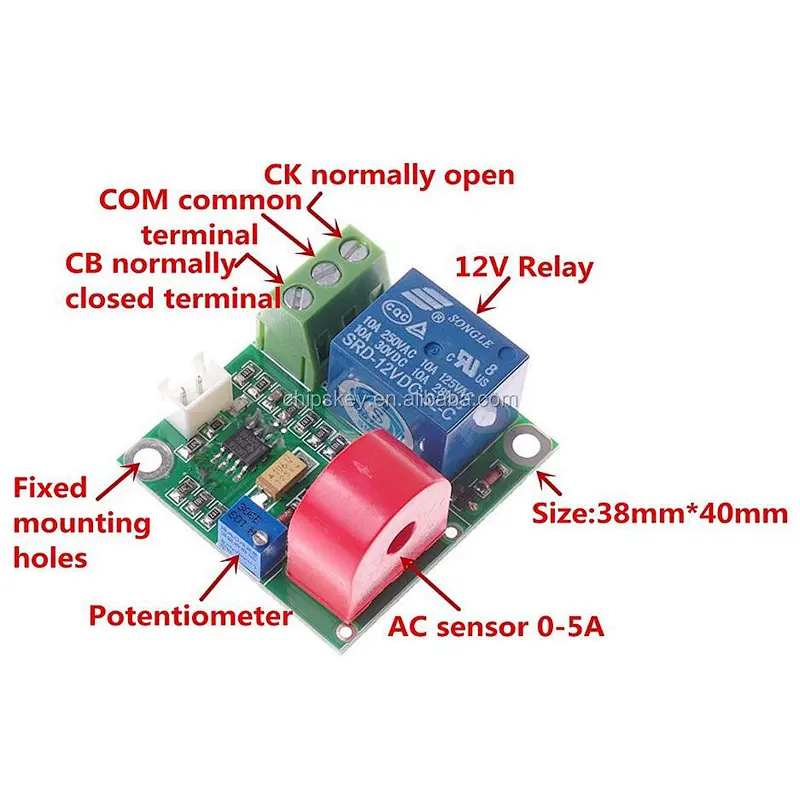

Features: *Output: Switch output.
Current detection range: AC 0-5A.
Current detection resolution can change the resistance parameter settings.
Output over-current switch signal output.
Over-current signal is adjustable to set the critical point, set the resolution 0.2A.
With mounting holes for easy firmware installation.
Applications: AC current equipment such as motor overcurrent detection, stall protection, short circuit protection testing, demonstration teaching experiments and so on occasion, to facilitate the secondary development; suitable for different loads, including inductive load, capacitive load, resistive load testing.
