- Model Number:28060
- Place of Origin:Guangdong, China
- Brand Name:Chipskey
- Delivery Time:24hours
- Quality:New&Original
- Application:Great for DIY project
- SKU:28060
- Stock:In Stock ,Can Ship out Immedicate

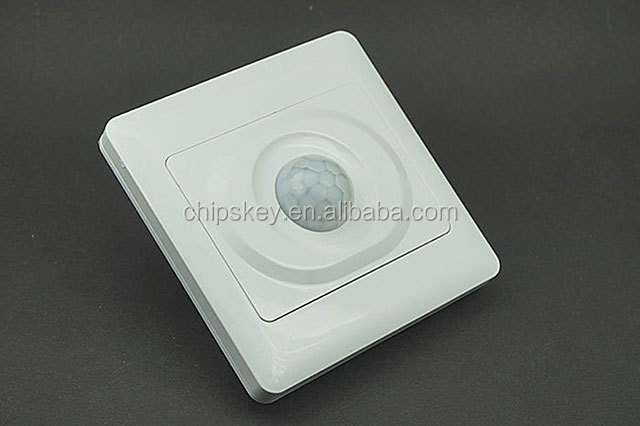

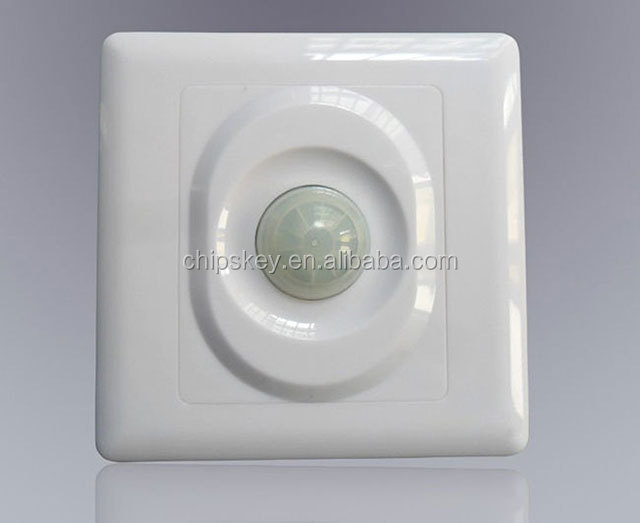

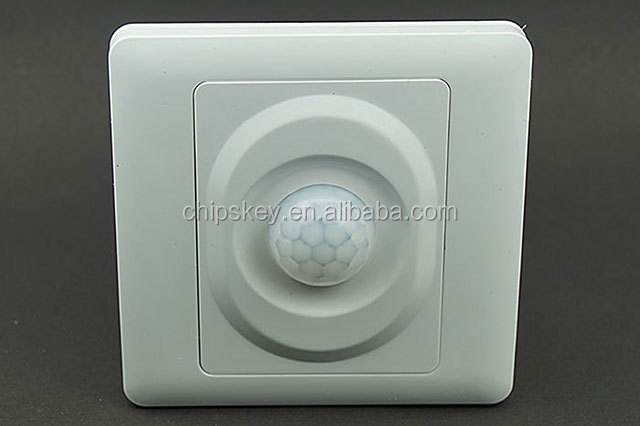

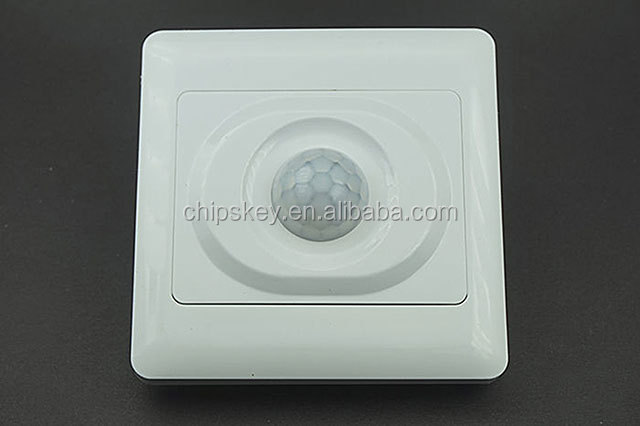

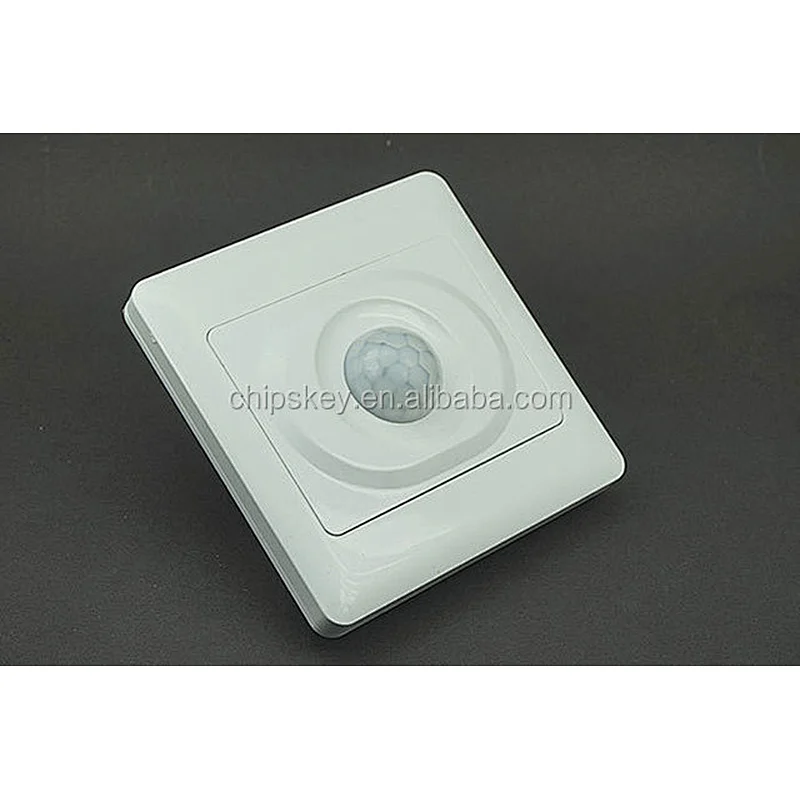

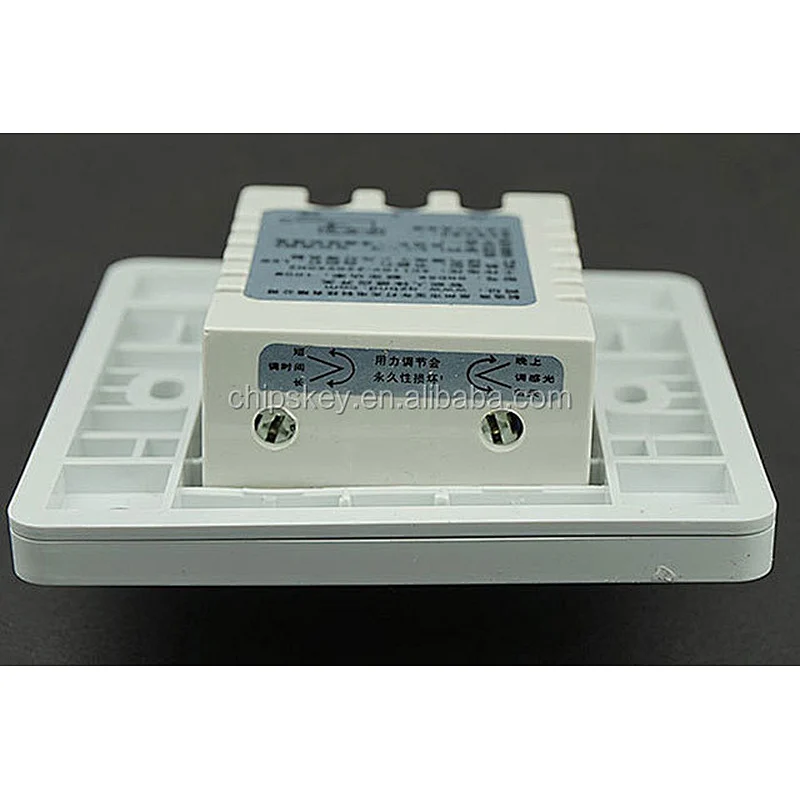

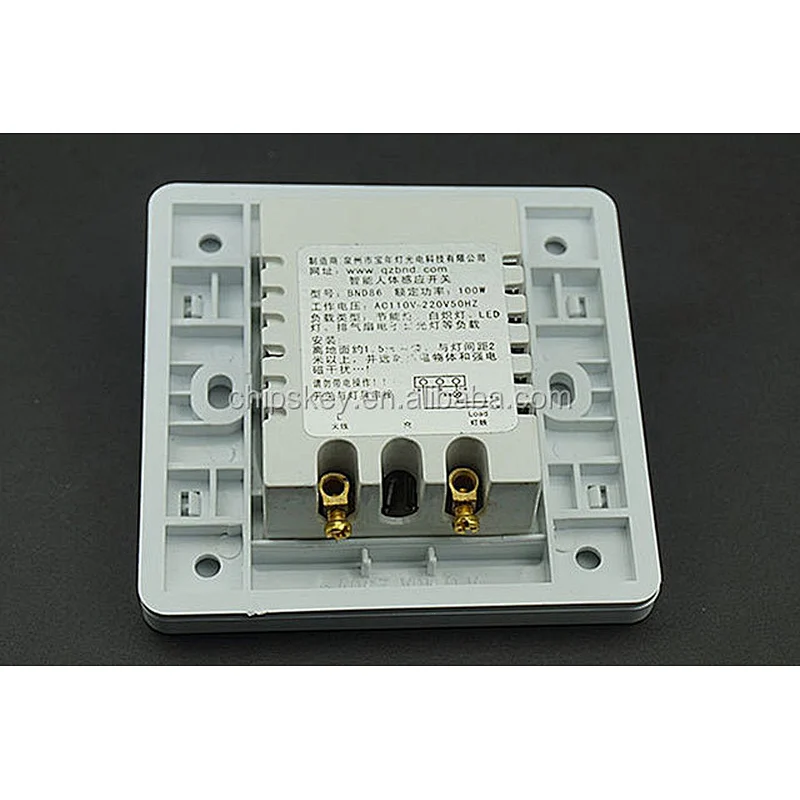

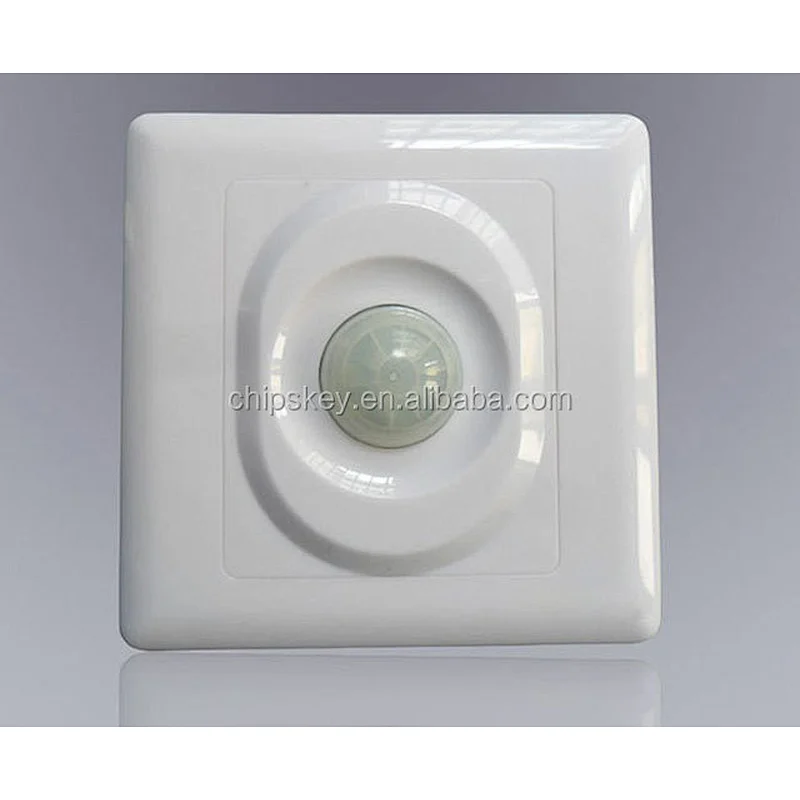

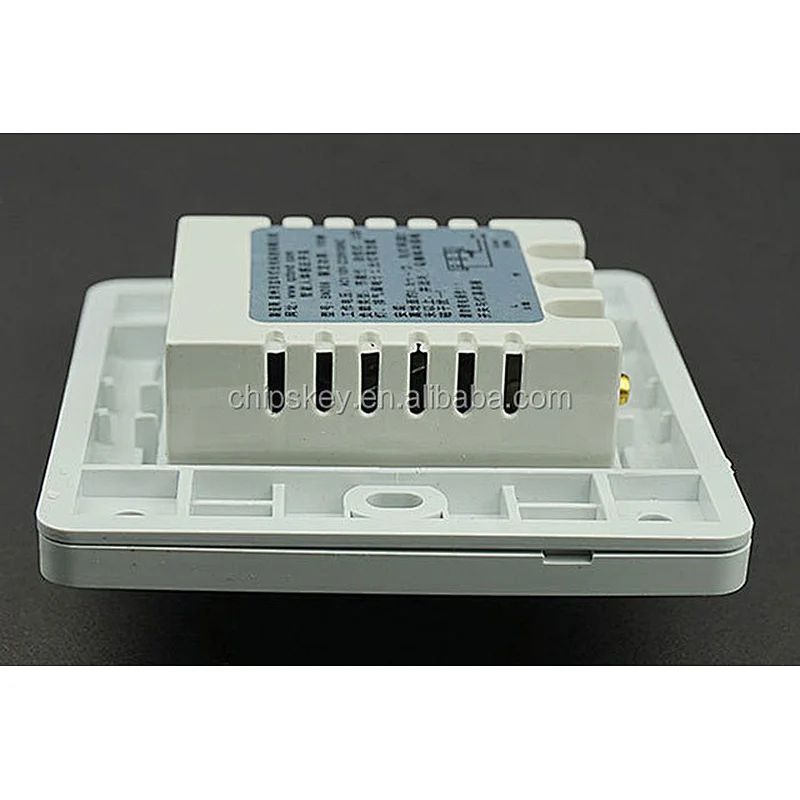

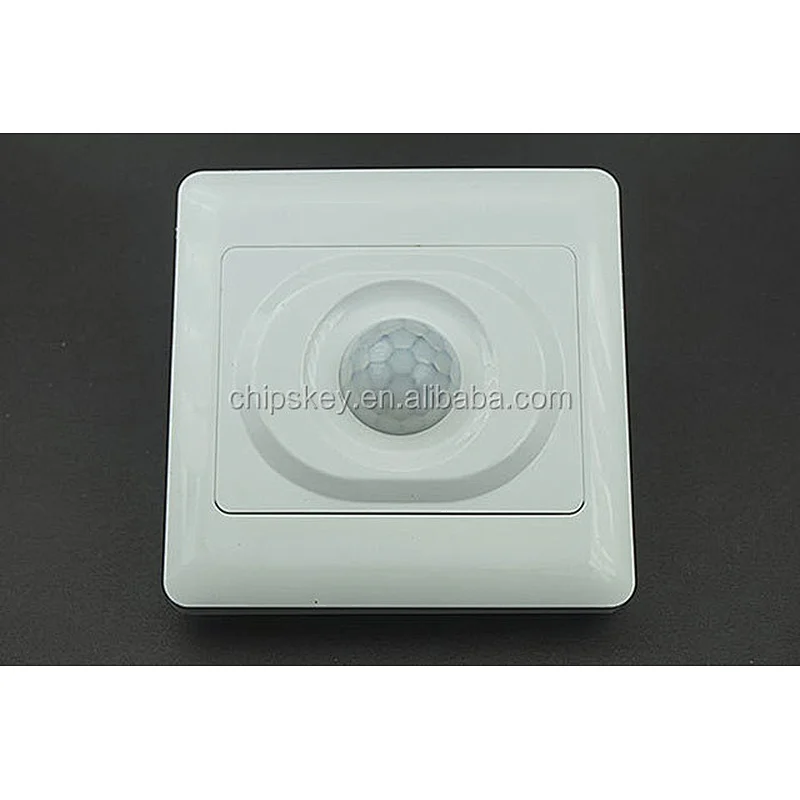

220V IR PIR Motion Senser Switch Module Body Control Switch Auto On Off Lamps Lights
Product Features:
Infrared technology based on automatic control products, when someone into the switch sense
Should the range, the special sensor to detect the human body infrared
Changes in the spectrum, the switch automatically connected to the load, people do not leave the sensing range
(People have activities), the switch will continue to be connected; after leaving,
The switch delay automatically closes the load. People to light, people off the light off,
Friendly, safe and energy efficient.
1. Unipolar design: with the ordinary wall switch (two-wire connection), and the load capacity of 200W.
2. Automatic sensor: people to switch immediately connected, people leave after the delay automatically shut down.
3. No contact electronic switch: connected to the moment the load without a large impact current, extended load life. No contact, no spark switch.
4. Automatic metering: light is not sensitive (factory settings), with a light adjustment (also adjustable in any light induction or all-day induction.
5. Automatic random delay (continuous delay mode): people in the induction range of activities, the switch is always connected until the person left after the automatic shutdown
(Optional). The delay time is adjustable.
6. Ultra-low power consumption: switch their own power consumption <0.0088W / h (annual power consumption <0.077 degrees), than other brands of similar products more energy-efficient ..
7. protection function: special protection device, which can effectively prevent and other instantaneous high voltage damage caused by the switch.
Technical Parameters
1. Operating voltage: 180V ~ 240V (50Hz / 60Hz), operating current ≤ 1A
2. Ambient temperature: -20 ℃ - + 50 ℃
3. Load type: fluorescent, energy saving lamps, incandescent and other types of load
4. Load power: 3W-200W
5. Output form: forward output (usually off, sensing open)
6. Sensing range: induction angle of 140 degrees cone angle, sensing distance of about 8 meters from the straight line
7. Delayed off time: factory set to 10 seconds or so, according to customer requirements set delay time
8. Sensing range icon: (wall installation, the ground height of about 1.5m)
