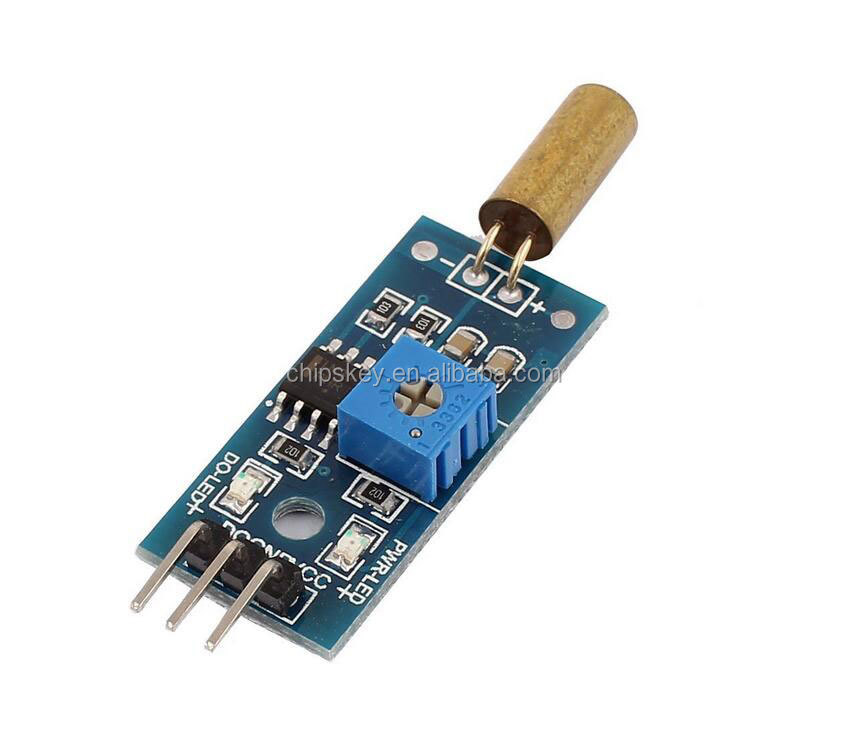

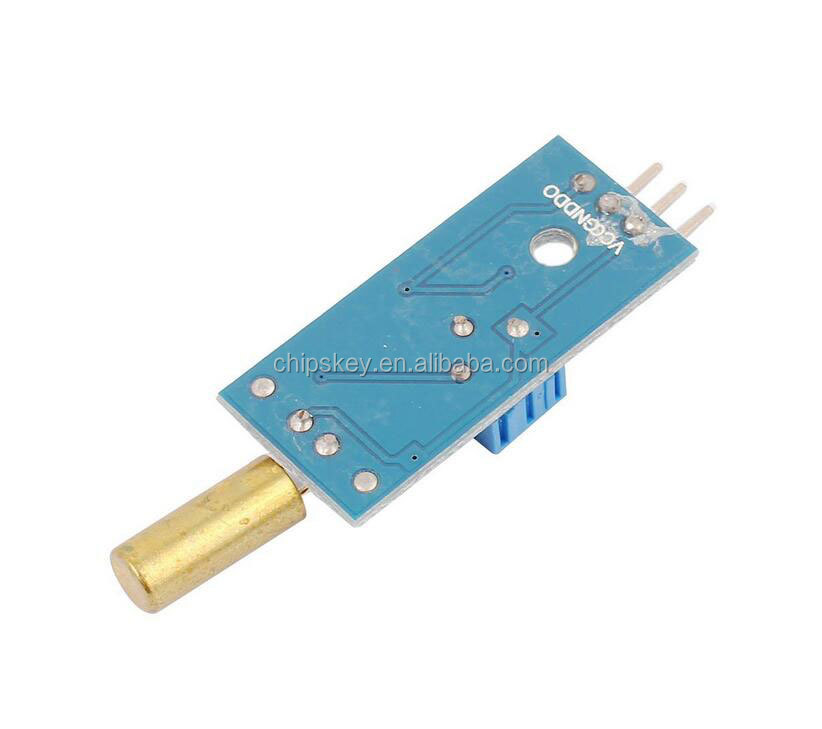

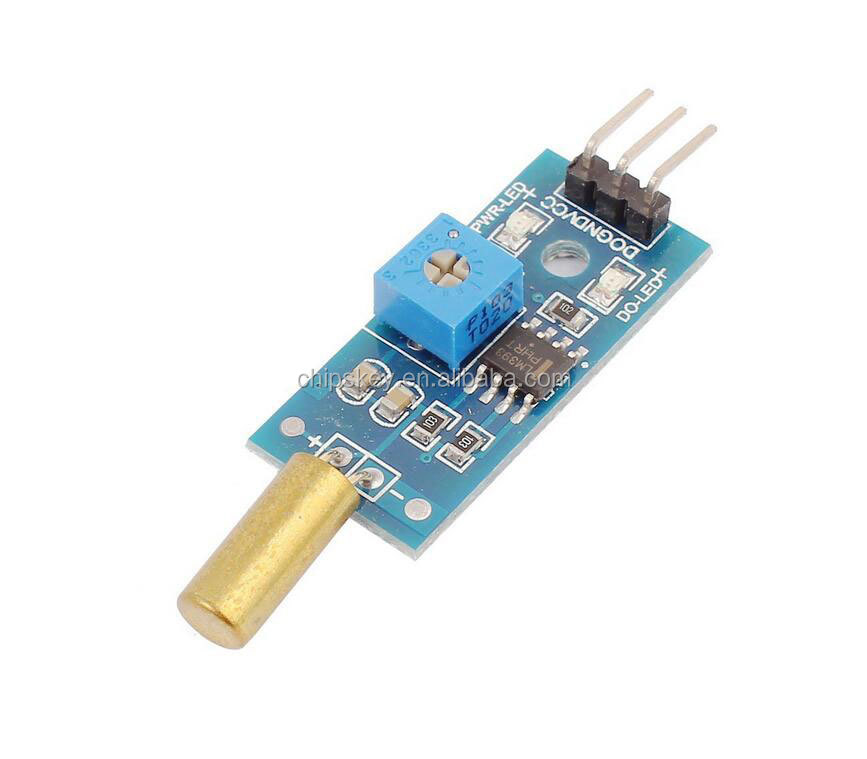

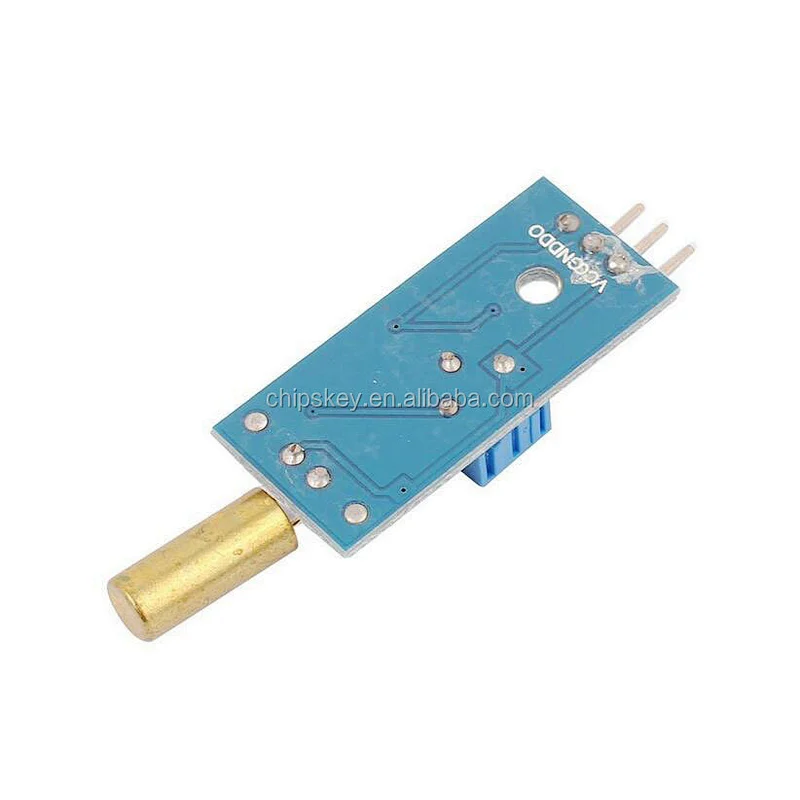

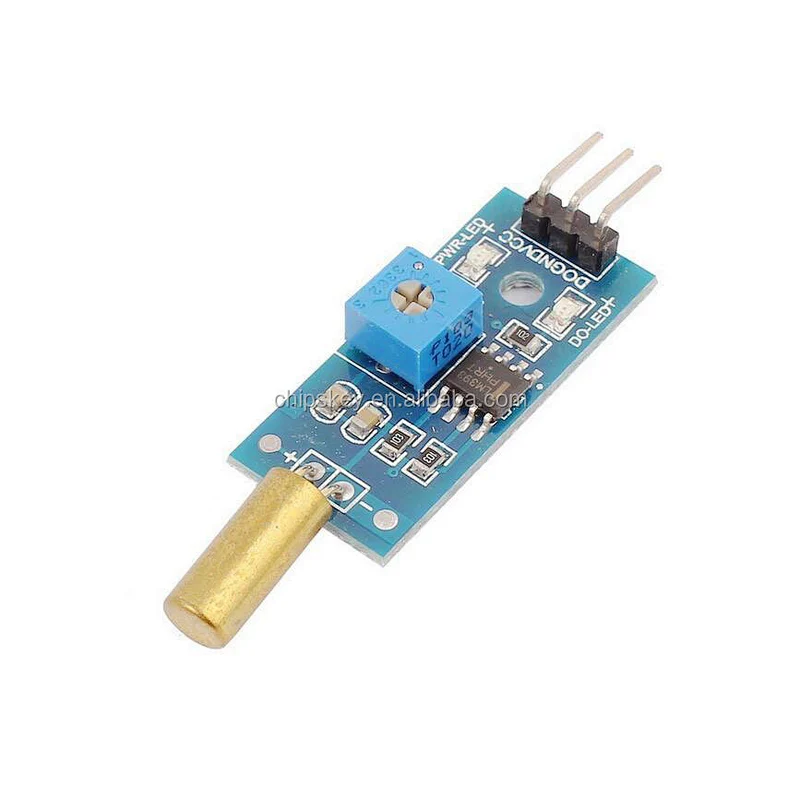

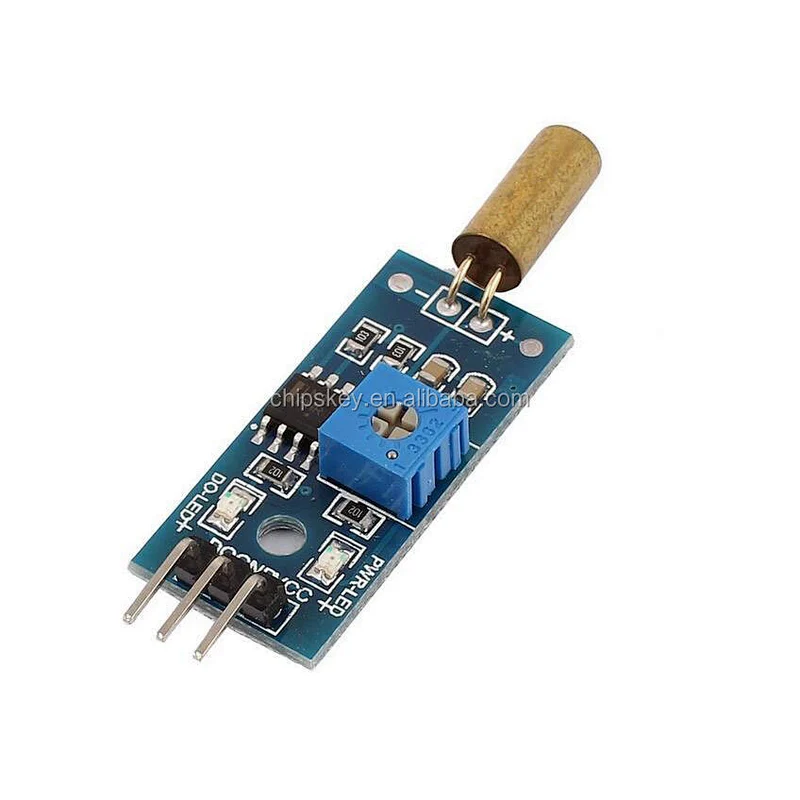

microcontroller tilt sensor module

• Model Number:2034
• Type:Sensor Development Boards and Kits
• Place of Origin:China
• Part number:2034
• Brand:Chipskey
• Category:Module

microcontroller tilt sensor module

Product description
Description:
Product tilt, dump trigger alarm, dump power sensor, tilt sensor
Features?
1.High sensitivity angle switch SW-520D as sensor
2.Comparator output, signal clean, good waveform, drive ability and more than 15mA
3.Operating voltage 3.3V-5V
4.Output type: digital switch output (0 and 1)
5.With a fixed bolt hole, easy to install
6.Using wide voltage LM393 comparator

Description:
1.The amount of switching output of the module depends on the angle switch on and off, when the angle switch is off, DO output high electricity level, angle switch on, DO output electricity low
2.The output can be directly connected with the microcontroller, through the microcontroller to detect high and low levels, which to detect the angle change
3.The output can directly drive the relay module, which can form a high-power angle switch, protection of electrical equipment and other products dumping automatic power off function
