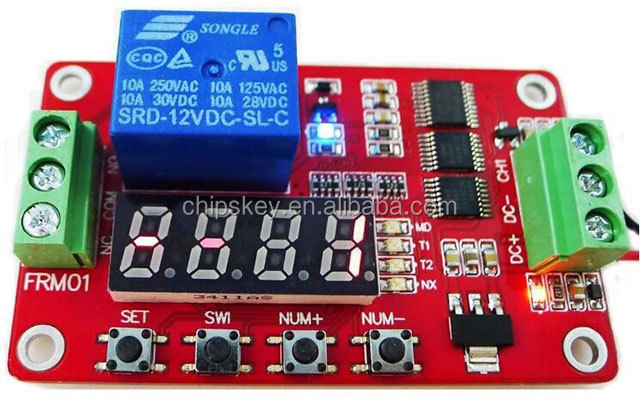

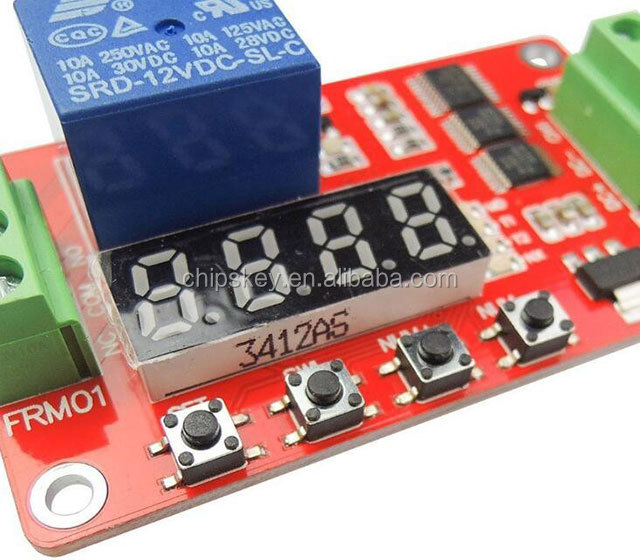

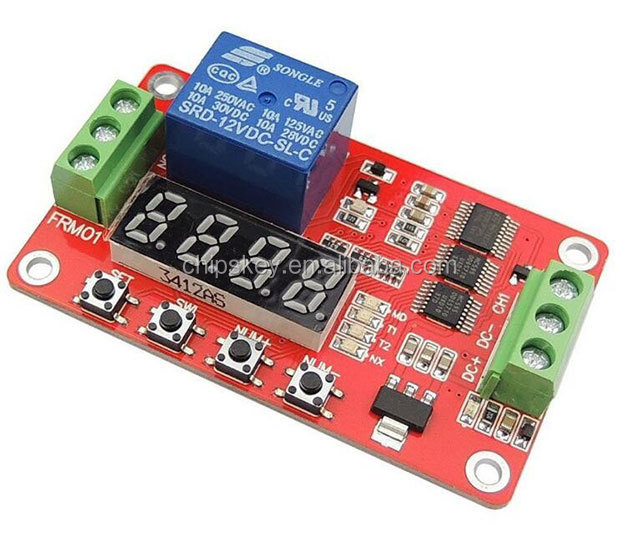

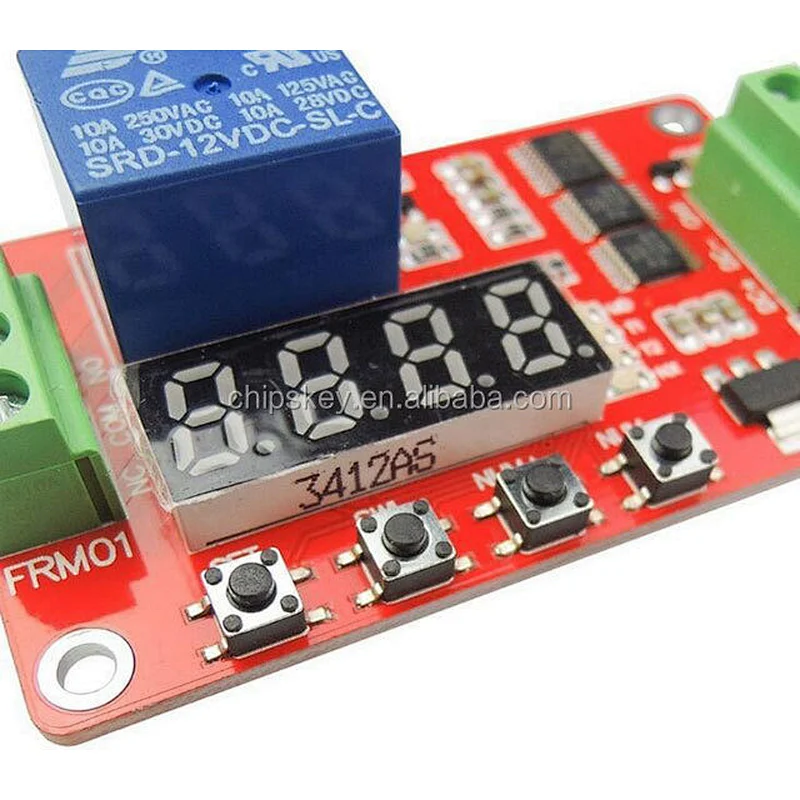

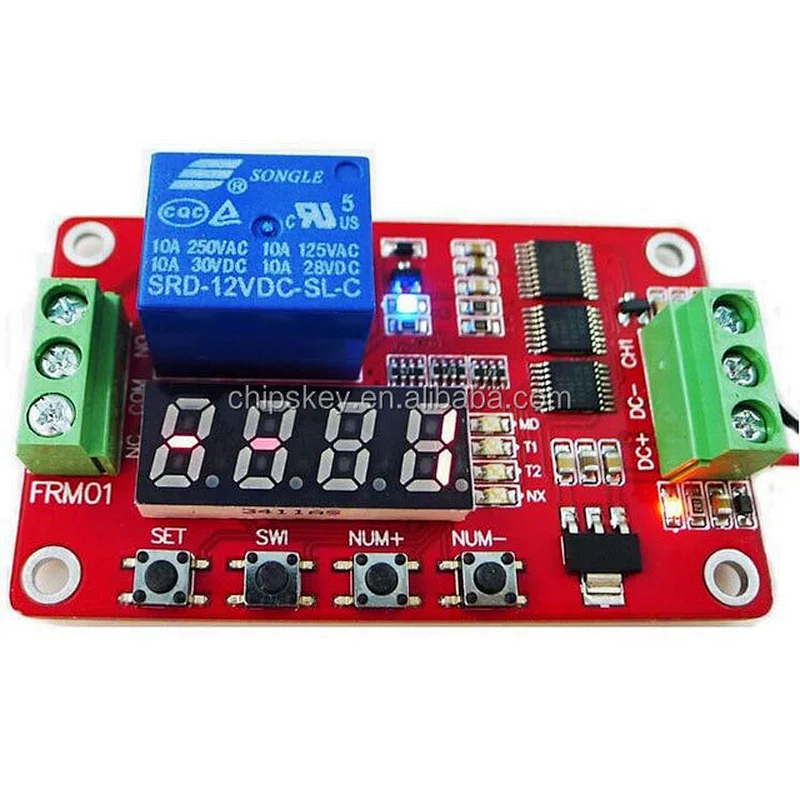

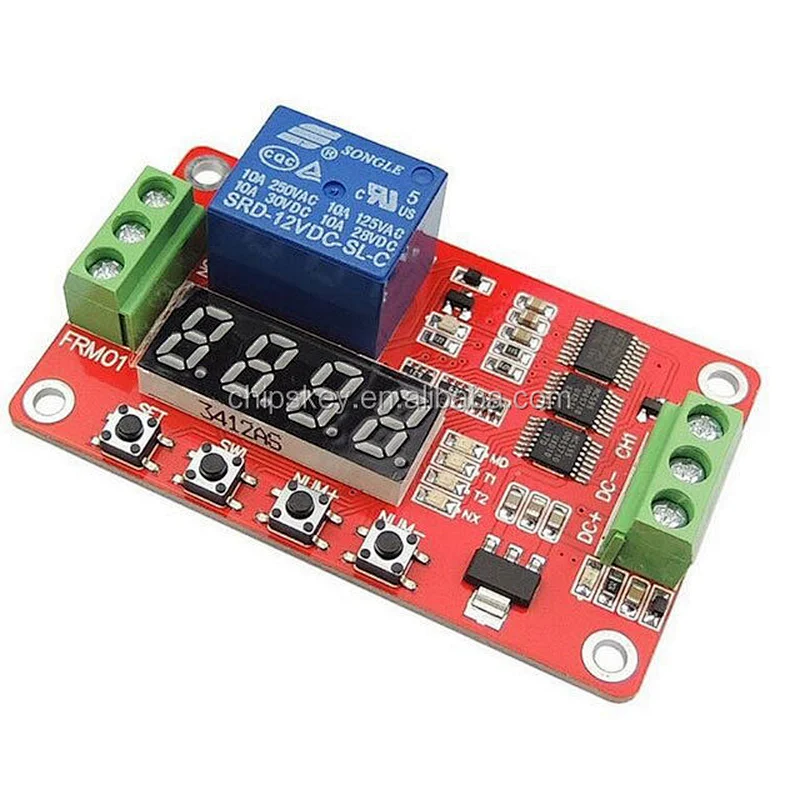

2 Channels 12V DC Multifunction Self-lock Relay PLC Cycle Timer Module Delay Time Switch

• Model Number:27080
• Type:Clock and Timing Development Boards and Kits
• Place of Origin:China
• Lead Time:During 24 Hours
• Packages:Original Pack

2 Channels 12V DC Multifunction Self-lock Relay PLC Cycle Timer Module Delay Time Switch
Product Description
Tips: Function 1-8 start automatically at power-up, the function 9-18 need high pulse signal (high duration is shorter than 20ms, hereinafter the same) trigger the start, the function 9 is a self-locking mode, the function 10 is level control mode.

Two module interface:
Relay outputs: a 3-wire interface, all interfaces are terminals
1------- NO: normally open relay interface, the relay becomes vacant before, pull shorting after the COM1
2---------COM: Common Interface Relays
3--------- NC: normally closed relay interface relay shorted before and COM1, pull vacant post
Load capacity: normally open port maximum load capacity: DC 0-30V/10A, AC 0-250V/10A
NC port maximum load capacity: DC 0-28V/10A, AC 0-125V/10A

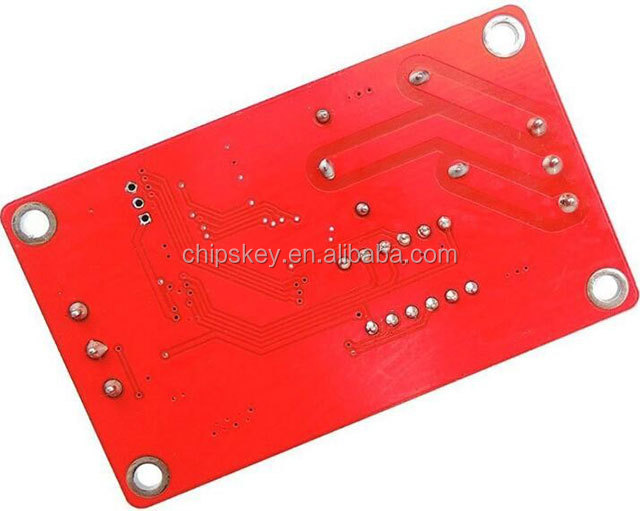

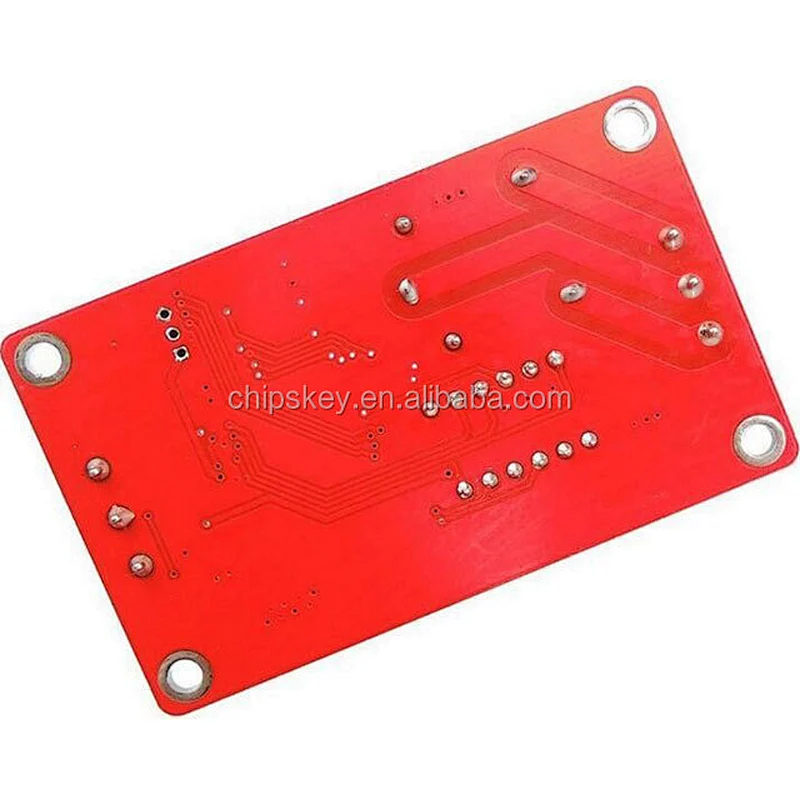

Dimensions: 4.0 * 6.6cm, screw 4, diameter 3.0mm
