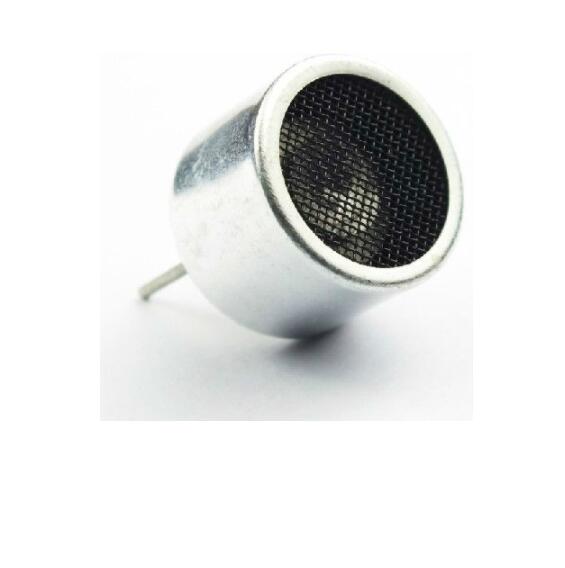

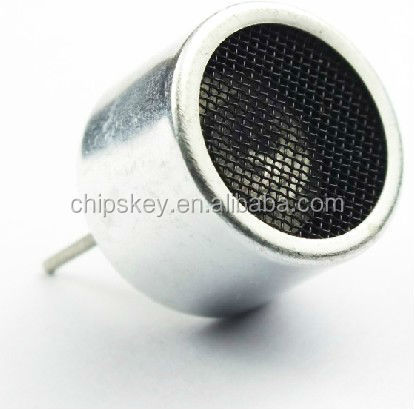

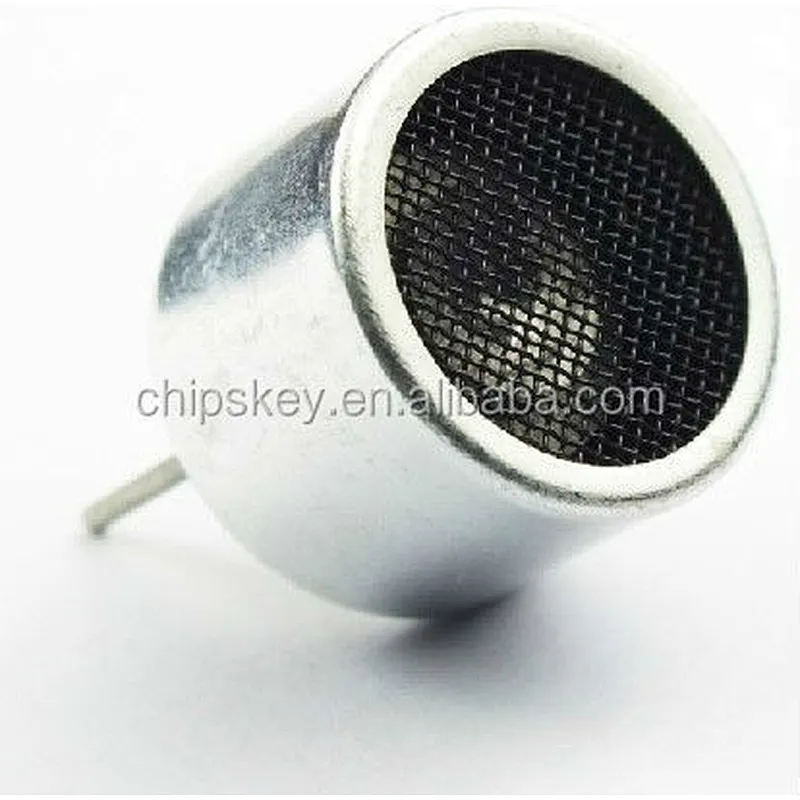

16MM 40KHZ integration ultrasonic Transceiver and Receiver double functions (Sender+receiver)

• Model Number:5049
• Place of Origin:Guangdong, China
• Brand Name:Chipskey
• Part number:5049
• Brand:Chipskey
• Category:Sensor

16MM 40KHZ integration ultrasonic Transceiver and Receiver double functions (Sender+receiver)

16MM integration ultrasonic Transceiver and Receiver double functions (Sender+receiver)

Pitch: 10MM

T is the Transistor. R is receiver.

(diameter 16mm)

   1 Nominal Frequency (KHz): 40KHz

   2 emission sound pressure at10V (0dB = 0.02mPa): ≥ 117dB

   3 receiver sensitivity at40KHz (0dB = V / ubar): ≥-65dB

   4 Capacitance at1KHz, <1V (PF): 2000 ± 30%


Using Method Transmitter
Construction Open structure type
Center frequency 40.0±1.0KHz
Sound pressure level 112dB min.
Sensitivity
Capacitance 2400Pf±20%
Maximum input voltage 60Vp-p
Directivity 60°±15° (-6dB)
Operating temperature -20°C~+70°C
Storage Temperature -40°C~+85°C
Weight 2.2g
